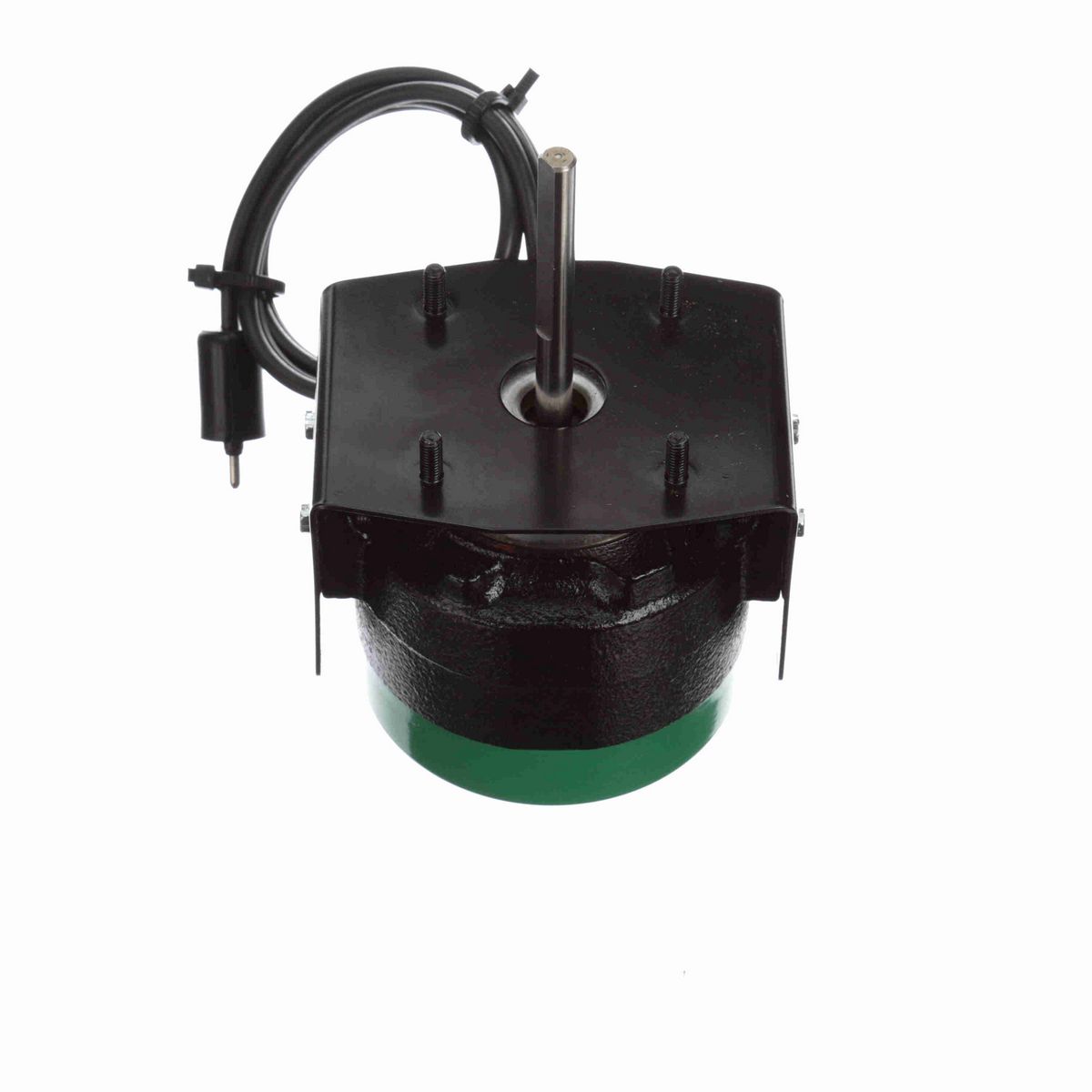

• iMotor™ - Refrigeration Motor
• Unit Bearing
• Electronically Commutated (ECM)
• Thermally Protected
• Totally Enclosed Air Over
• Class A Insulation, 40°C Ambient
• Bearing - Unit
• 5/16" Diameter Shaft with Flat
• 16" Leads with Molded Plug
• Extended Studs Shaft End

Nameplate Specifications

Phase	1
Output HP	1/15 Hp
Output KW	0.05 kW
Voltage	230 V
Speed	1550 rpm
Service Factor	1
Frame	UNIT BEARING
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	0.77 A
Duty	Continuous
Insulation Class	A
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Electronically Commutated Motor
Starting Method	Across The Line
Poles	4
Rotation	Clockwise Lead End
Mounting	Extended Studs
Drive End Bearing	Unit
Opp Drive End Bearing	Unit
Frame Material	Cast Iron
Shaft Type	Flat
Frame Length	3.20 in
Shaft Diameter	0.312 in
Shaft Extension	1.94 in

General Specifications

UPC	786674005571
Weight	4.00 LB
Packaged Length	8.14 IN
Packaged Width	6.87 IN
Packaged Height	6.87 IN
HTC	8501.10.6020
