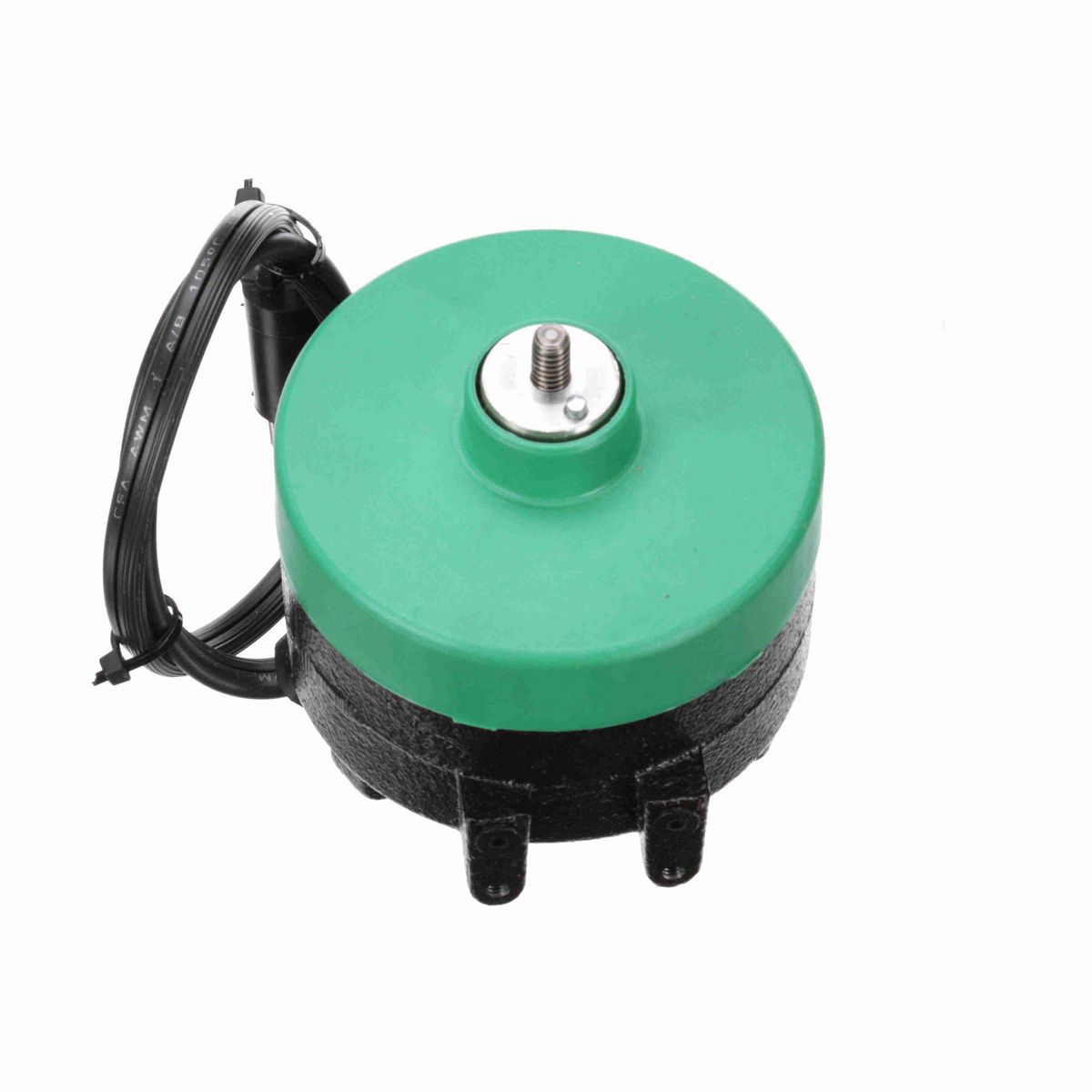

• iMotor™ - Refrigeration Motor
• Unit Bearing
• Electronically Commutated (ECM)
• Thermally Protected
• Totally Enclosed Air Over
• Class A Insulation, 40°C Ambient
• Bearing - Unit
• 1/4 x 20 Threaded Shaft
• 15" Leads with Molded Plug
• Tapped Double Boss, 5 Cored Holes Opposite Shaft End

Nameplate Specifications

Phase	1
Output Watts	6, 9, 12 W
Voltage	115 V
Speed	1550 rpm
Service Factor	1
Frame	UNIT BEARING
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	.2-.3 A
Duty	Continuous
Insulation Class	A
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Electronically Commutated Motor
Starting Method	Across The Line
Poles	4
Rotation	Clockwise Lead End
Mounting	2 BOSS/OSE 5 HOLES
Drive End Bearing	Unit
Opp Drive End Bearing	Unit
Frame Material	Cast Iron
Shaft Type	Threaded
Frame Length	3.72 in
Shaft Diameter	1/4x20 in
Shaft Extension	0.42 in

General Specifications

UPC	786674005526
Weight	3.00 LB
Packaged Length	7.15 IN
Packaged Width	6.46 IN
Packaged Height	6.87 IN
HTC	8501.10.4020
