• Automatic reset thermal protector

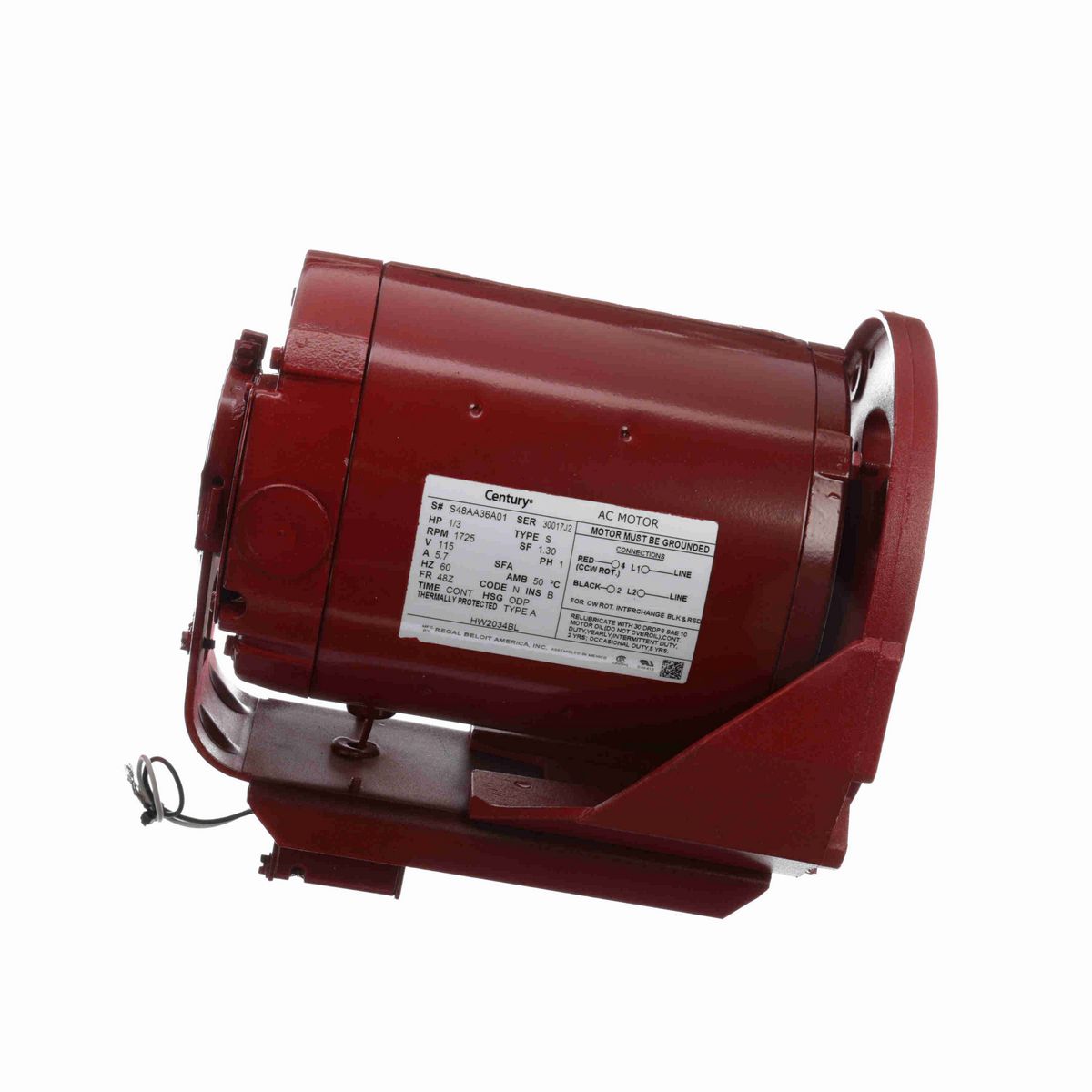

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Output KW	0.25 kW
Voltage	115 V
Speed	1725 rpm
Service Factor	1.30
Frame	48Z
Enclosure	Open Drip Proof
Thermal Protection	Automatic
Ambient Temperature	50 °C
Frequency	60 Hz
Current	5.7 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Split Phase
Starting Method	Across The Line
Poles	4
Rotation	Clockwise
Mounting	Resilient Base
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Spot Drill
Overall Length	8.96 in
Frame Length	5.59 in
Shaft Diameter	0.500 in
Shaft Extension	0.6 in

General Specifications

UPC	786674025357
Weight	17.00 LB
Packaged Length	10.88 IN
Packaged Width	10.81 IN
Packaged Height	9.81 IN
HTC	8501.40.4040
Country of Origin	Mexico
