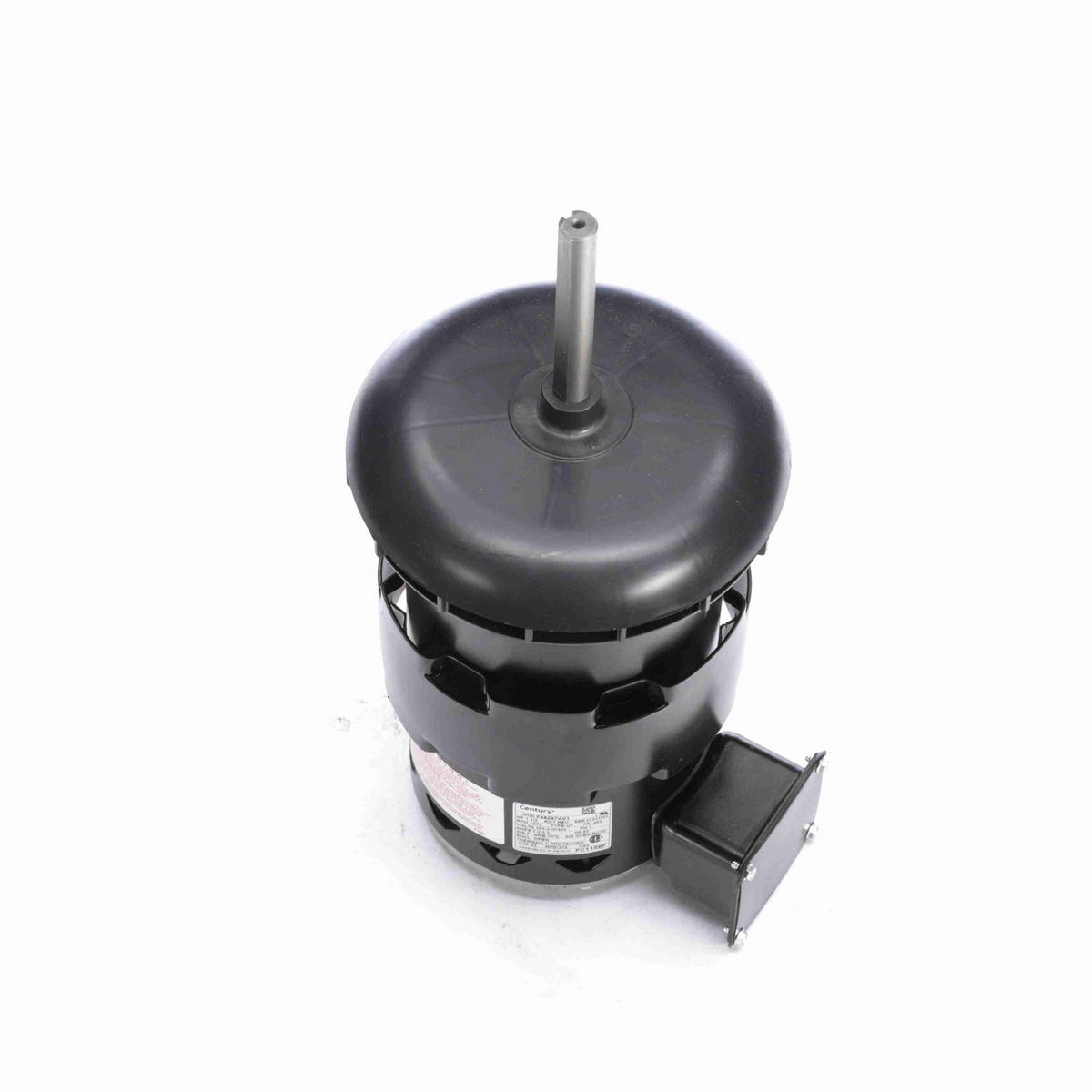

• HeatMaster - Commercial Condenser Fan Motor - Fan Canopy
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 25 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class F Insulation, 70°C Ambient
• Ball Bearing
• 5/8" Diameter Shaft with Flat and Keyway
• Conduit Box
• Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1 1/2 Hp
Output KW	1.1 kW
Voltage	200-230/460 V
Speed	1075 rpm
Service Factor	1
Frame	48Y
Enclosure	Open Air Over
Thermal Protection	Automatic
Ambient Temperature	70 °C
Frequency	60 Hz
Current	7.0/3.5 A
Duty	Air Over
Insulation Class	F
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Round Belly Band
Motor Orientation	Vertical Shaft Up
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	15.98 in
Frame Length	10.11 in
Shaft Diameter	0.600 in
Shaft Extension	4.1 in

General Specifications

UPC	786674020390
Weight	31.00 LB
Packaged Length	10.50 IN
Packaged Width	9.00 IN
Packaged Height	18.00 IN
HTC	8501.40.6040
Country of Origin	Mexico
