• Long lasting with Triple Seal™ protection to prevent water and debris intrustion
• Fast and easy installation with the open and accessible terminal board and wiring compartment
• Premium sealed 203 bearings both ends
• Definitive shaft access (7/16” wrench)
• Voltage change device
• Open dripproof
• Designed for optimal performance and efficiency
• Most durable and economical solution in the market today

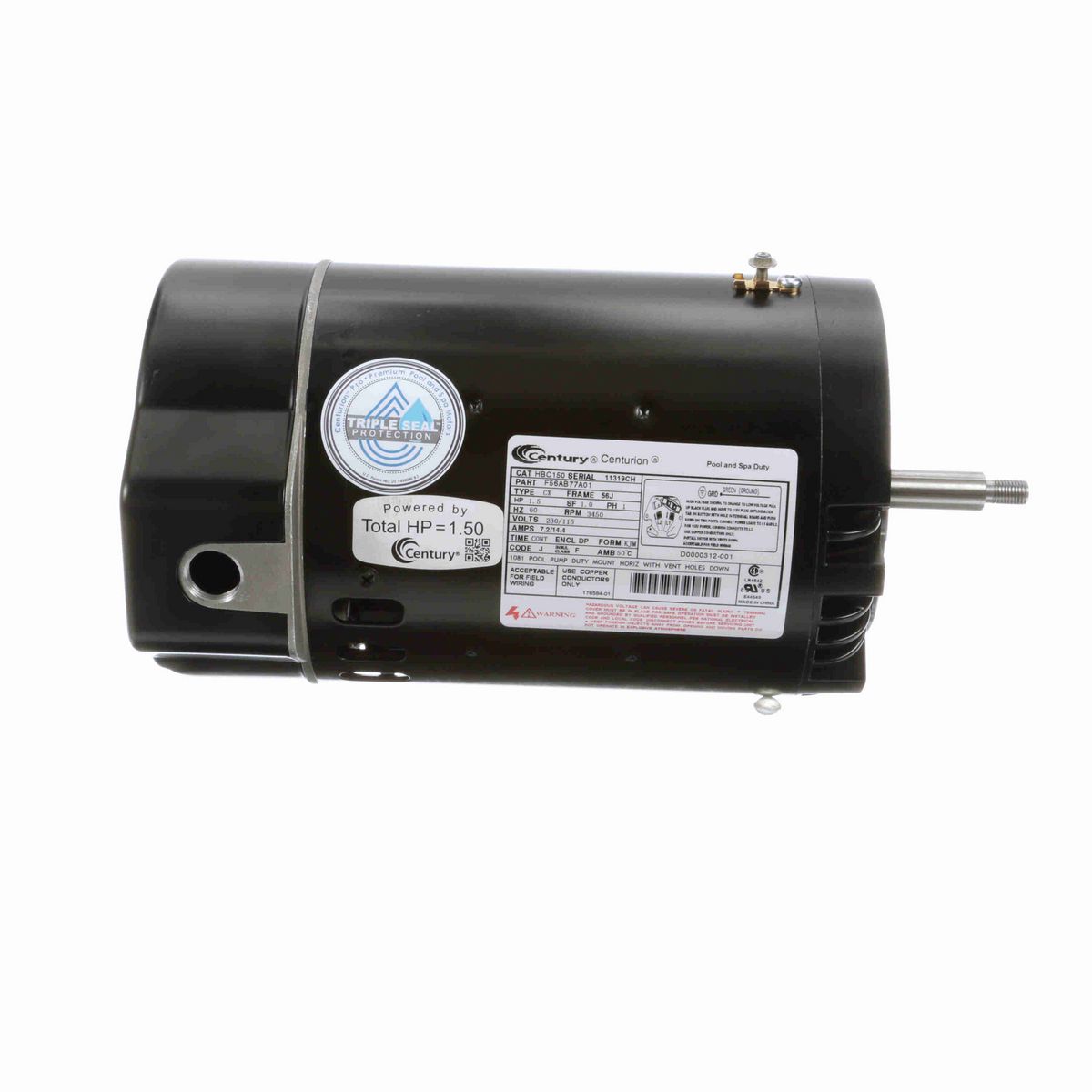

Nameplate Specifications

Phase	1
Output HP	1.5 Hp
Output KW	1.1 kW
Voltage	230/115 V
Speed	3450 rpm
Service Factor	1.0
Frame	M56J
Enclosure	Drip Proof
Thermal Protection	Thermally Protected
Ambient Temperature	50 °C
Frequency	60 Hz
Current	SF 7.2/14.4 A
Duty	Continuous
Insulation Class	F
UL	Recognized
CSA	Y
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor, Single Or Dual Voltage
Poles	2
Rotation	Counterclockwise Pump End
Mounting	Round
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Threaded
Frame Length	6.75 in
Shaft Diameter	0.625 in
Shaft Extension	2.57 in

General Specifications

UPC	786674071477
Weight	25.00 LB
Packaged Length	14.17 IN
Packaged Width	9.13 IN
Packaged Height	9.13 IN
Country of Origin	Thailand
