• Reversible
• Cushion ring, no base and C-face
• No protector

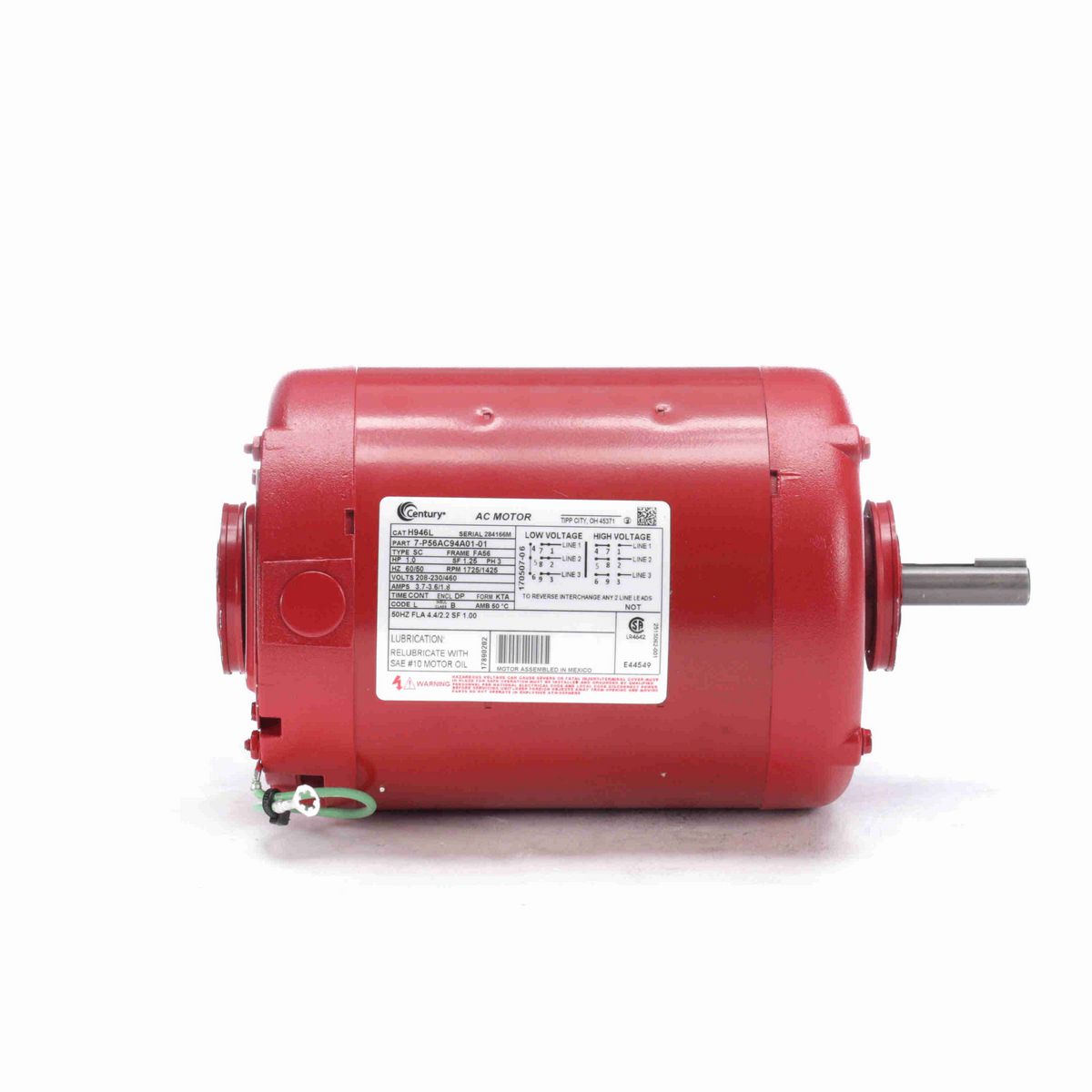

Nameplate Specifications

Phase	3
Output HP	1.0 Hp
Output KW	0.75 kW
Voltage	208-230/460 V
Speed	1725/1425 rpm
Service Factor	1.25
Frame	FA56None
Enclosure	Drip Proof
Thermal Protection	No Protection
Ambient Temperature	50 °C
Frequency	60/50 Hz
Current	3.7-3.6/1.8 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Polyphase, Induction Type, Single Or Dual Voltage
Starting Method	Across The Line
Poles	4
Rotation	Reversible Counterclockwise
Mounting	Cushion Ring
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	11.69 in
Frame Length	5.75 in
Shaft Diameter	0.625 in
Shaft Extension	1.94 in

General Specifications

UPC	786674057181
Weight	25.00 LB
Packaged Length	15.50 IN
Packaged Width	10.50 IN
Packaged Height	10.00 IN
HTC	8501.52.4000
Country of Origin	Mexico
