• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Permanently lubricated sealed bearings extend the lifetime of the motor.
• Heavy-duty, rolled steel construction ensures motor durability.

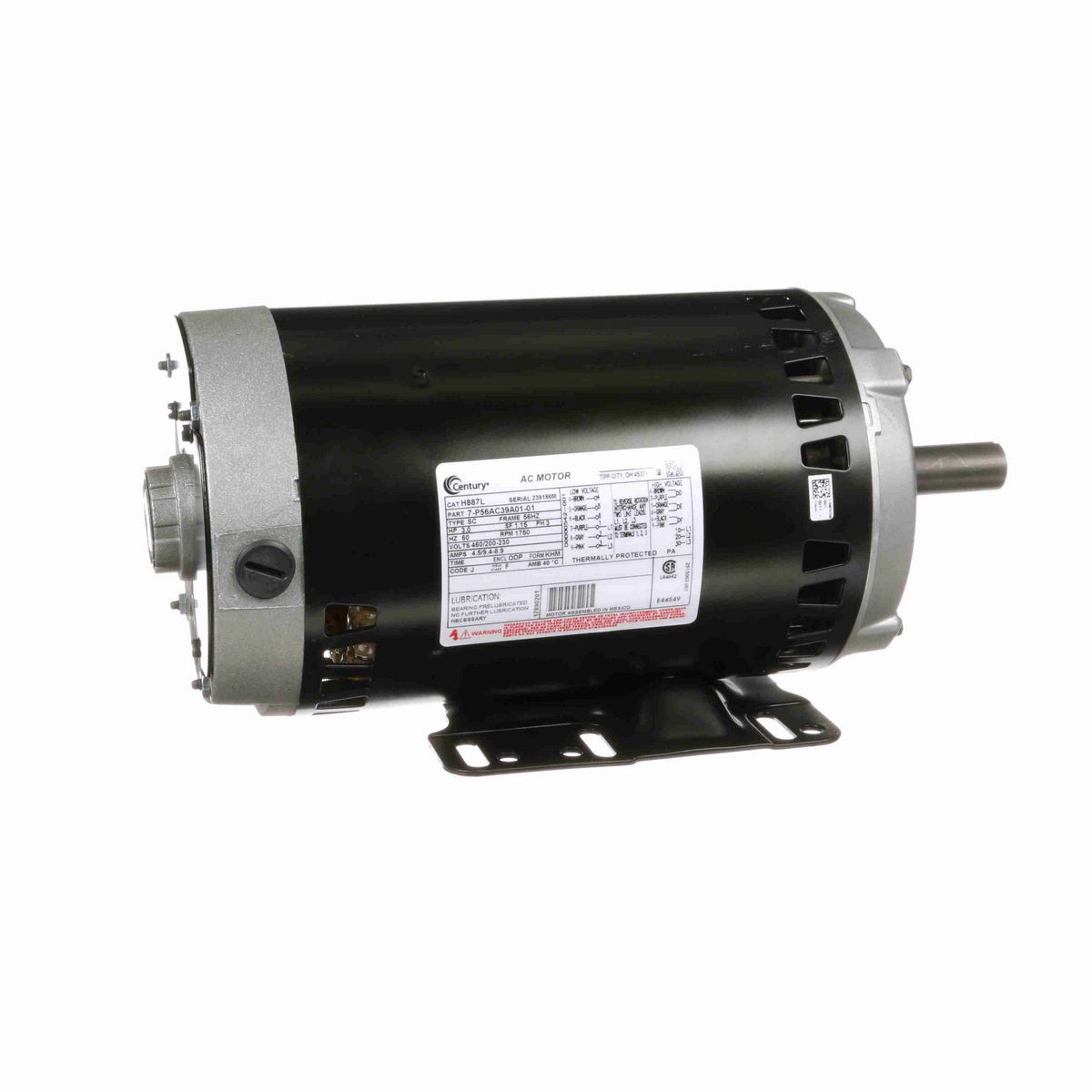

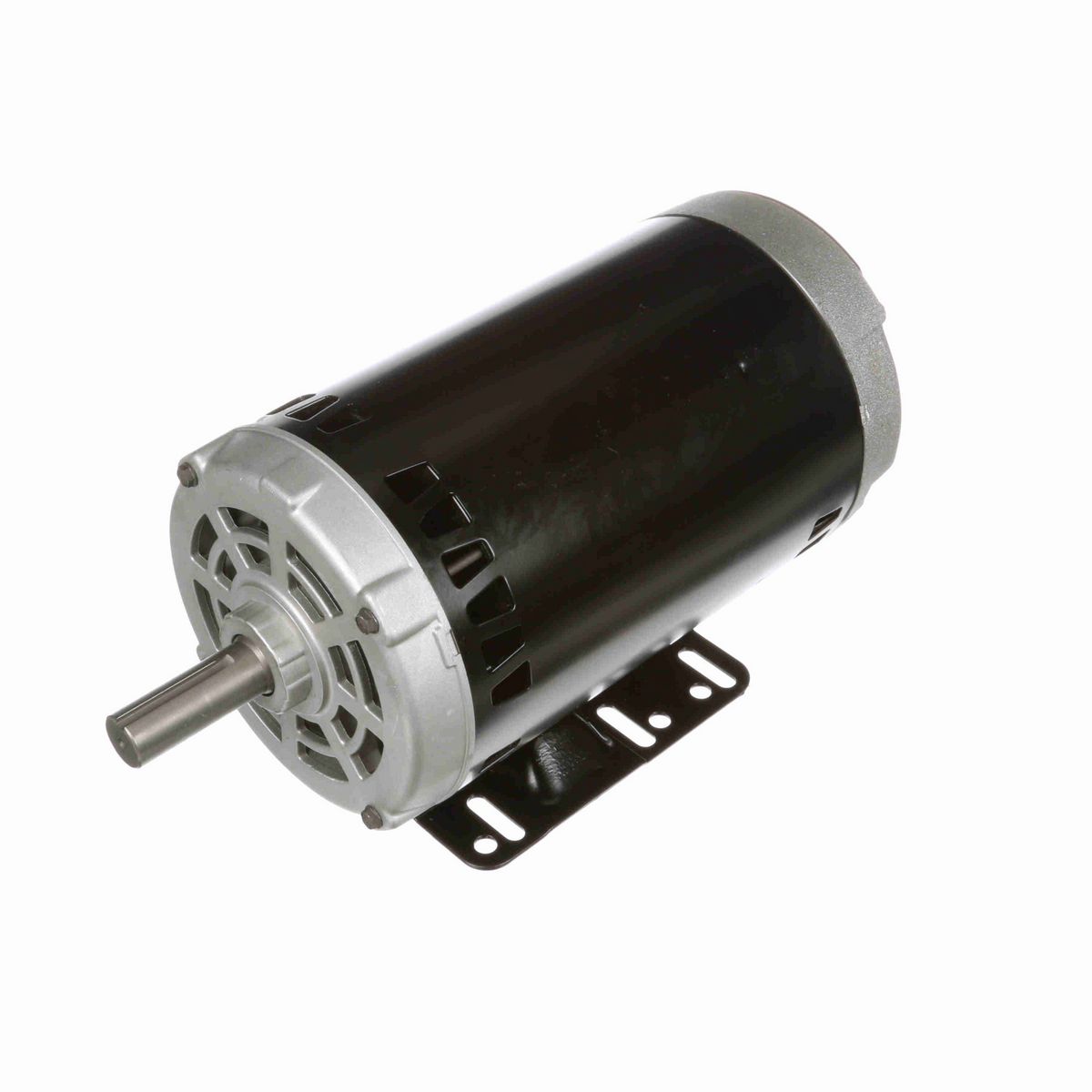

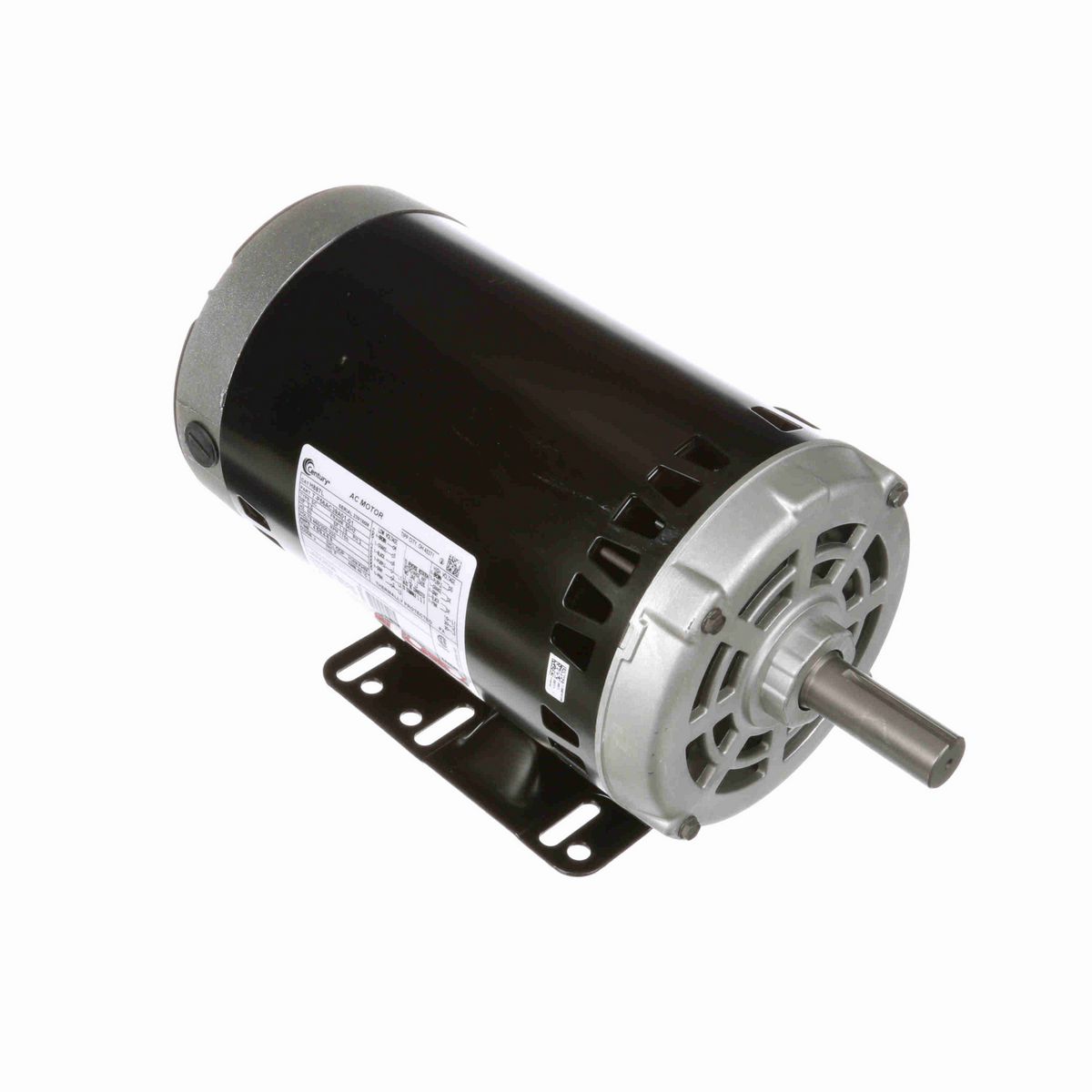

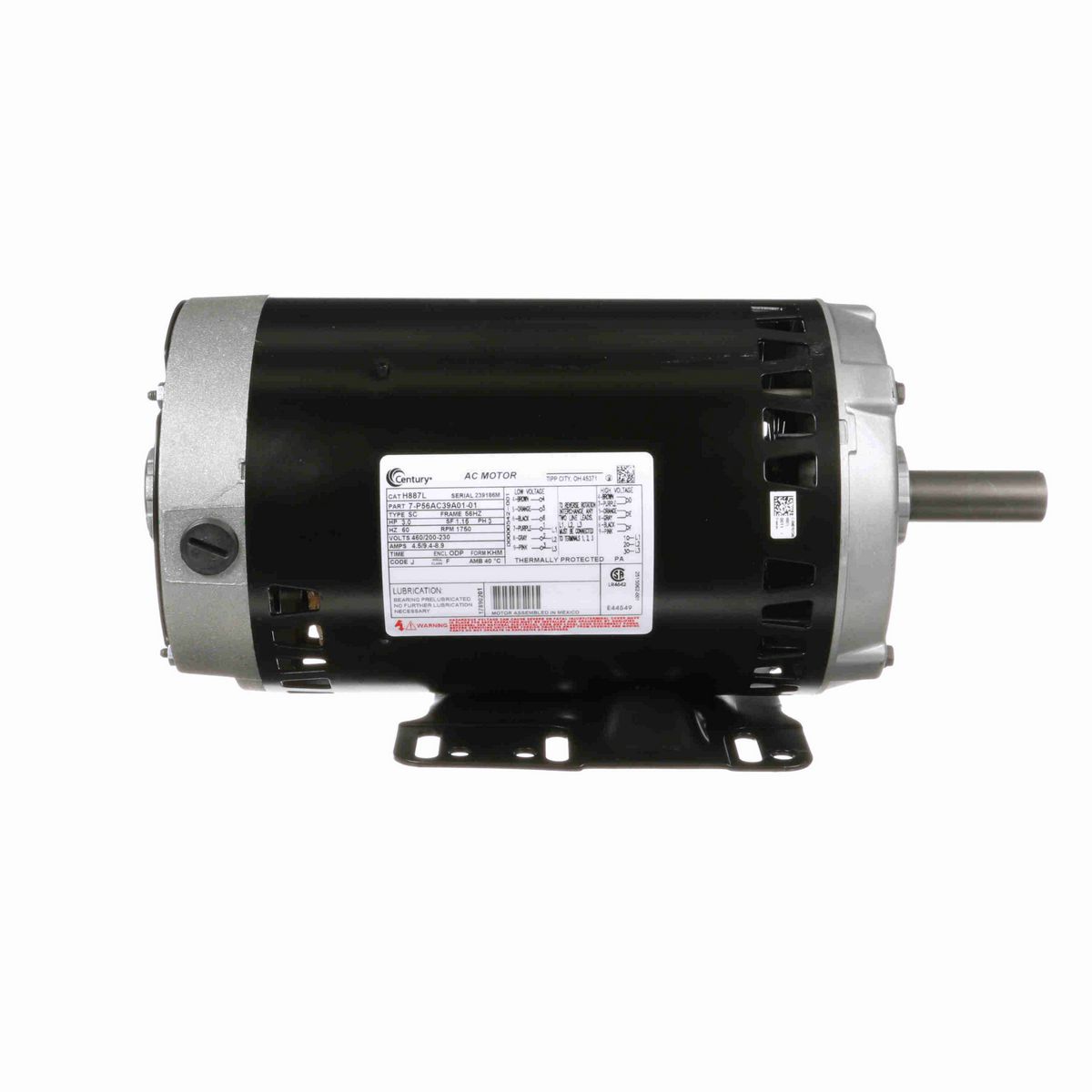

Nameplate Specifications

Phase	3
Output HP	3.0 Hp
Output KW	2.2 kW
Voltage	230/460 V
Speed	1750 rpm
Service Factor	1
Frame	56HZ
Enclosure	Open Drip Proof
Thermal Protection	Thermally Protected
Efficiency	78.5 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	9/4.5 A
Duty	Continuous
Insulation Class	F
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Polyphase, Induction Type, Single Or Dual Voltage
Starting Method	Across The Line
Poles	4
Rotation	Reversible Counterclockwise
Mounting	Rigid Base
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	14.56 in
Frame Length	8.75 in
Shaft Diameter	0.875 in
Shaft Extension	2.31 in

General Specifications

UPC	786674056139
Weight	43.00 LB
Packaged Length	19.00 IN
Packaged Width	8.00 IN
Packaged Height	11.00 IN
HTC	8501.52.4000
Country of Origin	Mexico
