• Mechanically locked bearing on shaft end
• Double sealed ball bearings
• Keyed shaft

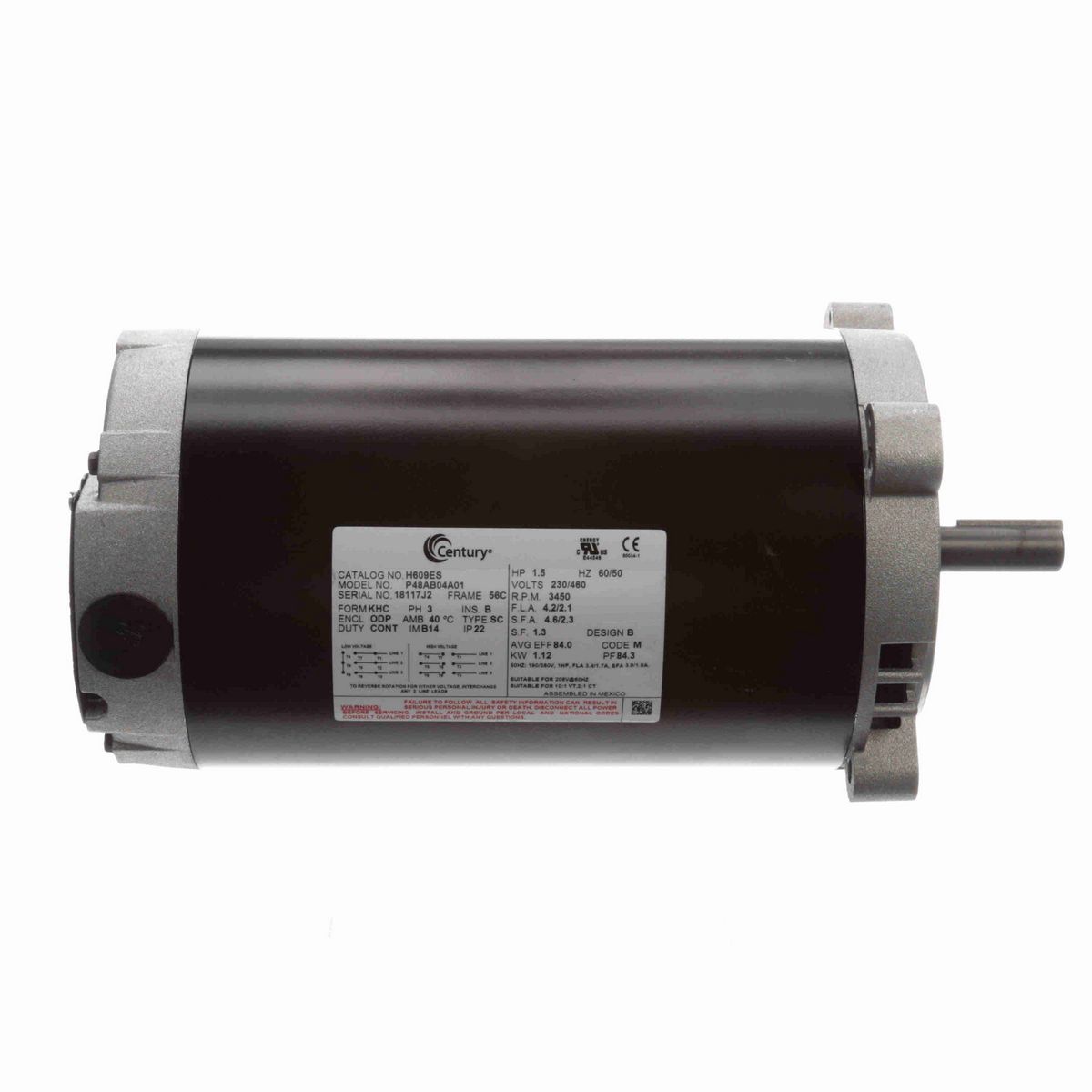

• Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	3
Output HP	1.50 Hp
Output KW	1.1 kW
Voltage	230/460 V
Speed	3450 rpm
Service Factor	1.3
Frame	56C
Enclosure	Open Drip Proof
Thermal Protection	No Protection
Efficiency	84.0 %
Ambient Temperature	40 °C
Frequency	60/50 Hz
Current	4.2/2.1 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	N
CE	Y
Number of Speeds	1

Technical Specifications

Electrical Type	Polyphase, Induction Type, Single Or Dual Voltage
Starting Method	Across The Line
Poles	2
Rotation	Clockwise/Counterclockwise
Mounting	Round
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	12.46 in
Frame Length	8.01 in
Shaft Diameter	0.625 in
Shaft Extension	2.07 in

General Specifications

UPC	786674071163
Weight	25.00 LB
Packaged Length	16.00 IN
Packaged Width	8.00 IN
Packaged Height	10.00 IN
HTC	8501.52.4000
Country of Origin	Mexico
