• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Heavy-duty, rolled steel construction ensures motor durability.
• Continuous air over duty design allows consistent operation at the rated power. specifications
• Double-shielded bearings extend the service life of the motor.

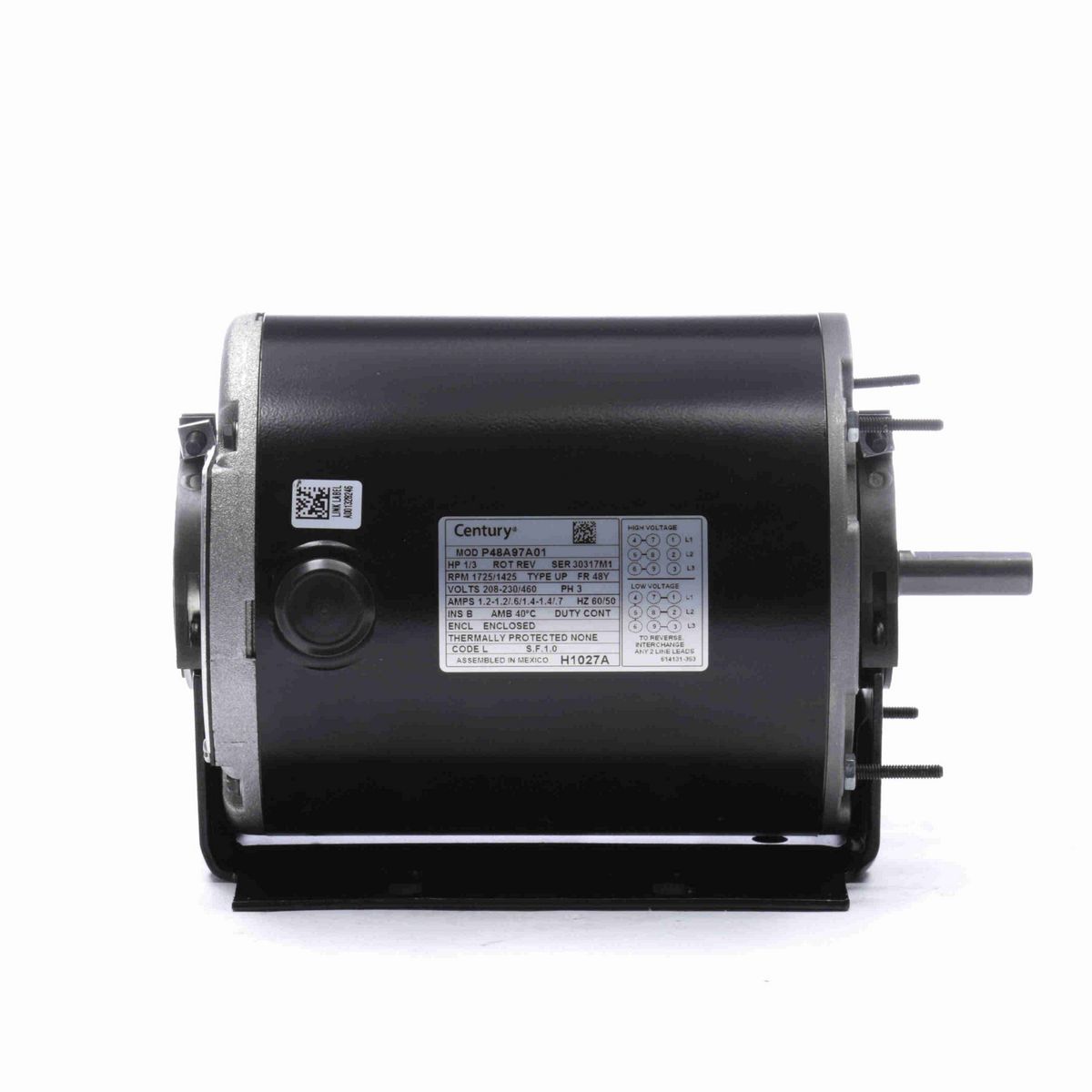

Nameplate Specifications

Phase	3
Output HP	1/3 Hp
Output KW	0.25 kW
Voltage	208-230/460 V
Speed	1725/1425 rpm
Service Factor	1
Frame	48Y
Enclosure	Totally Enclosed Air Over
Thermal Protection	No Protection
Ambient Temperature	40 °C
Frequency	60 Hz
Current	1.2-1.2/.6,1.4-1.4/.7 A
Duty	Air Over
Insulation Class	B
UL	No
CSA	N
CE	N
Number of Speeds	2

Technical Specifications

Electrical Type	Three Phase
Starting Method	Across The Line
Poles	4
Rotation	Reversible
Mounting	Resilient Base
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	9.20 in
Frame Length	6.00 in
Shaft Diameter	0.500 in
Shaft Extension	1.97 in

General Specifications

UPC	786674022462
Weight	17.00 LB
Packaged Length	13.00 IN
Packaged Width	7.00 IN
Packaged Height	7.00 IN
HTC	8501.51.4040
Country of Origin	Mexico
