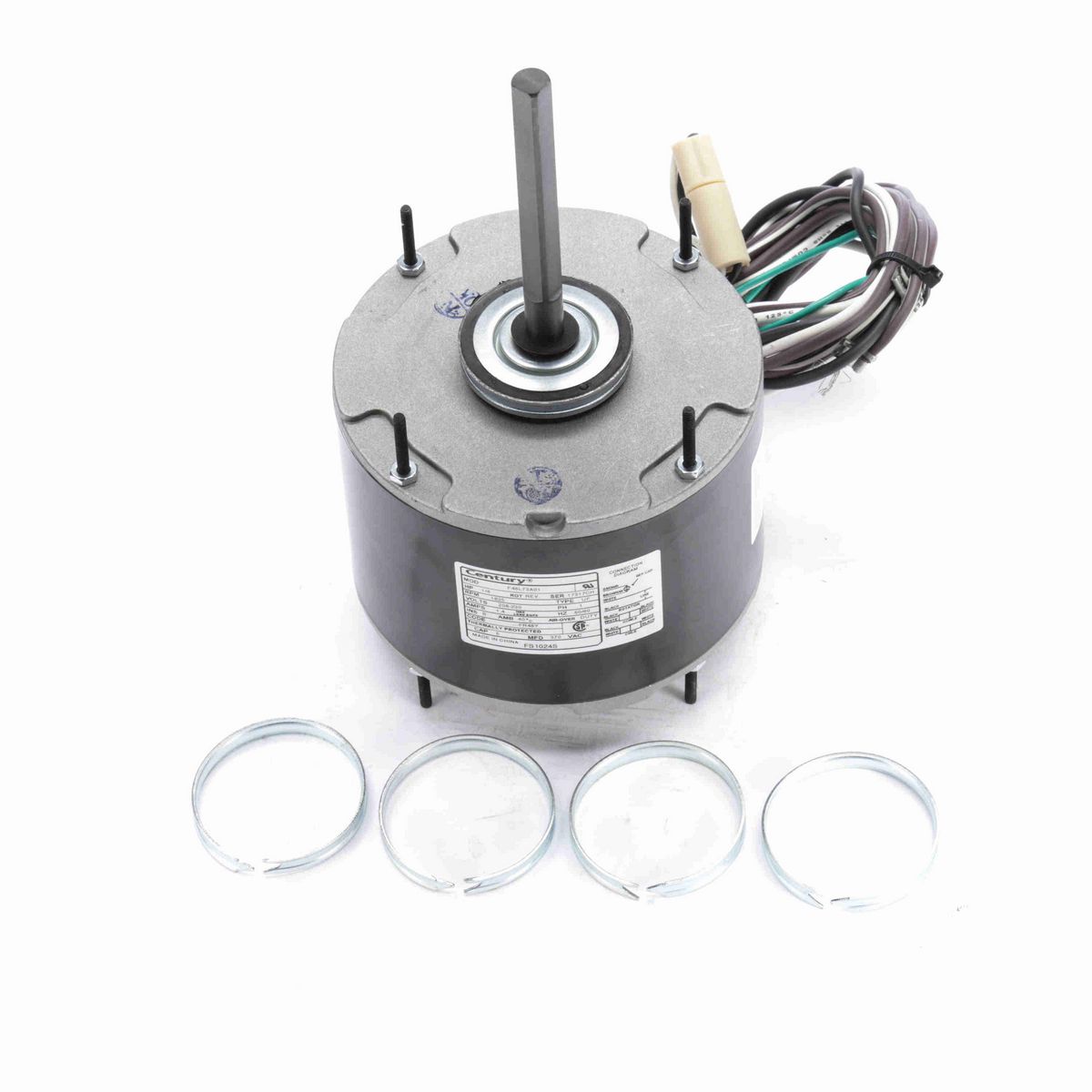

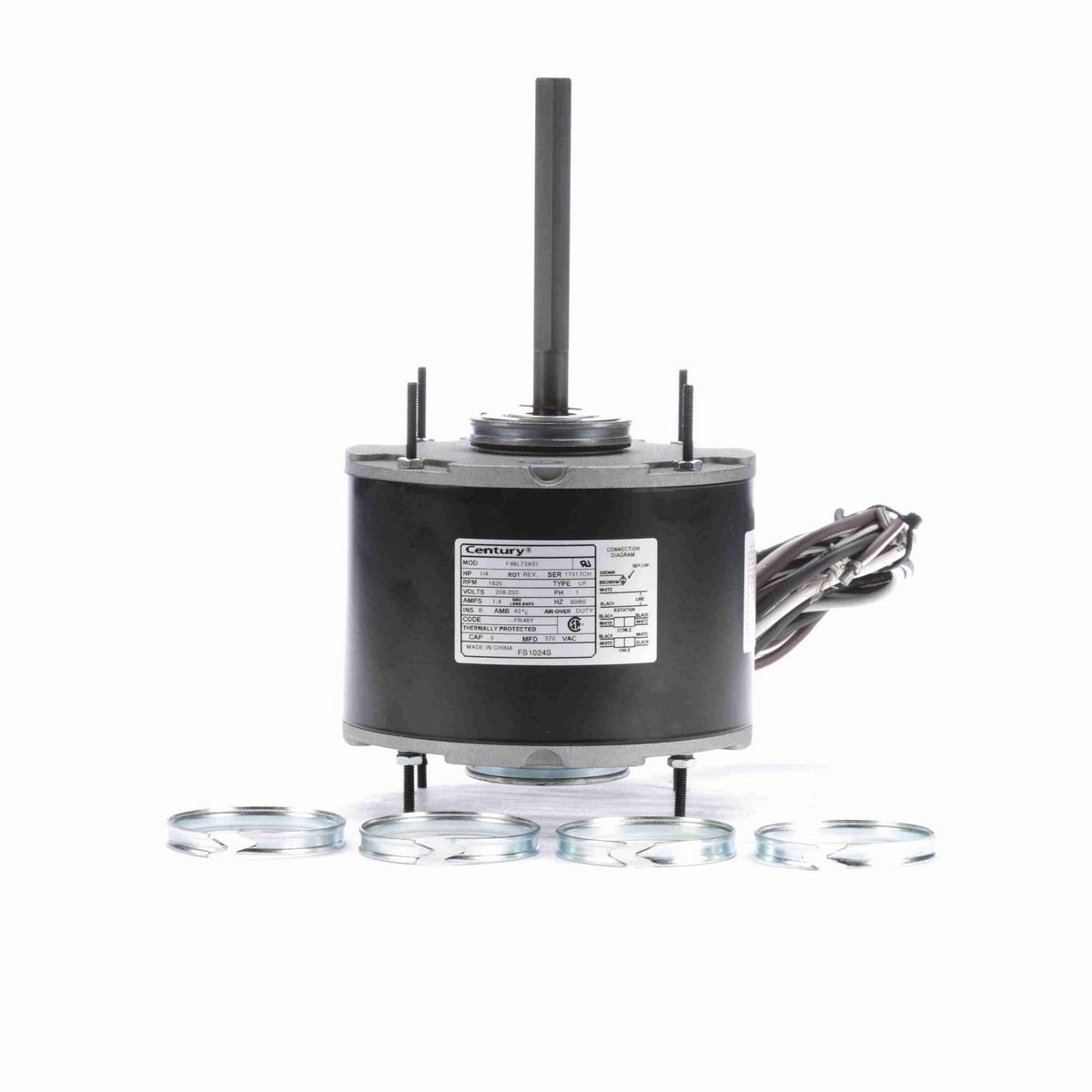

• Condenser Fan - Heat Pump - Refrigeration Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Enclosed, Except Open Lead End End-Frame Air Over
• Class B Insulation, 40°C Ambient
• Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
• 1/2" Diameter Shaft with Double Flat
• 36" Leads
• Extended Studs Shaft End and Lead End, Resilient Ring Mounting, Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/4 Hp
Output KW	0.19 kW
Voltage	208-230 V
Speed	1625 rpm
Service Factor	1
Frame	48Y
Enclosure	Semi Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	50 Hz
Current	1.4 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Reversible
Mounting	Resilient Ring/Extended Studs
Motor Orientation	Any
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Double Flat
Overall Length	9.42 in
Frame Length	3.38 in
Shaft Diameter	0.500 in
Shaft Extension	4.9 in

General Specifications

UPC	786674021236
Weight	11.00 LB
Packaged Length	15.55 IN
Packaged Width	6.45 IN
Packaged Height	6.81 IN
HTC	8501.40.4040
Country of Origin	Mexico
