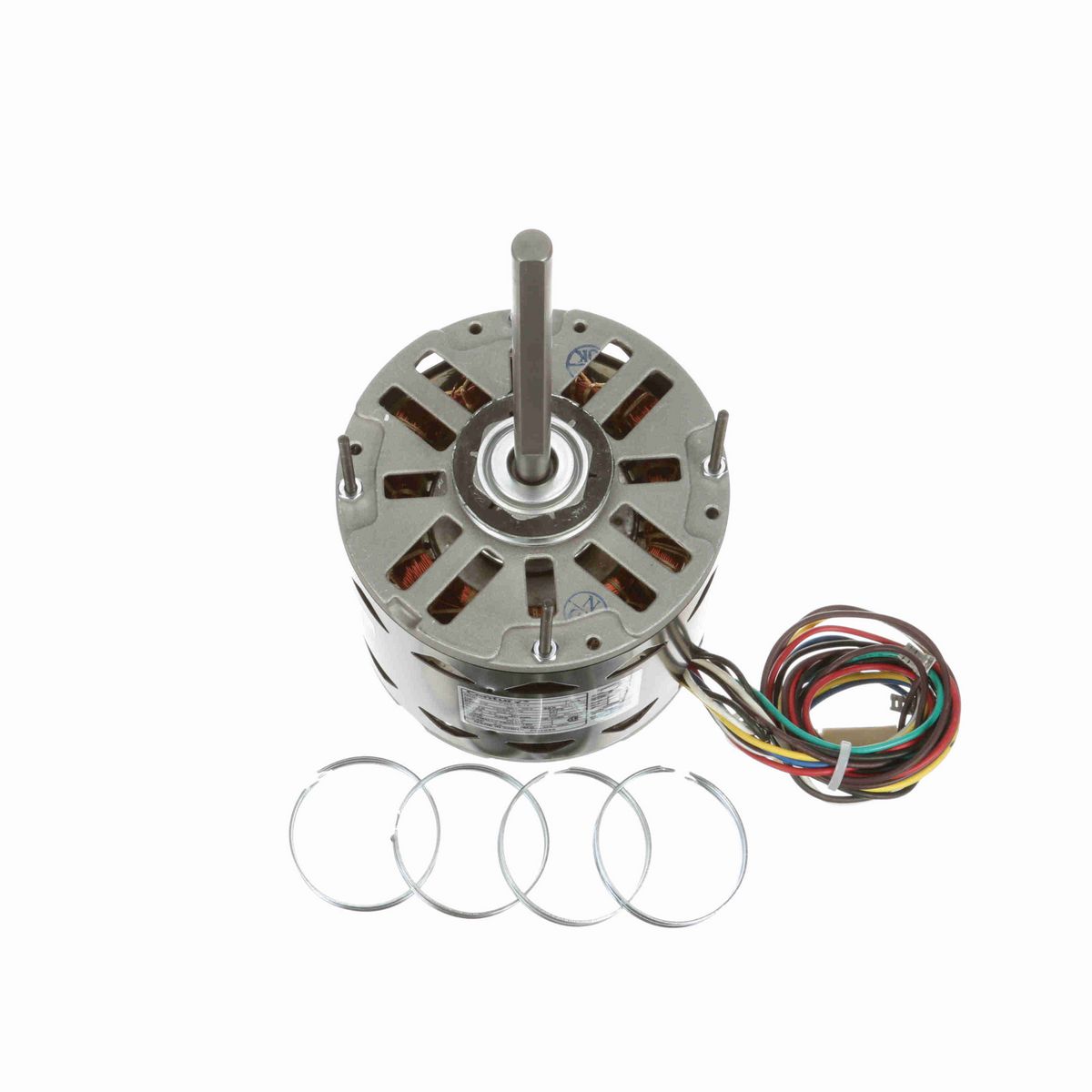

• Direct Drive Fan & Blower Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class A Insulation, 50°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• 26" Leads
• Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Output KW	0.25 kW
Voltage	208-230 V
Speed	1075 rpm
Service Factor	1
Frame	48Y
Enclosure	Open Enclosed
Thermal Protection	Automatic
Ambient Temperature	50 °C
Frequency	60 Hz
Current	3.2 A
Duty	Air Over
Insulation Class	A
UL	Recognized
CSA	Y
CE	N
Number of Speeds	3

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Resilient Rings
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	11.55 in
Frame Length	4.00 in
Shaft Diameter	0.500 in
Shaft Extension	6.5 in

General Specifications

UPC	786674020482
Weight	14.00 LB
Packaged Length	13.78 IN
Packaged Width	6.41 IN
Packaged Height	6.81 IN
HTC	8501.40.4040
Country of Origin	India
