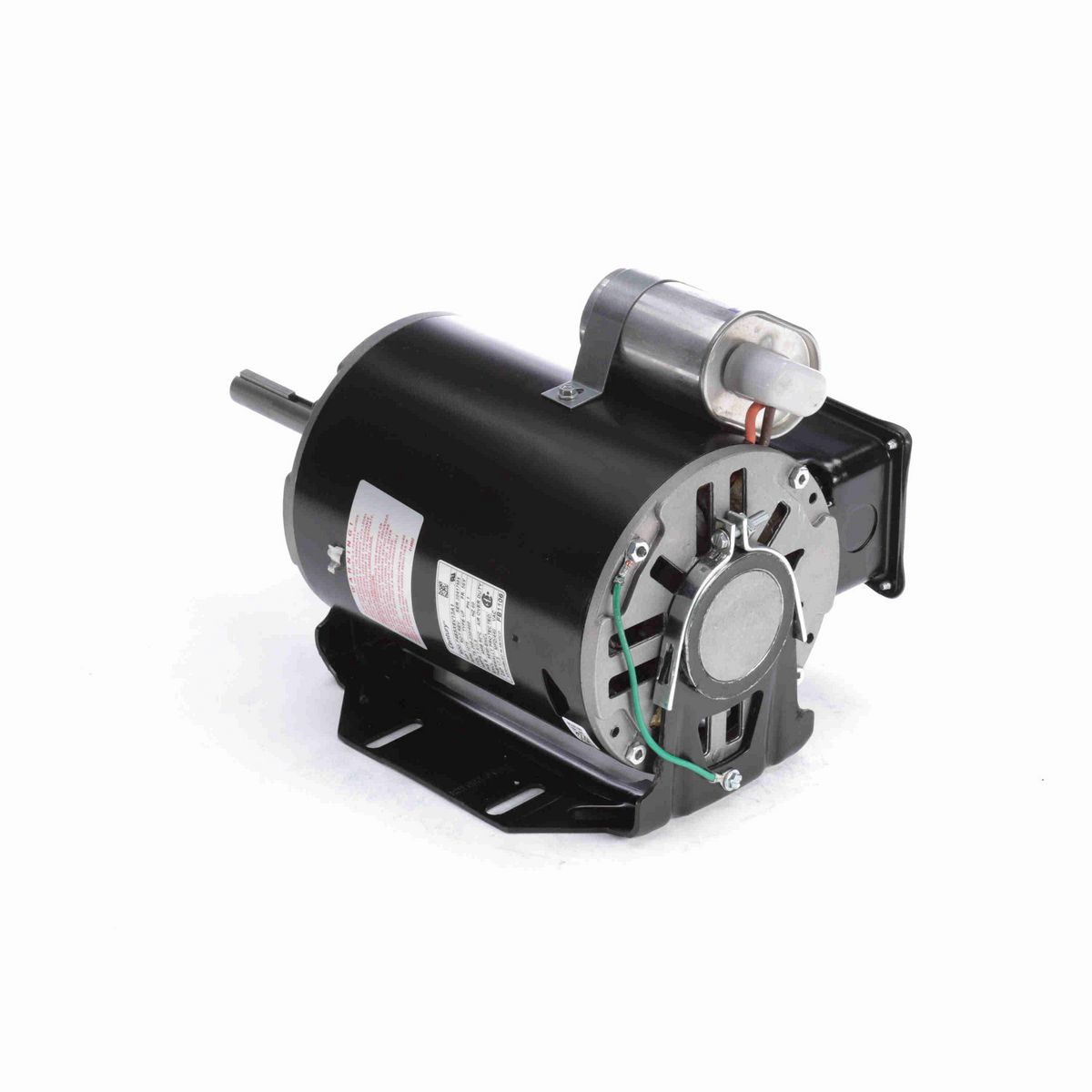

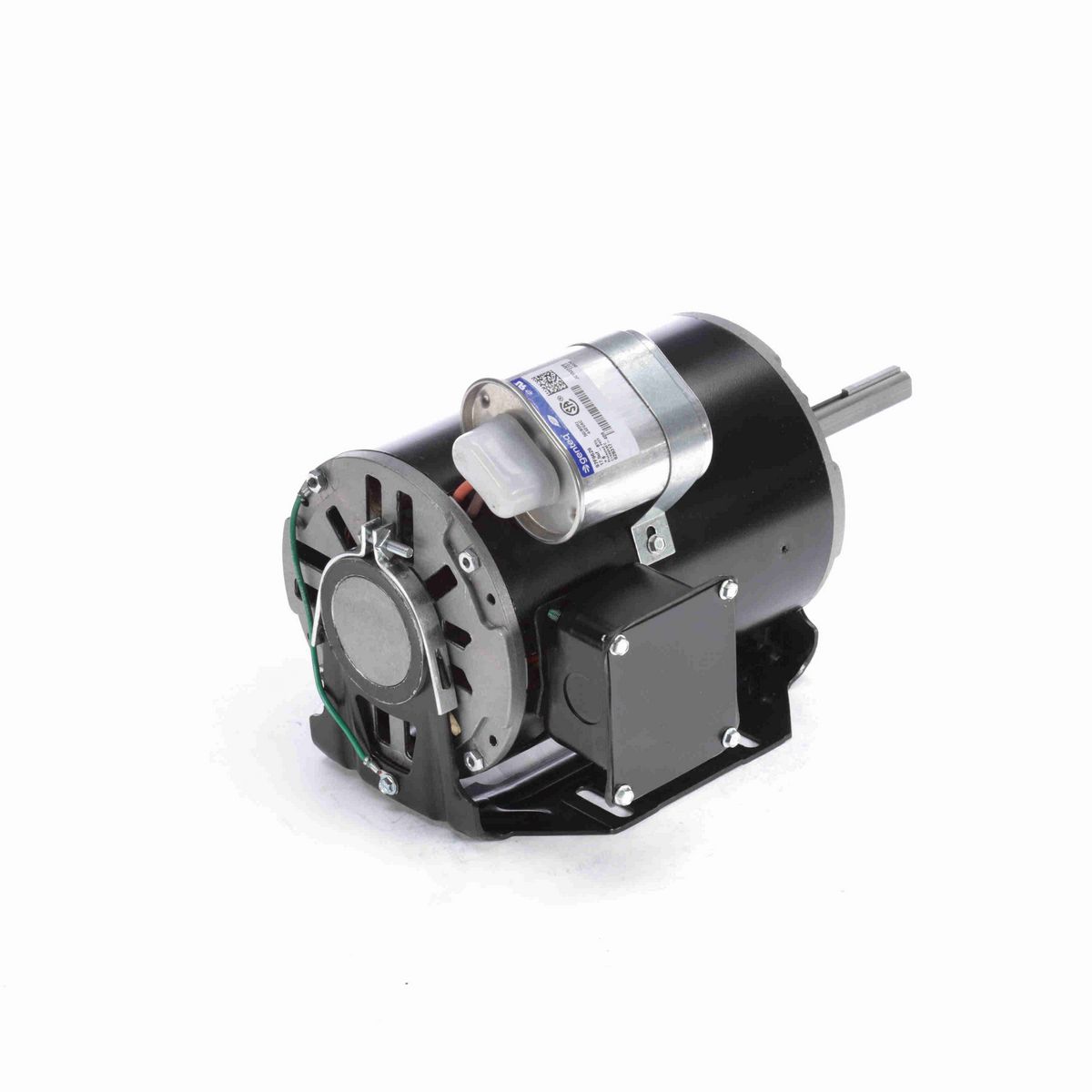

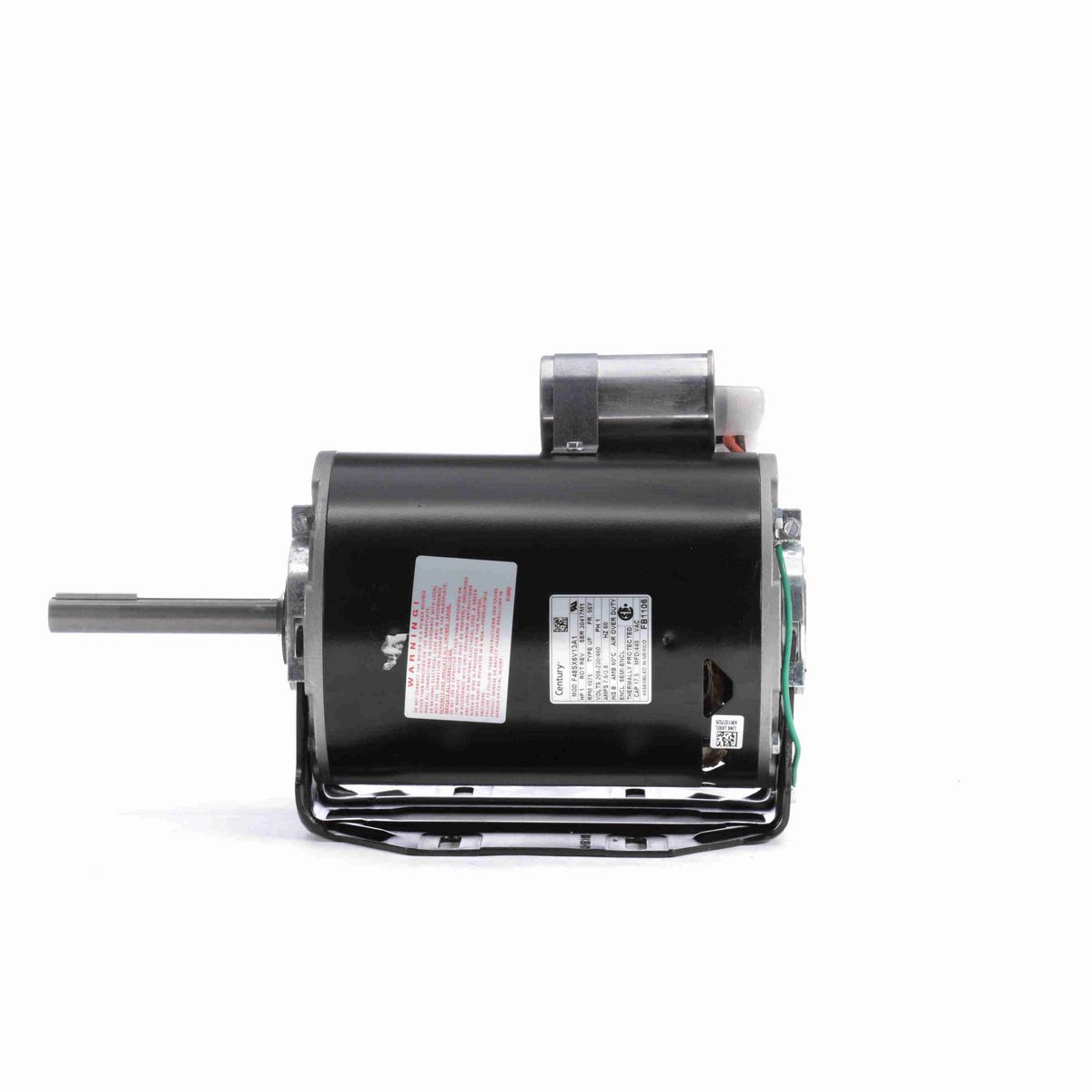

• Condenser Fan Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 17.5 Mfd-440 Volts (Supplied with Motor)
• Thermally Protected
• Open Lead End End-Frame, Shell Half Vented Lead End, Enclosed Shaft End End-Frame, Air Over
• Class B Insulation, 60°C Ambient
• Ball Bearing
• 5/8" Diameter Keyed Shaft with Flat
• Conduit Box
• Resilient Base

Nameplate Specifications

Phase	1
Output HP	1 Hp
Output KW	0.75 kW
Voltage	208-230/460 V
Speed	1075 rpm
Service Factor	1
Frame	56Y
Enclosure	Semi Enclosed
Thermal Protection	Automatic
Ambient Temperature	60 °C
Frequency	60 Hz
Current	7.6/3.8 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Resilient Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	12.83 in
Frame Length	7.00 in
Shaft Diameter	0.625 in
Shaft Extension	4.1 in

General Specifications

UPC	786674020284
Weight	30.00 LB
Packaged Length	15.50 IN
Packaged Width	10.50 IN
Packaged Height	10.00 IN
HTC	8501.40.6040
Country of Origin	Mexico
