• 2-1/4 x 5/8 shaft dimensions
• Single speed

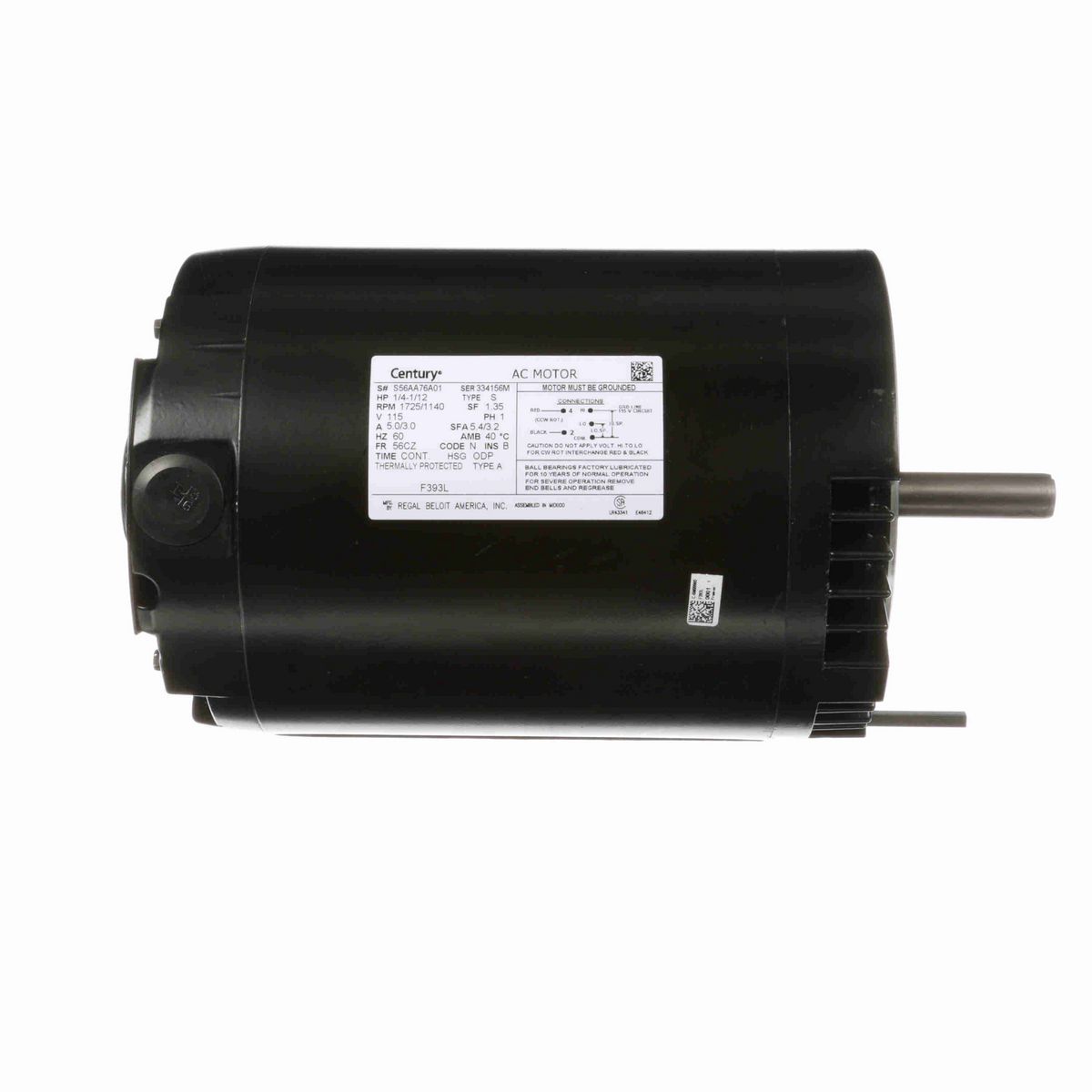

Nameplate Specifications

Phase	1
Output HP	1/4-1/12 Hp
Output KW	0.19 kW
Voltage	115 V
Speed	1725/1140 rpm
Service Factor	1.35
Frame	56CZ
Enclosure	Open Drip Proof
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	5.0/3.0 A
Duty	Continuous
Insulation Class	B
UL	No
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Split Phase
Starting Method	Across The Line
Poles	4/6
Rotation	Reversible
Mounting	C
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	12.28 in
Frame Length	6.69 in
Shaft Diameter	0.625 in
Shaft Extension	2.44 in

General Specifications

UPC	786674055804
Weight	22.00 LB
Packaged Length	16.00 IN
Packaged Width	8.00 IN
Packaged Height	10.00 IN
HTC	8501.40.4040
Country of Origin	Mexico
