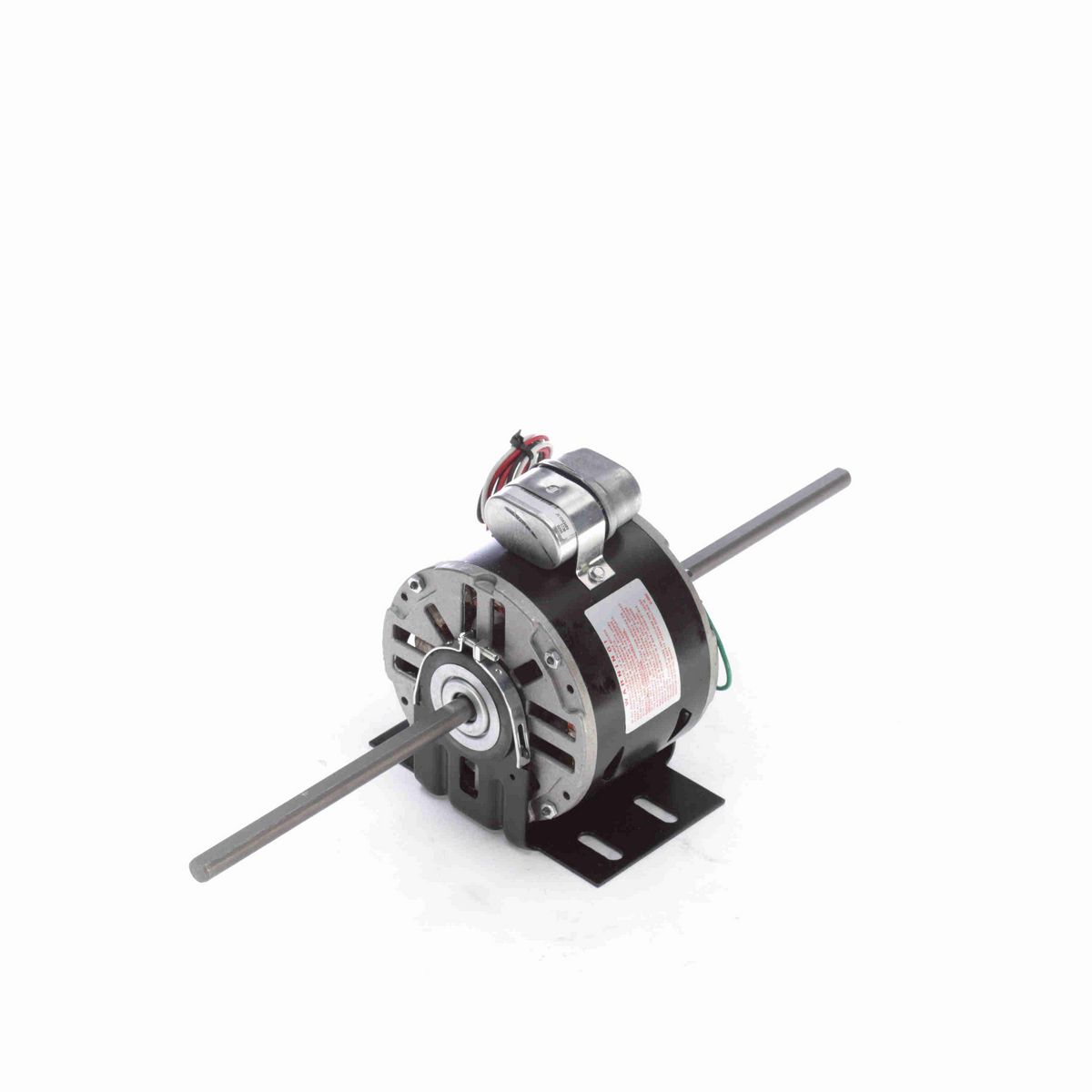

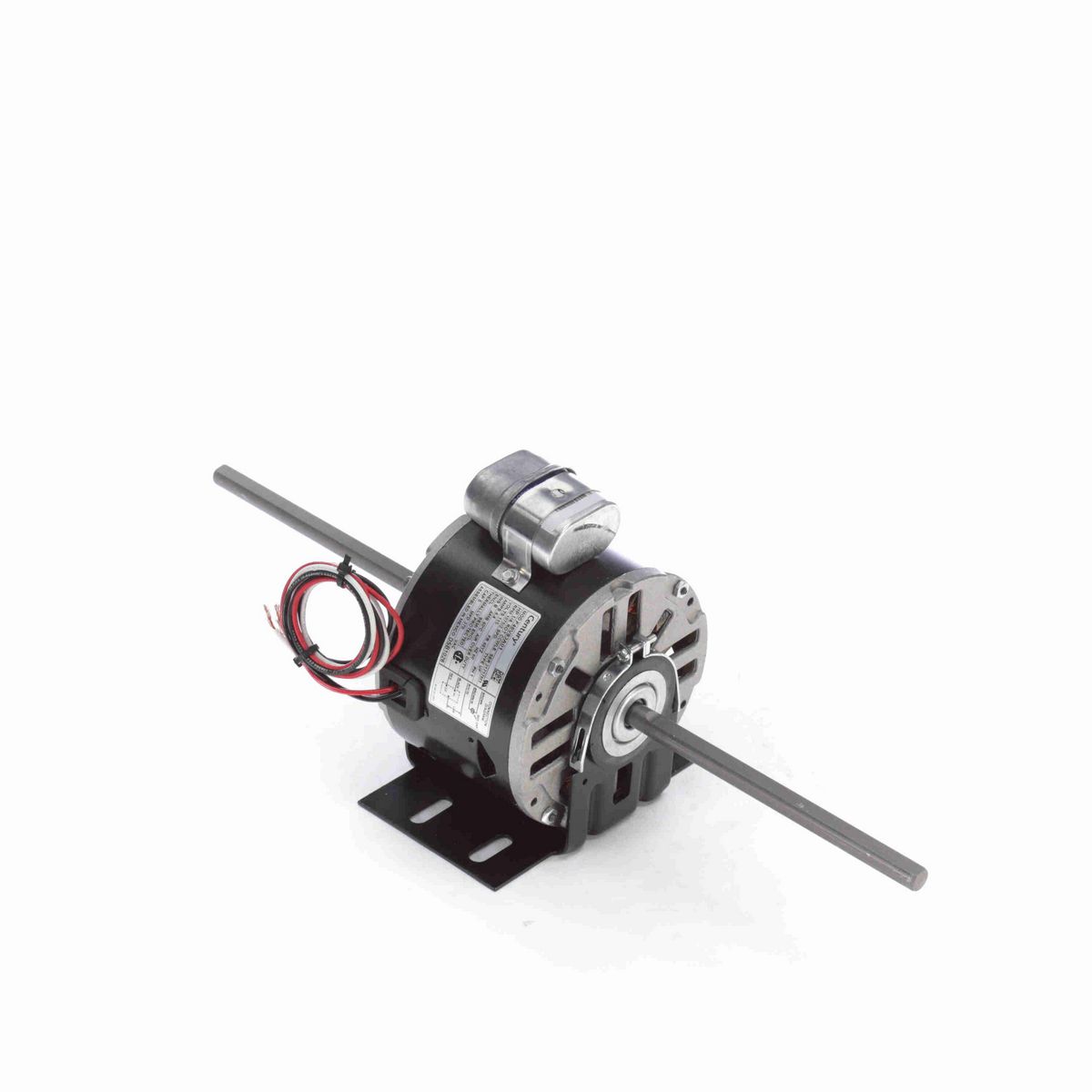

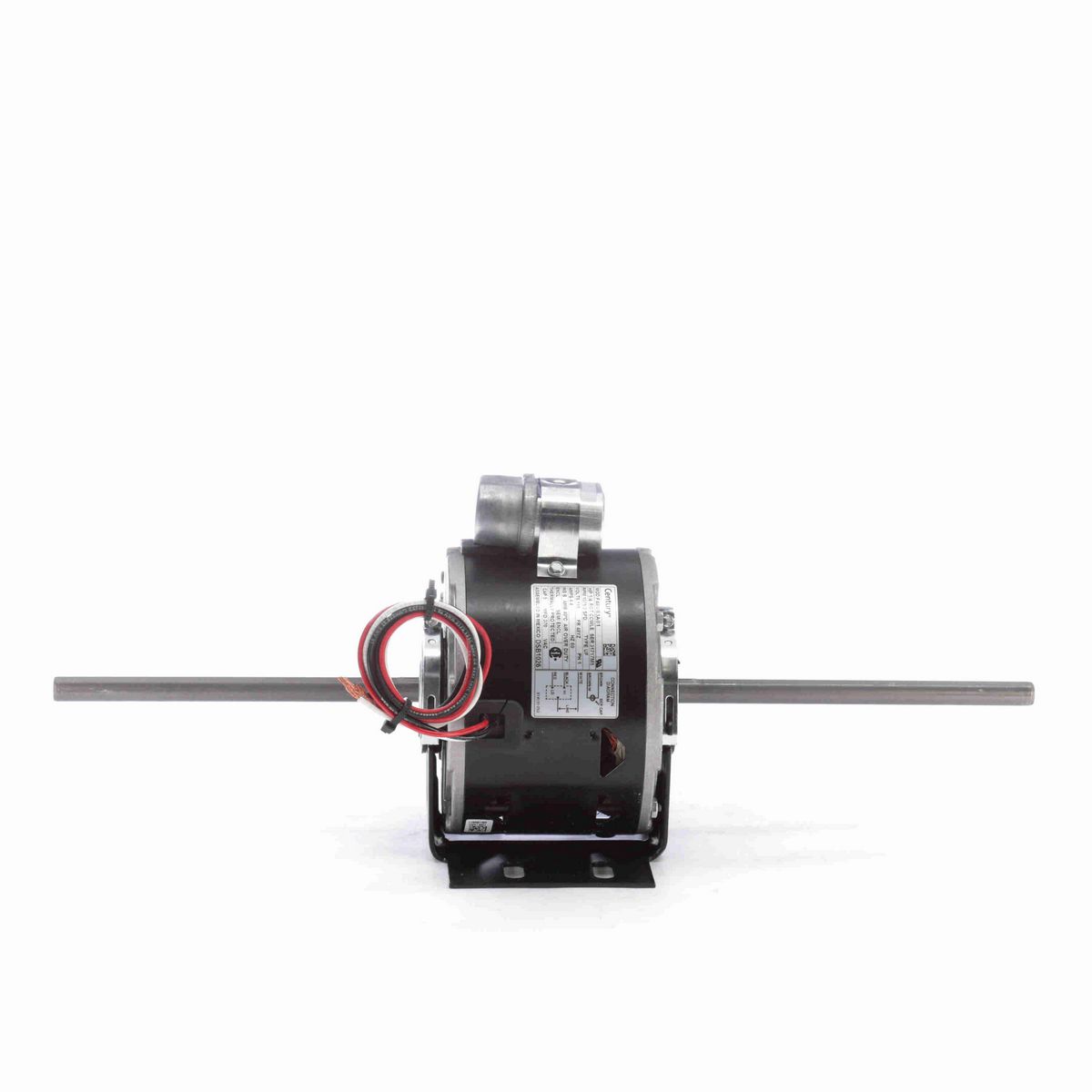

• Fan Coil - Room Air Conditioner - Blower Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Open Shaft and Lead End End-Frame, Semi-Enclosed Shell, Air Over
• Class B Insulation, 40°C Ambient
• Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
• 1/2" Diameter Double Shaft with Flat
• 22" Leads
• Resilient Base

Nameplate Specifications

Phase	1
Output HP	1/4 Hp
Output KW	0.19 kW
Voltage	115 V
Speed	1075 rpm
Service Factor	1
Frame	48YZ
Enclosure	Semi Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	4.4 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	2

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Counterclockwise Lead End
Mounting	Resilient Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	18.99 in
Frame Length	3.38 in
Shaft Diameter	0.500 in
Shaft Extension	7.5X.5X7.5 in

General Specifications

UPC	786674018670
Weight	15.00 LB
Packaged Length	23.00 IN
Packaged Width	10.00 IN
Packaged Height	9.00 IN
HTC	8501.40.4040
Country of Origin	Mexico
