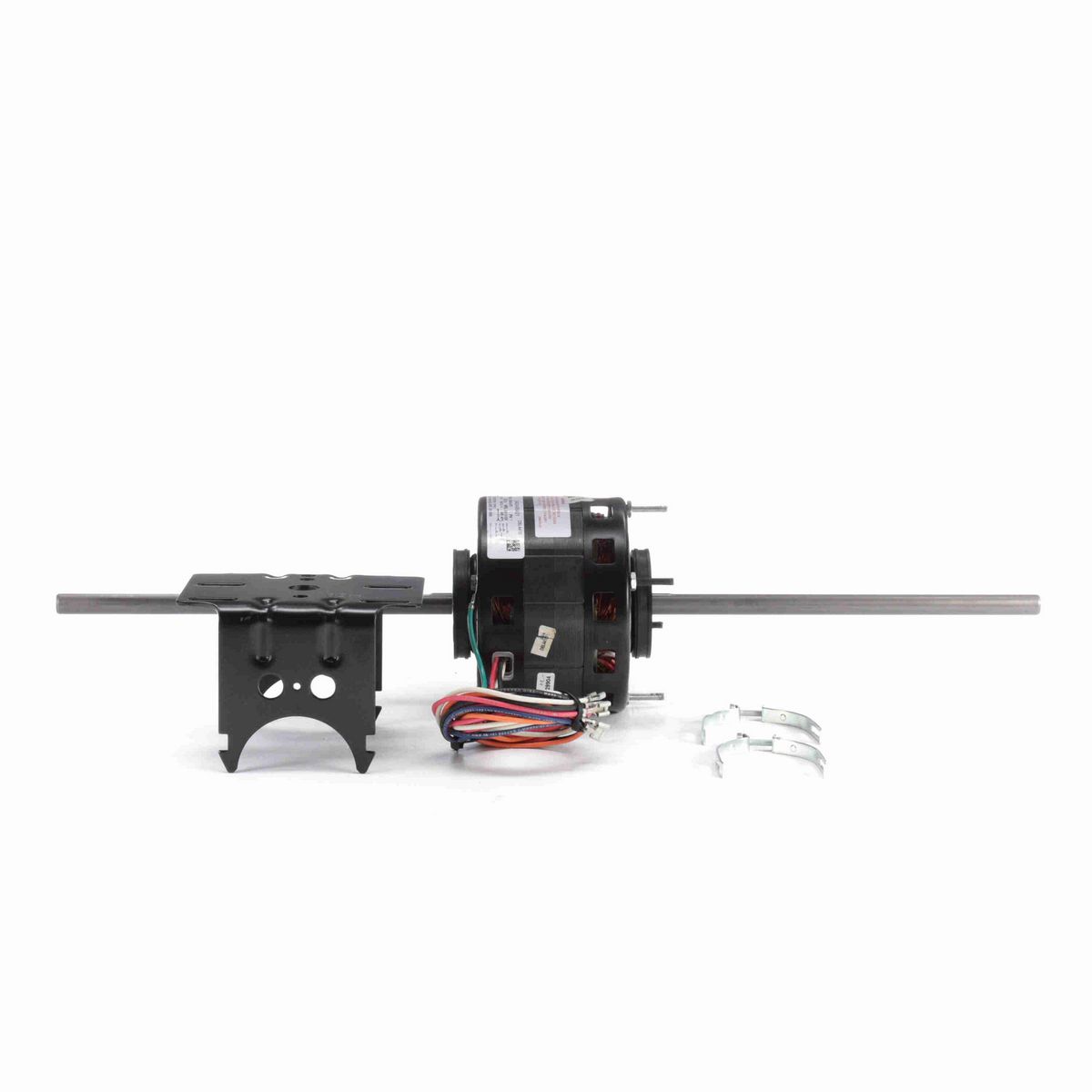

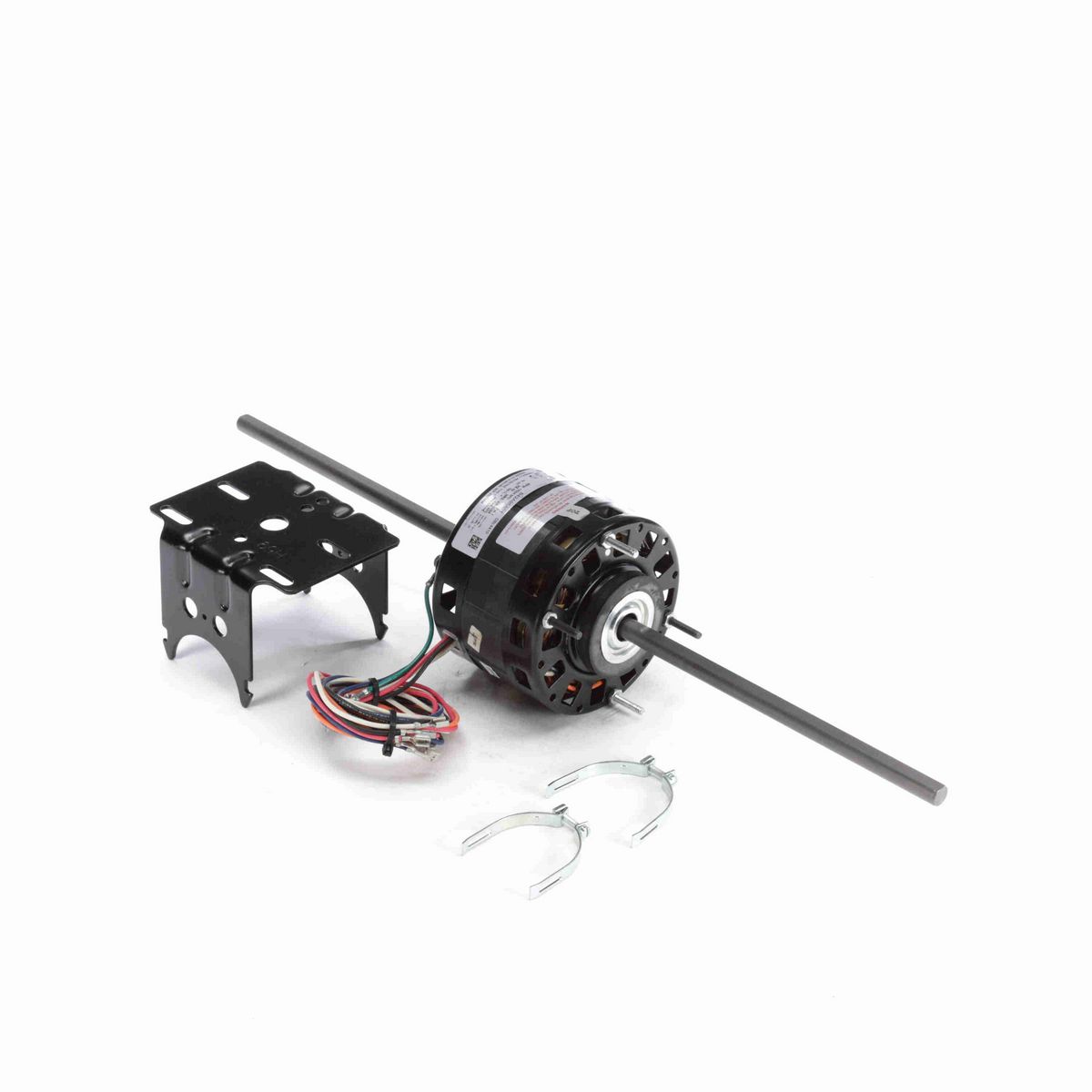

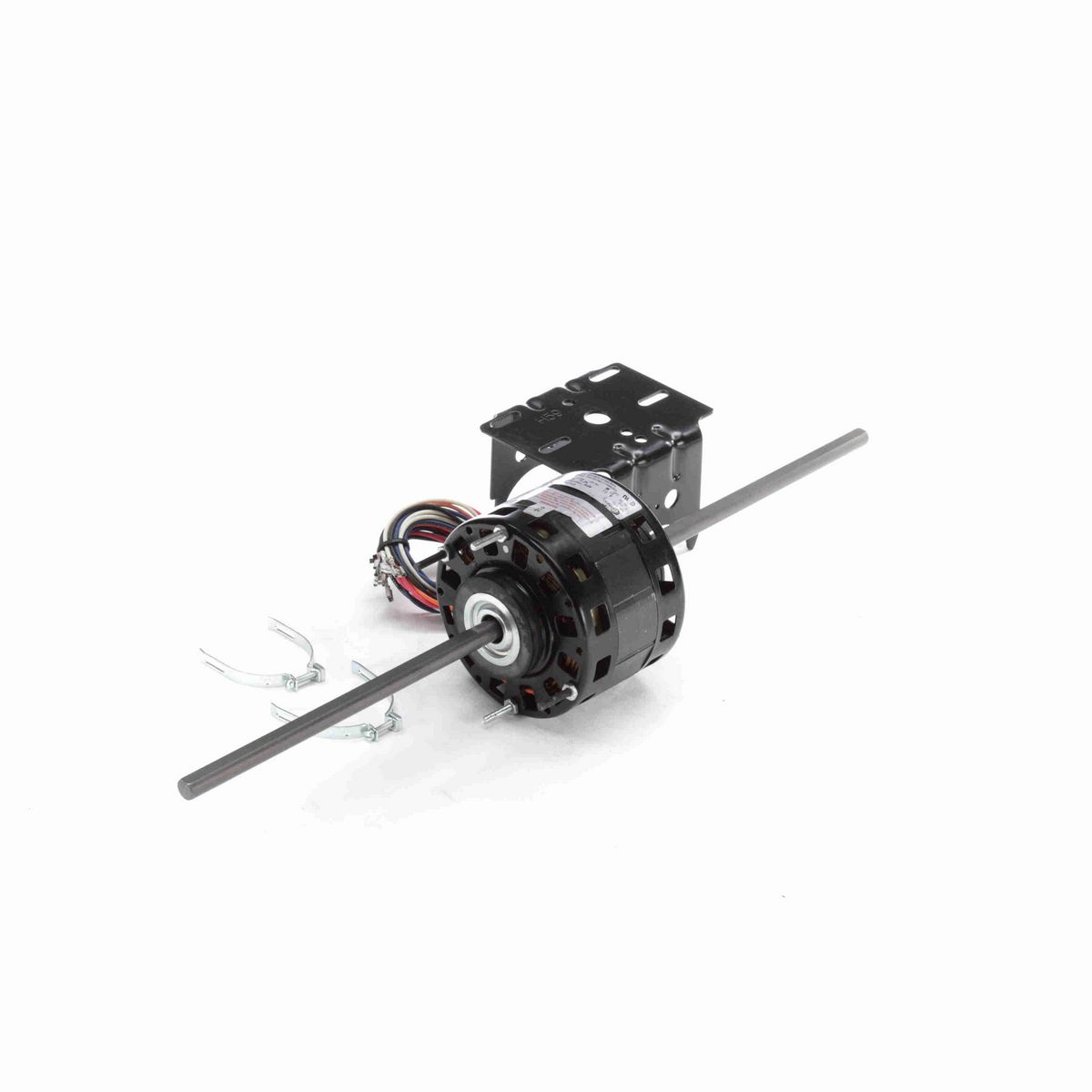

• Fan Coil - Dual Wheel Blower Motor
• 5" Diameter - 42 Frame
• Shaded Pole
• Thermally Protected
• Open Air Over
• Class A Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Double Shaft with Double Flats
• 38.5" Leads with Quick Connect Terminals
• Resilient Base

Nameplate Specifications

Phase	1
Output HP	1/10 Hp
Output KW	0.07 kW
Voltage	115 V
Speed	1550 rpm
Service Factor	1.0
Frame	42Y
Enclosure	Open Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	3.5 A
Duty	Air Over
Insulation Class	A
UL	Recognized
CSA	Y
CE	N
Number of Speeds	4

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	4
Rotation	Counterclockwise Lead End
Mounting	Resilient Ring/Extended Studs
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Na
Shaft Type	Flat
Overall Length	22.00 in
Shaft Diameter	0.500 in
Shaft Extension	9.3x.5x9.3 in

General Specifications

UPC	786674018311
Weight	12.00 LB
Packaged Length	22.87 IN
Packaged Width	6.81 IN
Packaged Height	6.81 IN
HTC	8501.40.2040
Country of Origin	Mexico
