• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Continuous duty cycle design allows maximum operation at the rated power. specifications
• Heavy-duty, rolled steel construction ensures motor durability.
• Permanently lubricated sealed bearings extend the lifetime of the motor.
• Capacitor start design optimizes motor torque and efficiency performance.

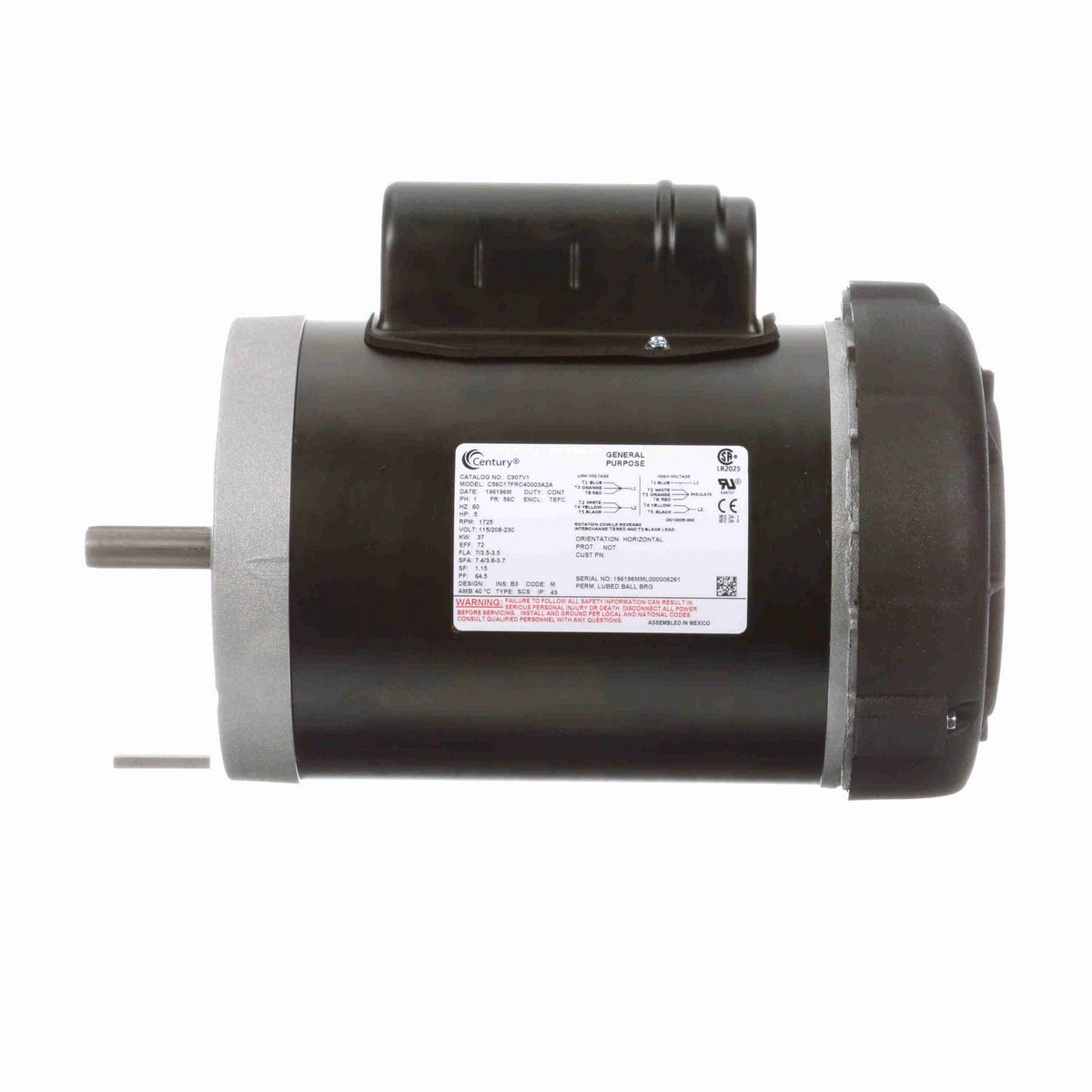

• Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	1
Output HP	.5 Hp
Output KW	0.37 kW
Voltage	115/208-230 V
Speed	1725 rpm
Service Factor	1.15
Frame	56C
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	No Protection
Efficiency	72 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	7/3.5-3.5 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	Y
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Induction Run
Starting Method	Across The Line
Poles	4
Rotation	Selective Counterclockwise
Mounting	Round
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	NEMA 56
Overall Length	12.15 in
Frame Length	7.15 in
Shaft Diameter	0.625 in
Shaft Extension	1.88 in

General Specifications

UPC	786674074782
Weight	27.00 LB
Packaged Length	15.50 IN
Packaged Width	10.50 IN
Packaged Height	10.00 IN
HTC	8501.40.4040
Country of Origin	Mexico
