• Heavy gauge steel frame and base

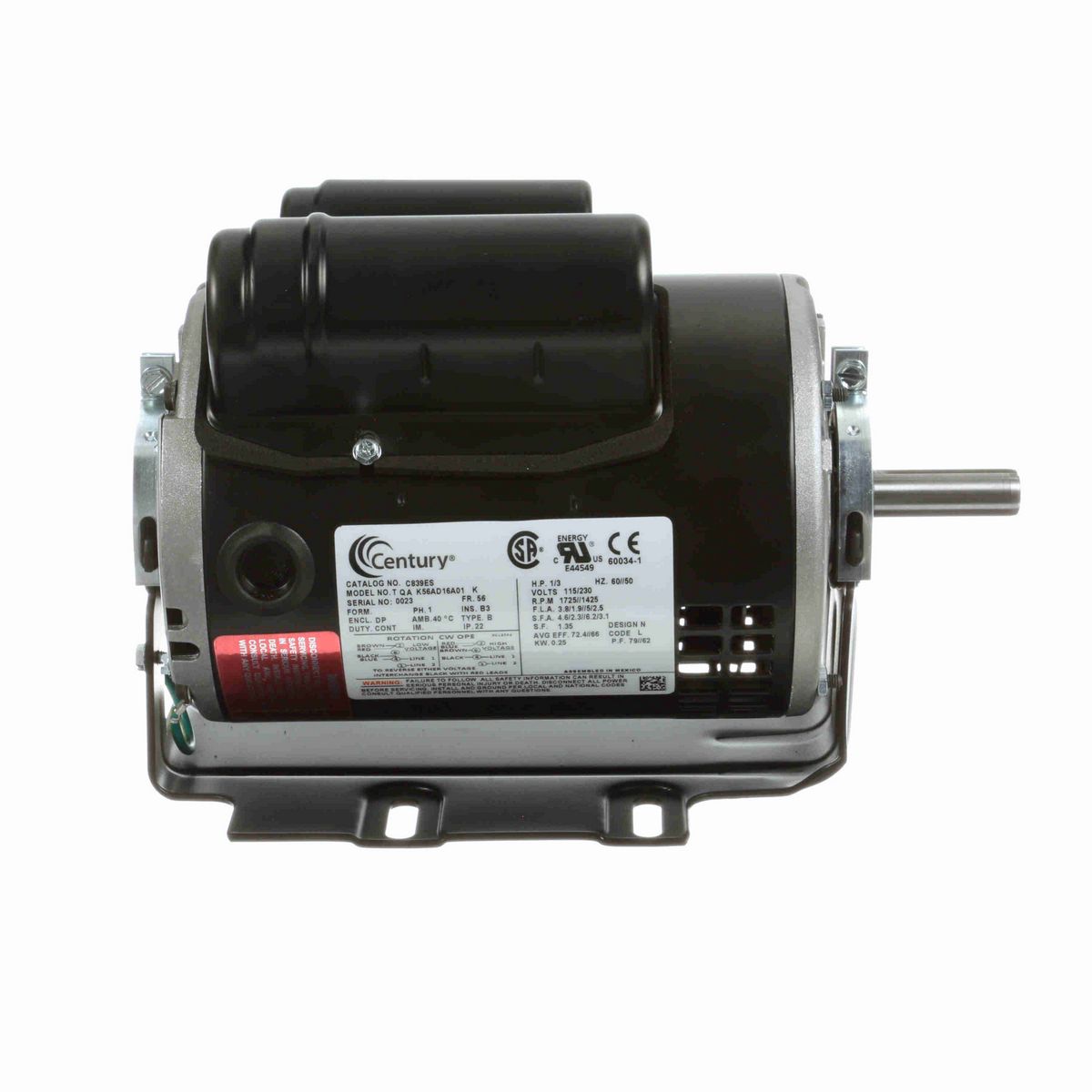

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Output KW	0.25 kW
Voltage	115/230 V
Speed	1725 rpm
Service Factor	1.35
Frame	56
Enclosure	Open Drip Proof
Thermal Protection	Automatic
Efficiency	72.4 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	3.8/1.9 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	Y
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Capacitor Run
Starting Method	Across The Line
Poles	4
Rotation	Clockwise/Counterclockwise
Mounting	Resilient Base
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	10.97 in
Frame Length	7.13 in
Shaft Diameter	0.625 in
Shaft Extension	1.97 in

General Specifications

UPC	786674073792
Weight	22.00 LB
Packaged Length	16.00 IN
Packaged Width	8.00 IN
Packaged Height	10.00 IN
HTC	8501.40.4040
Country of Origin	Mexico
