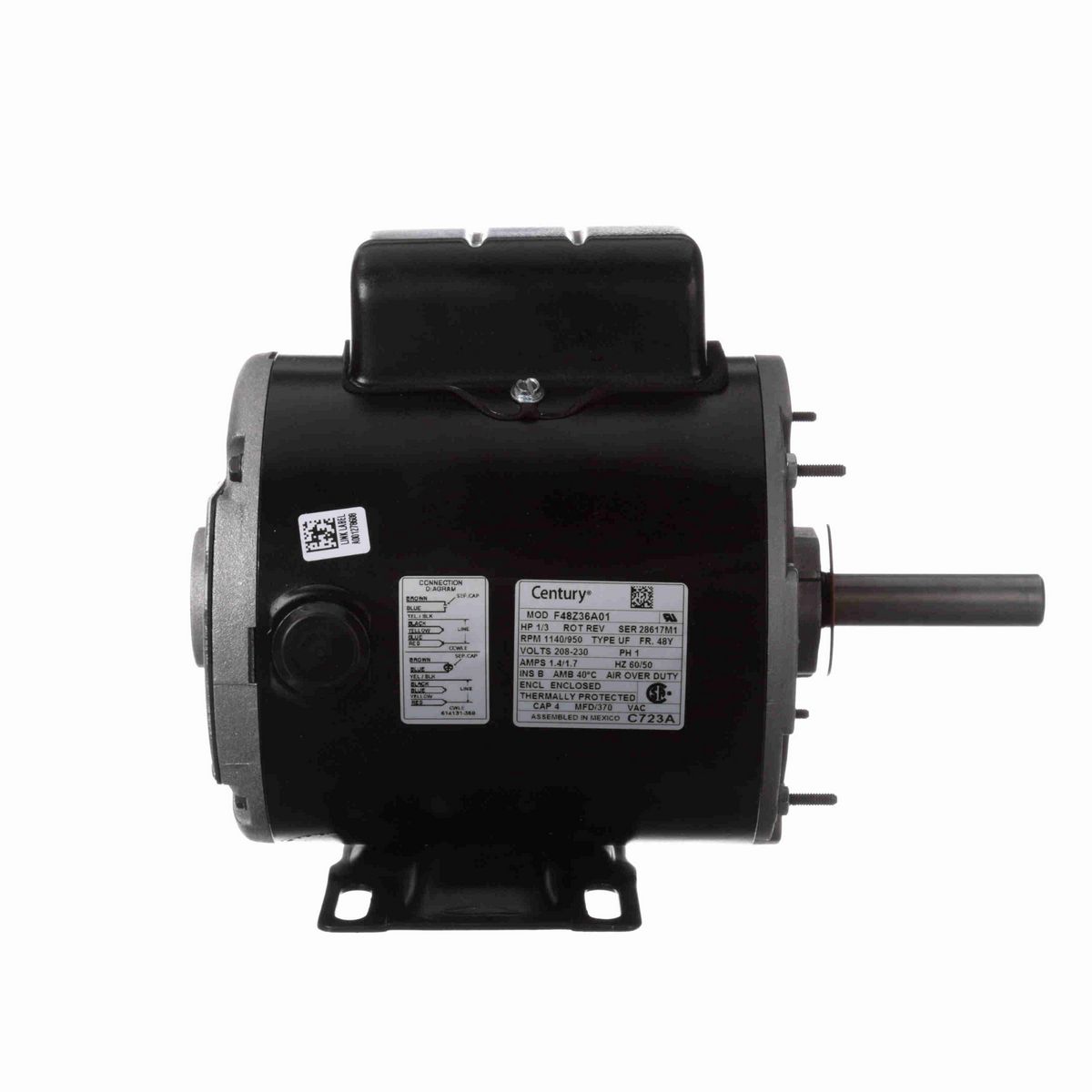

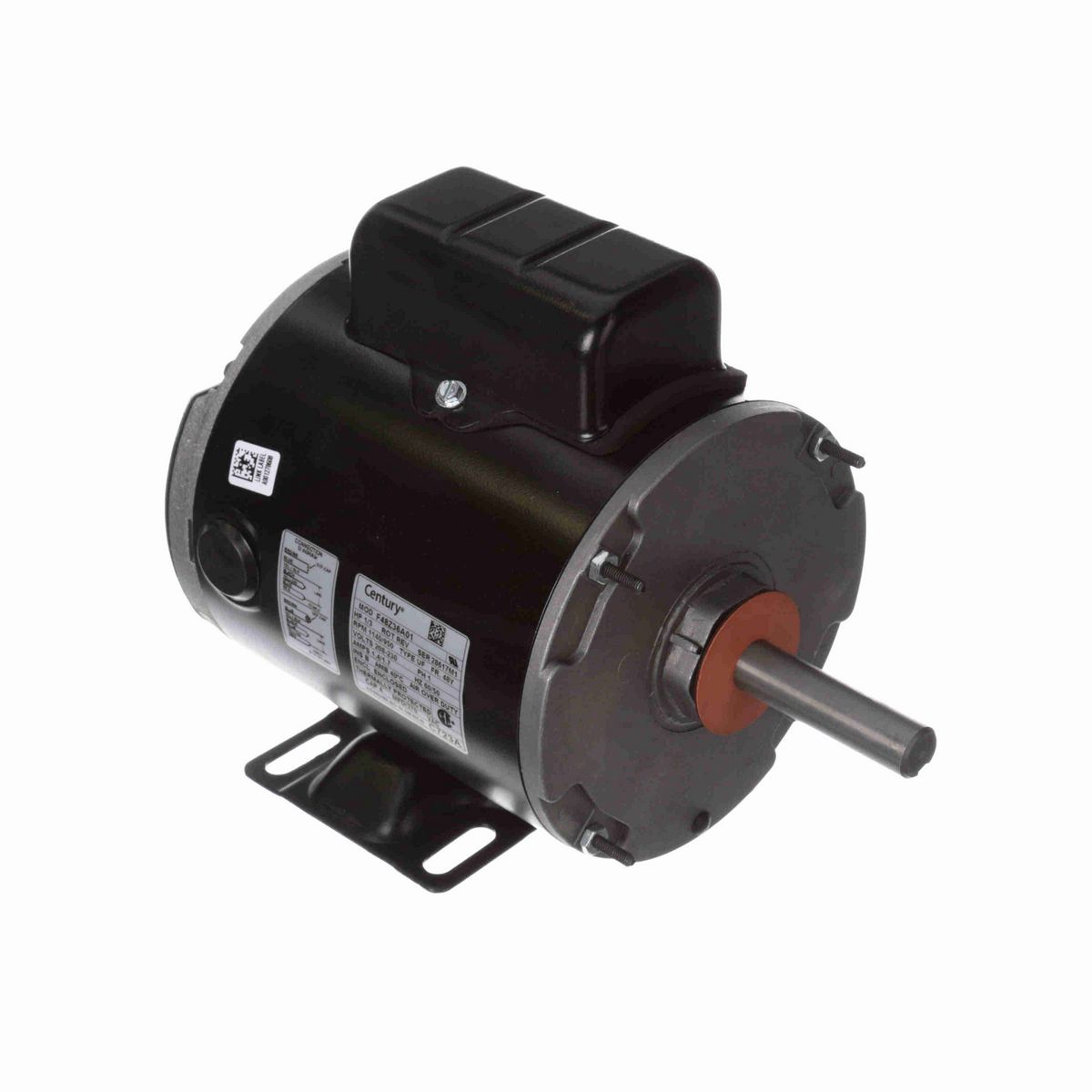

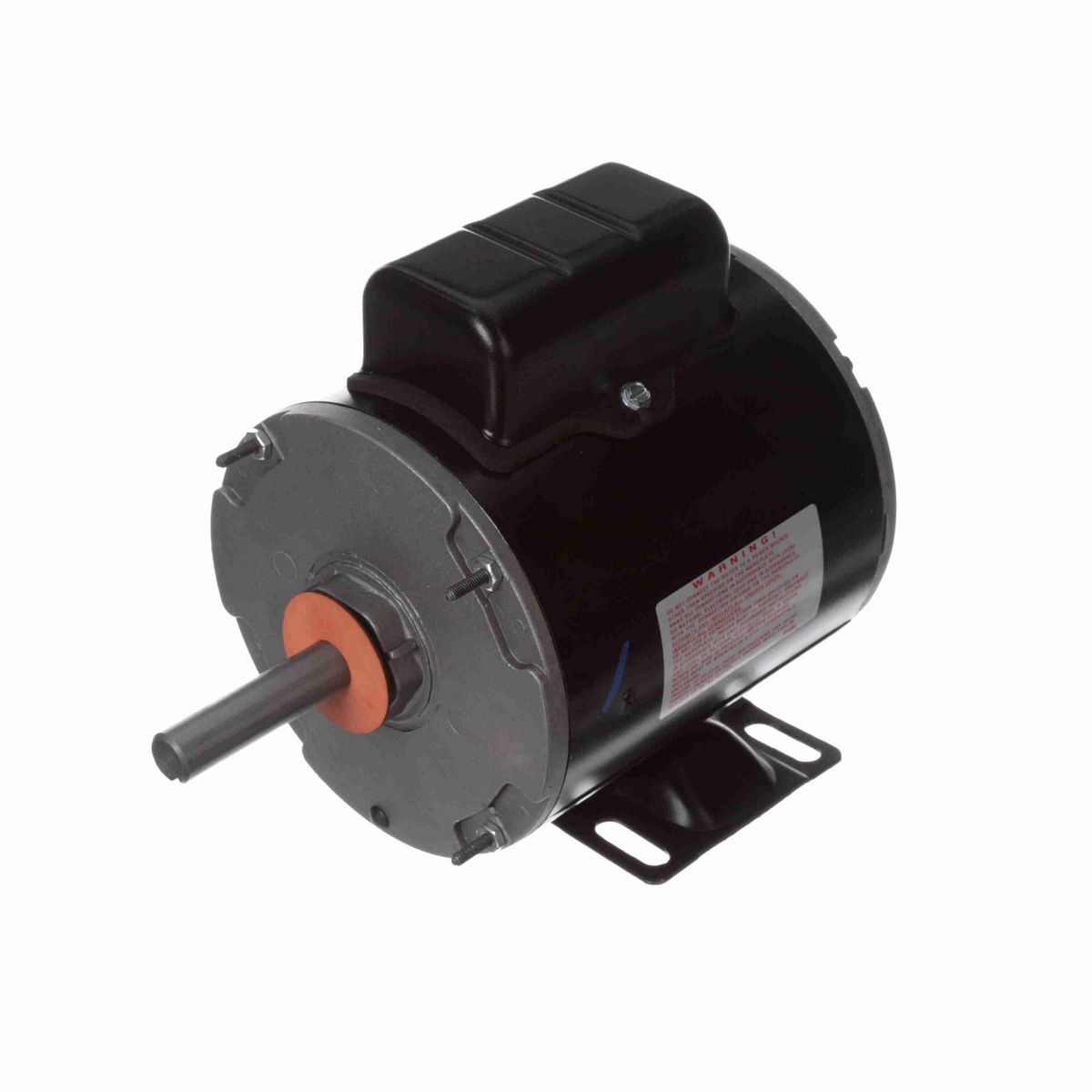

• Transformer Cooling Fan Blower Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 5/8" Diameter Keyed Shaft
• Conduit  Connection
• Rigid Base

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Output KW	0.25 kW
Voltage	208-230 V
Speed	1140/950 rpm
Service Factor	1.0
Frame	F48Y
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60/50 Hz
Current	1.4/1.7 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	2

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Rigid Base
Motor Orientation	Any
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	9.67 in
Frame Length	5.38 in
Shaft Diameter	0.625 in
Shaft Extension	3.0 in

General Specifications

UPC	786674016751
Weight	20.00 LB
Packaged Length	13.00 IN
Packaged Width	7.00 IN
Packaged Height	10.00 IN
HTC	8501.40.4040
