• UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
• Capacitor start design optimizes motor torque and efficiency performance.
• Manual overload proctetor for manual disconnect.
• Double-shielded bearings extend the service life of the motor.

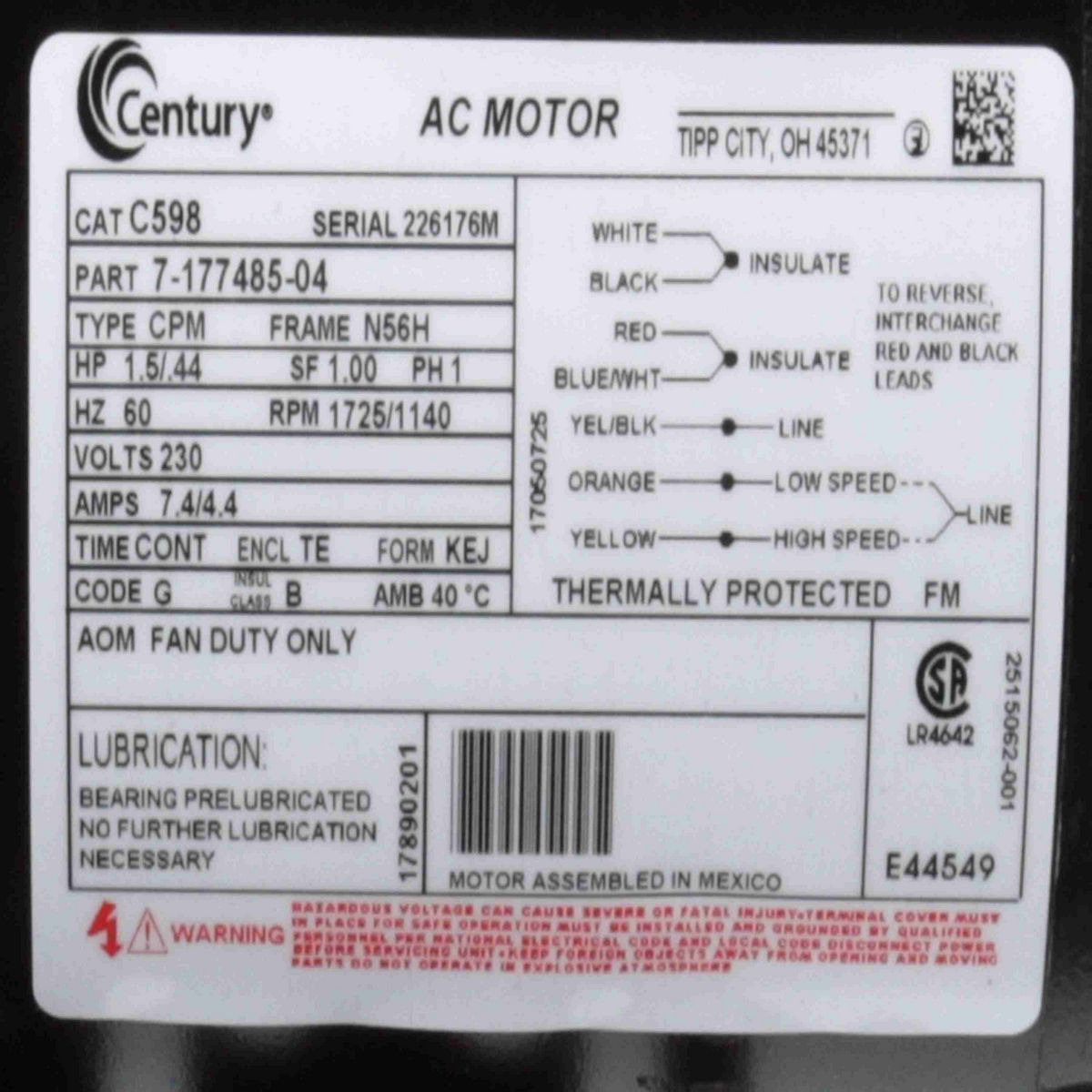

Nameplate Specifications

Phase	1
Output HP	1.5/.44 Hp
Output KW	1.1 kW
Voltage	230 V
Speed	1725/1140 rpm
Service Factor	1
Frame	N56H
Enclosure	Totally Enclosed Air Over
Thermal Protection	Thermally Protected
Efficiency	77 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	7.4/4.4 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	2-2-VT

Technical Specifications

Electrical Type	Capacitor Start, Capacitor Run, MultiSpeed
Starting Method	Across The Line
Poles	4/6
Rotation	Reversible Counterclockwise
Mounting	Rigid Base
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	13.19 in
Frame Length	7.25 in
Shaft Diameter	0.625 in
Shaft Extension	1.94 in

General Specifications

UPC	786674016362
Weight	45.00 LB
Packaged Length	17.00 IN
Packaged Width	11.00 IN
Packaged Height	11.00 IN
HTC	8501.40.6040
Country of Origin	Mexico
