• UL recognized component listing and CSA certification ensures the product is safe for use.
• Double-shielded bearings extend the service life of the motor.
• Extended shaft with wrench flats for manual jogging of auger.
• Manual-reset thermal protector (as noted) protects against motor overload.

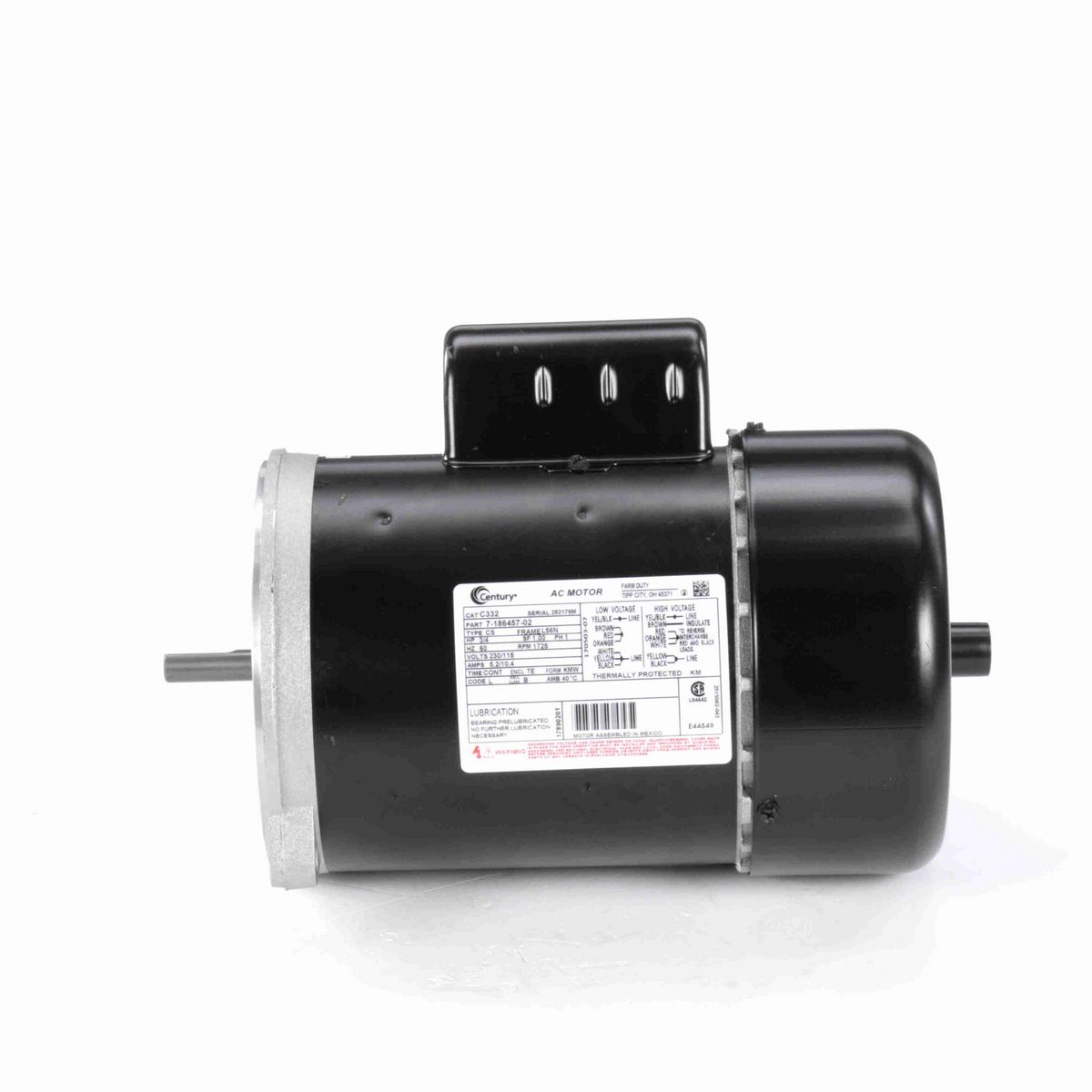

Nameplate Specifications

Phase	1
Output HP	3/4 Hp
Output KW	0.56 kW
Voltage	230/115 V
Speed	1725 rpm
Service Factor	1.00
Frame	L56N
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	5.2/10.4 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start, Induction Run, Single Or Dual Voltage
Starting Method	Across The Line
Poles	4
Rotation	Reversible Counterclockwise
Mounting	Round
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	12.41 in
Frame Length	6.25 in
Shaft Diameter	0.500 in
Shaft Extension	1.75 in

General Specifications

UPC	786674015846
Weight	32.00 LB
Packaged Length	17.00 IN
Packaged Width	11.00 IN
Packaged Height	11.00 IN
HTC	8501.40.4040
Country of Origin	Mexico
