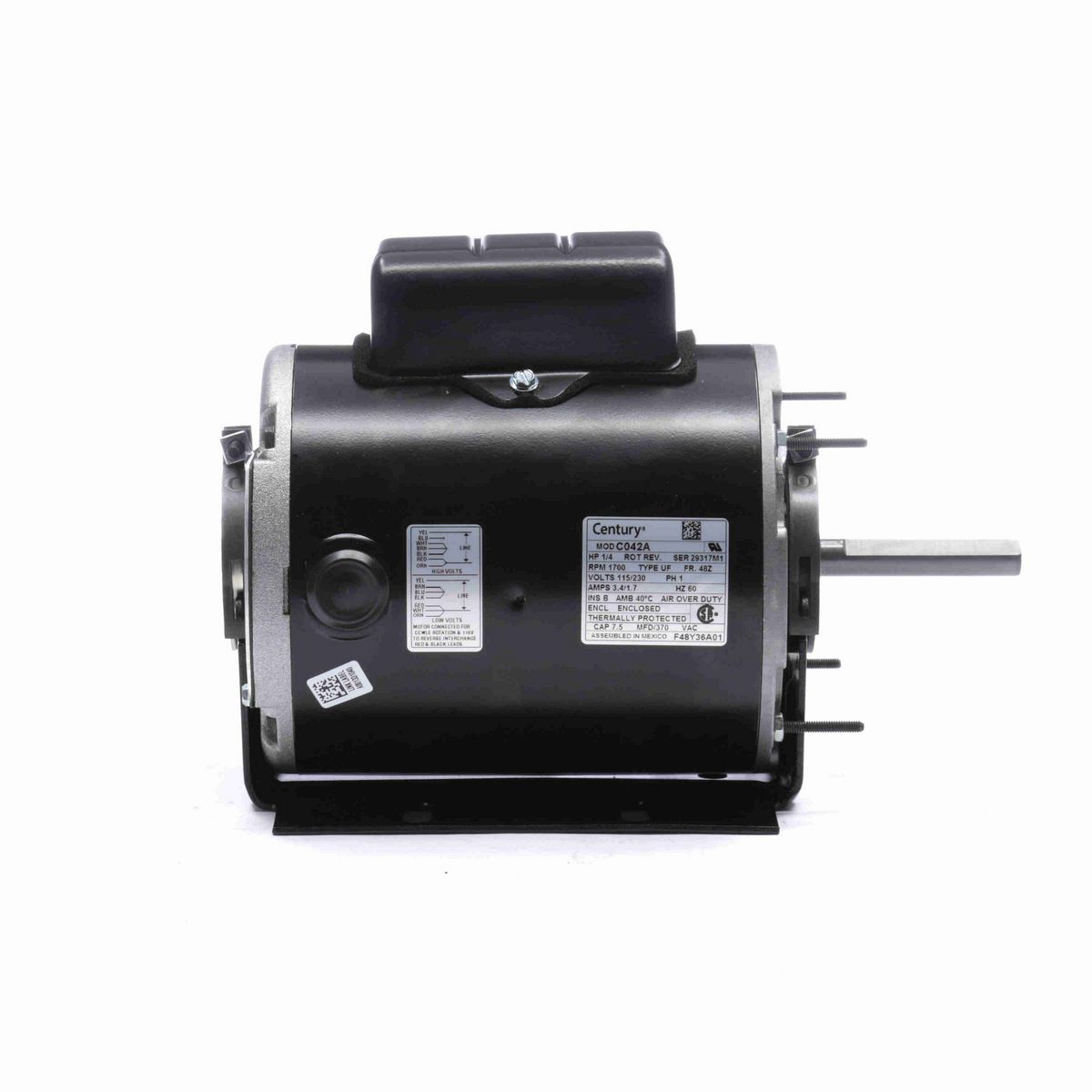

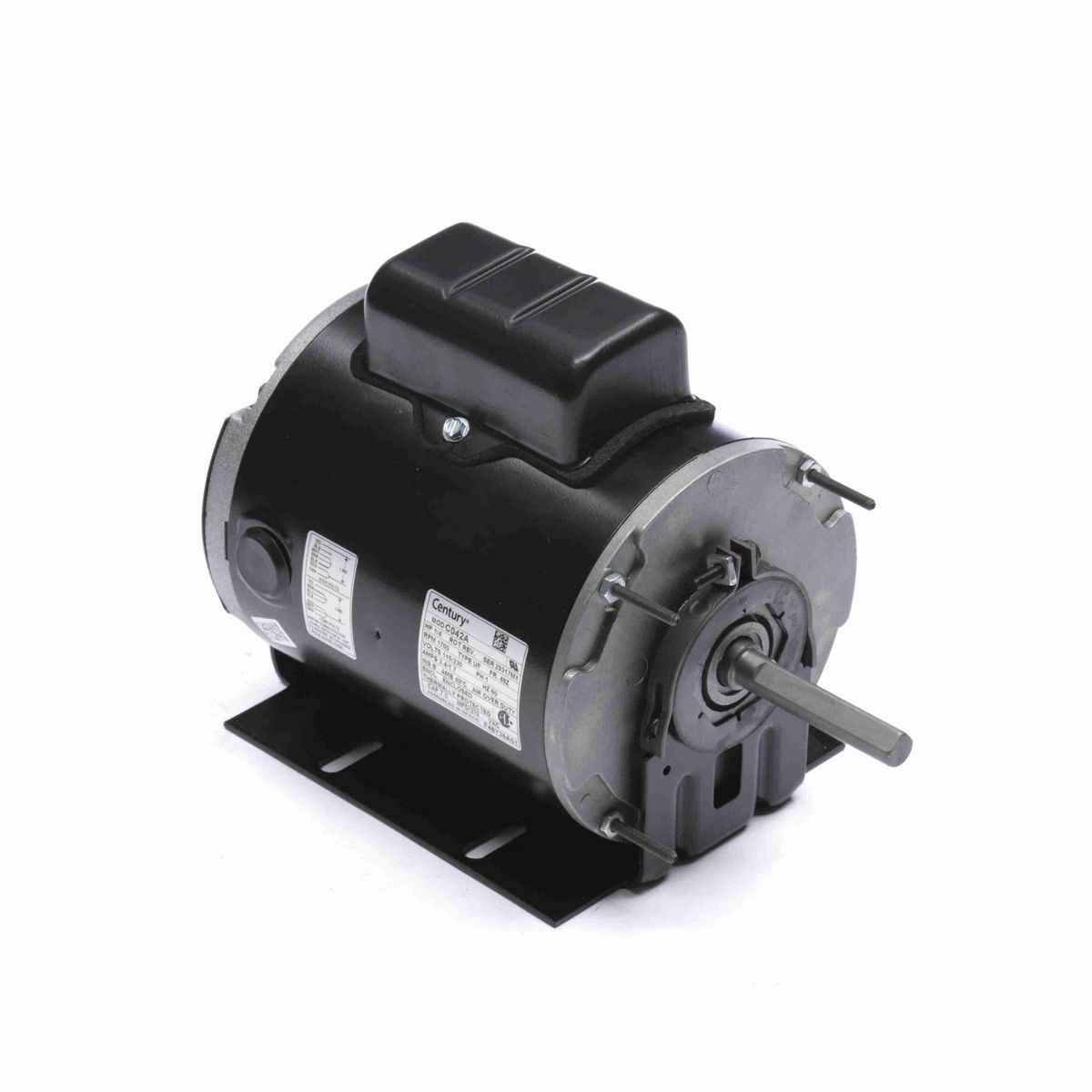

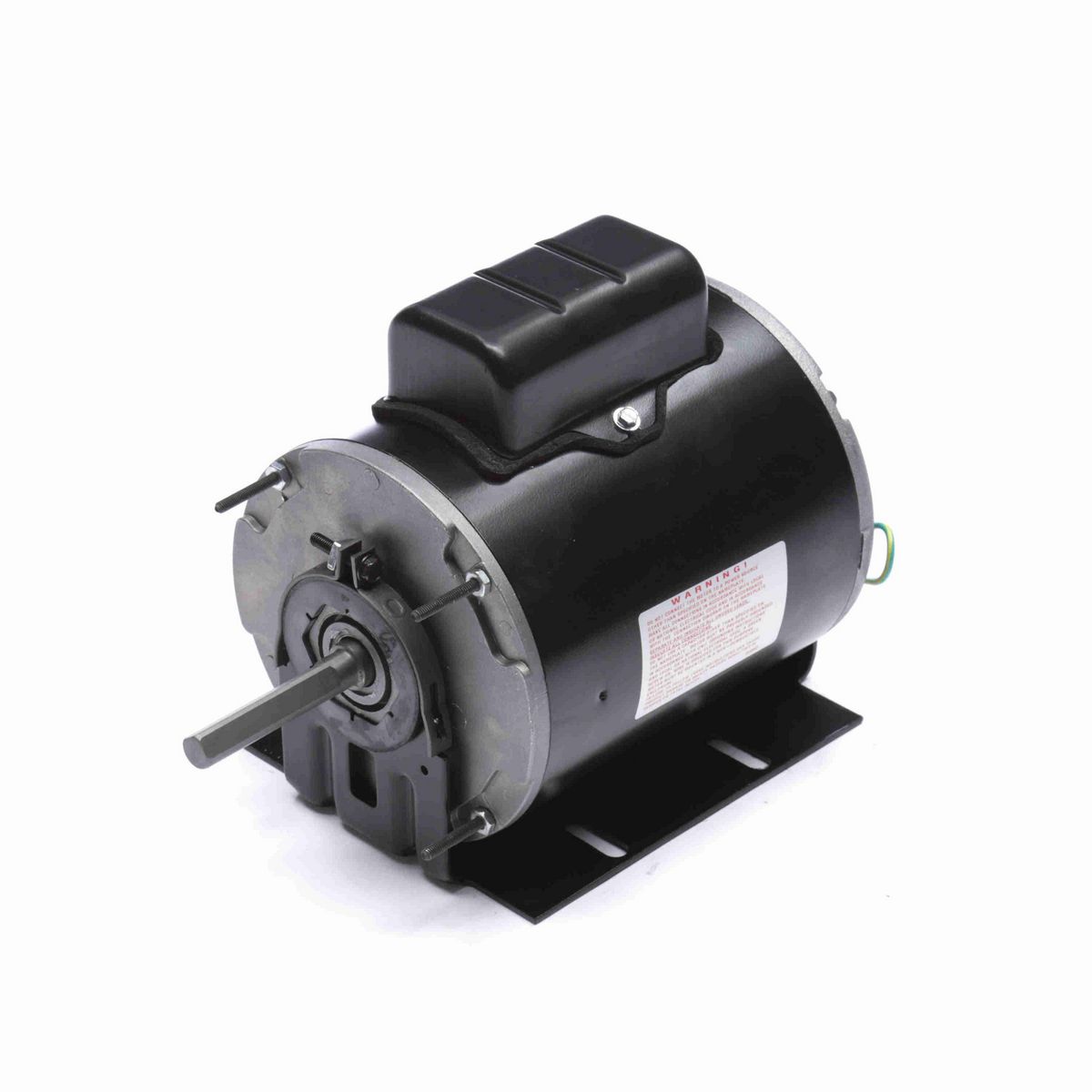

• Farm / AG Direct Drive Fan Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Supplied with Motor)
• Thermal Protection: Automatic
• Totally Enclosed Air Over, Fully Gasketed
• Class B Insulation, 40°C Ambient
• Ball Bearings, Double Sealed
• 1/2" Diameter Shaft with Double Flat
• Resilient Base, Extended Studs Shaft End

Nameplate Specifications

Phase	1
Output HP	1/4 Hp
Output KW	0.19 kW
Voltage	115/230 V
Speed	1700 rpm
Service Factor	1
Frame	48Z
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	3.4/1.7 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Reversible
Mounting	Resilient Base
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	10.12 in
Frame Length	6.00 in
Shaft Diameter	0.500 in
Shaft Extension	3.14 in

General Specifications

UPC	786674015068
Weight	19.00 LB
Packaged Length	13.00 IN
Packaged Width	7.00 IN
Packaged Height	10.00 IN
HTC	8501.40.4040
Country of Origin	Mexico
