• Double-shielded bearings extend the service life of the motor.
• EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
• Shaft flingers protect bearings from damage caused by dirt and rain.
• Condensation drains allow the motor to expel and drain built-up moisture.

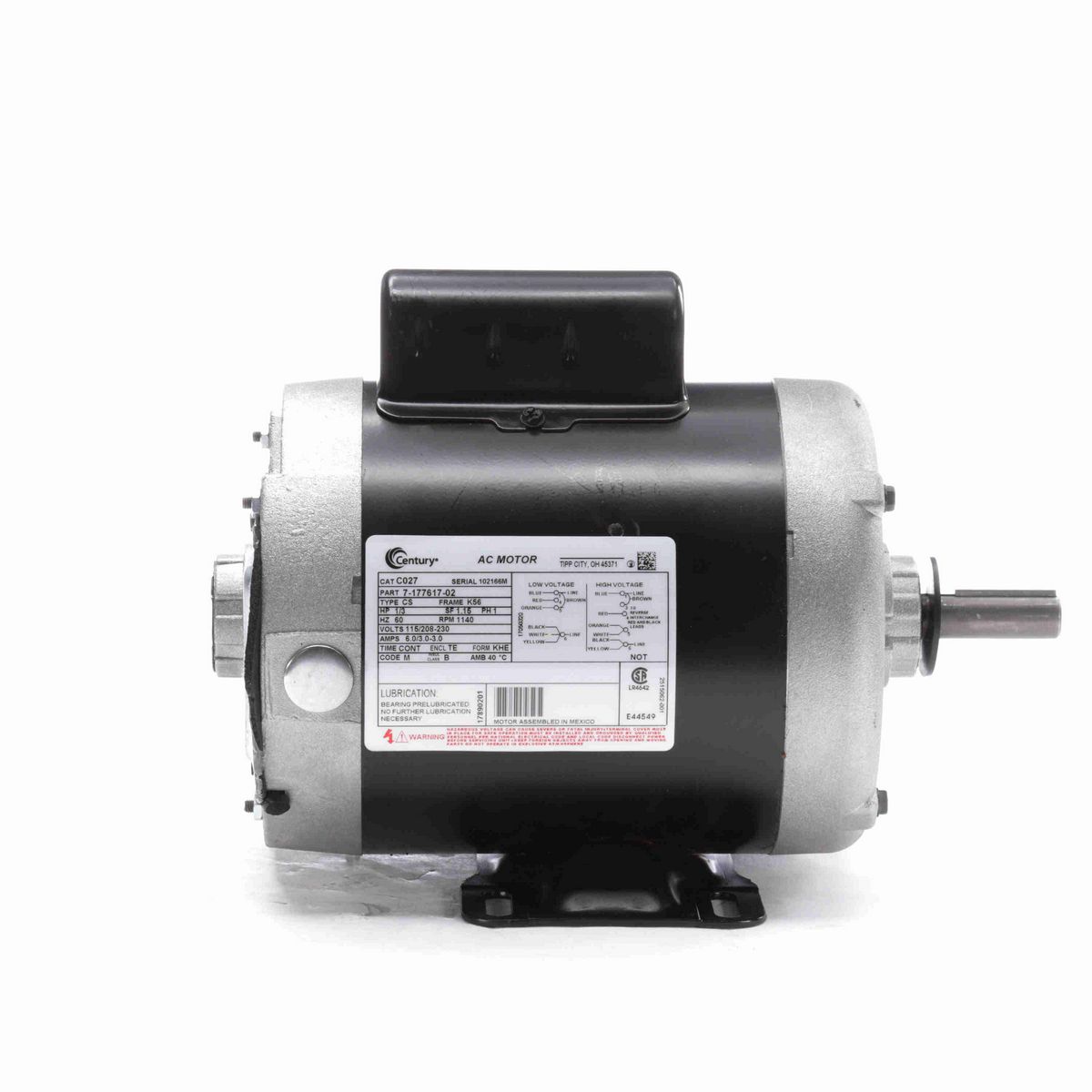

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Output KW	0.25 kW
Voltage	115/208-230 V
Speed	1140 rpm
Service Factor	1.15
Frame	K56
Enclosure	Totally Enclosed Non Ventilated
Thermal Protection	No Protection
Ambient Temperature	40 °C
Frequency	60 Hz
Current	6.0/3.0-3.0 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start, Induction Run, Single Or Dual Voltage
Starting Method	Across The Line
Poles	6
Rotation	Reversible Counterclockwise
Mounting	Rigid Base
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	11.44 in
Frame Length	5.50 in
Shaft Diameter	0.625 in
Shaft Extension	1.94 in

General Specifications

UPC	786674014986
Weight	29.00 LB
Packaged Length	16.00 IN
Packaged Width	8.00 IN
Packaged Height	10.00 IN
HTC	8501.40.4040
Country of Origin	Mexico
