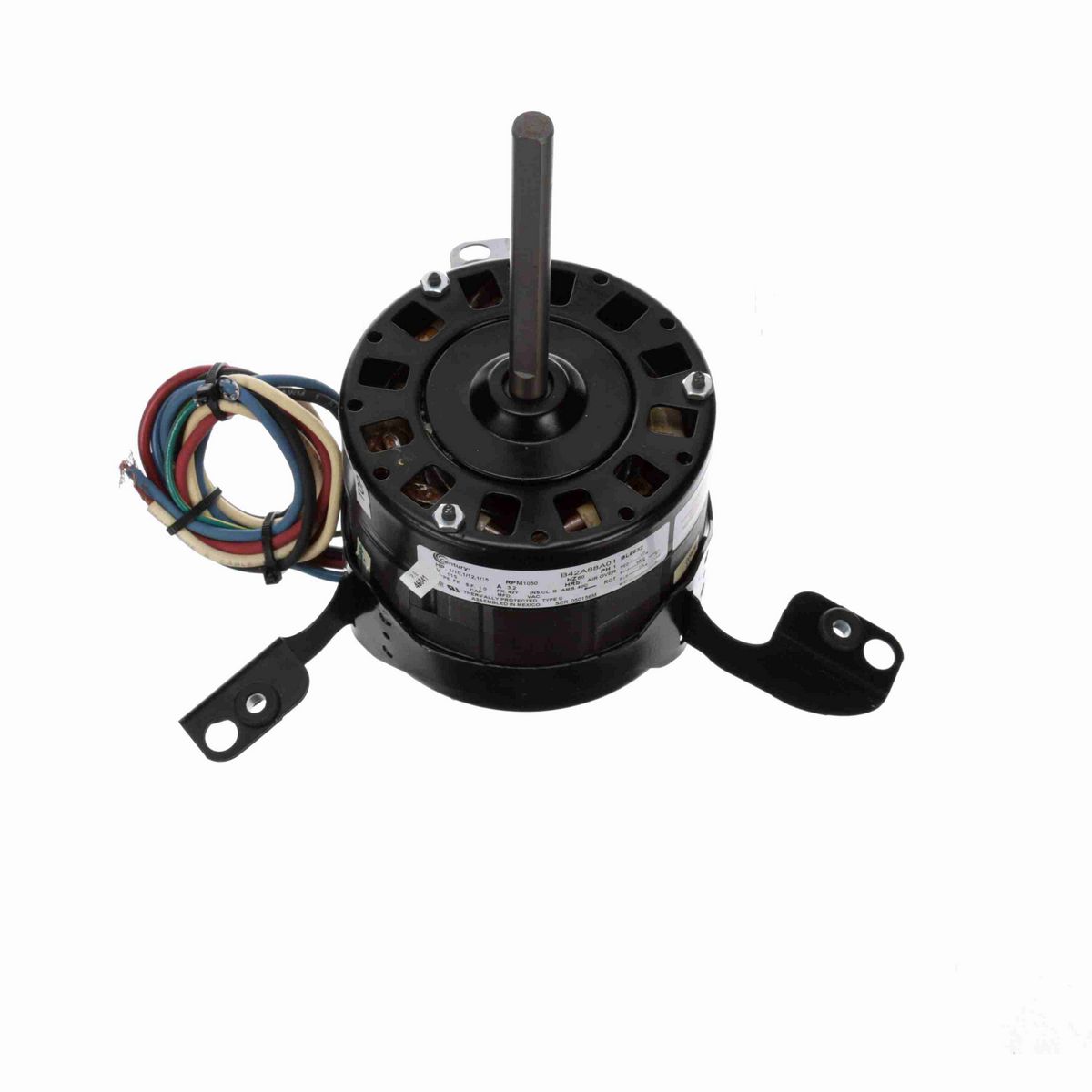

• Furnace Blower - Attic Ventilator - Air Handler - Fan Coil Motor
• 5" Diameter - 42 Frame
• Shaded Pole
• Thermally Protected
• Open Shaft End End-Frame and Lead End End-Frame, Enclosed Shell, Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• 24" Leads
• Flex Mount

Nameplate Specifications

Phase	1
Output HP	1/10,1/12,1/15 Hp
Output KW	0.07 kW
Voltage	115 V
Speed	1050 rpm
Service Factor	1
Frame	42Y
Enclosure	Semi Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	3.2 A
Duty	Air Over
Insulation Class	B
UL	No
CSA	Y
CE	N
Number of Speeds	3

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	6
Rotation	Counterclockwise Lead End
Mounting	Flexible Arms
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	N/A
Shaft Type	Flat
Overall Length	8.84 in
Shaft Diameter	0.500 in
Shaft Extension	4.6 in

General Specifications

UPC	786674014207
Weight	9.00 LB
Packaged Length	12.87 IN
Packaged Width	9.81 IN
Packaged Height	9.81 IN
HTC	8501.40.2040
