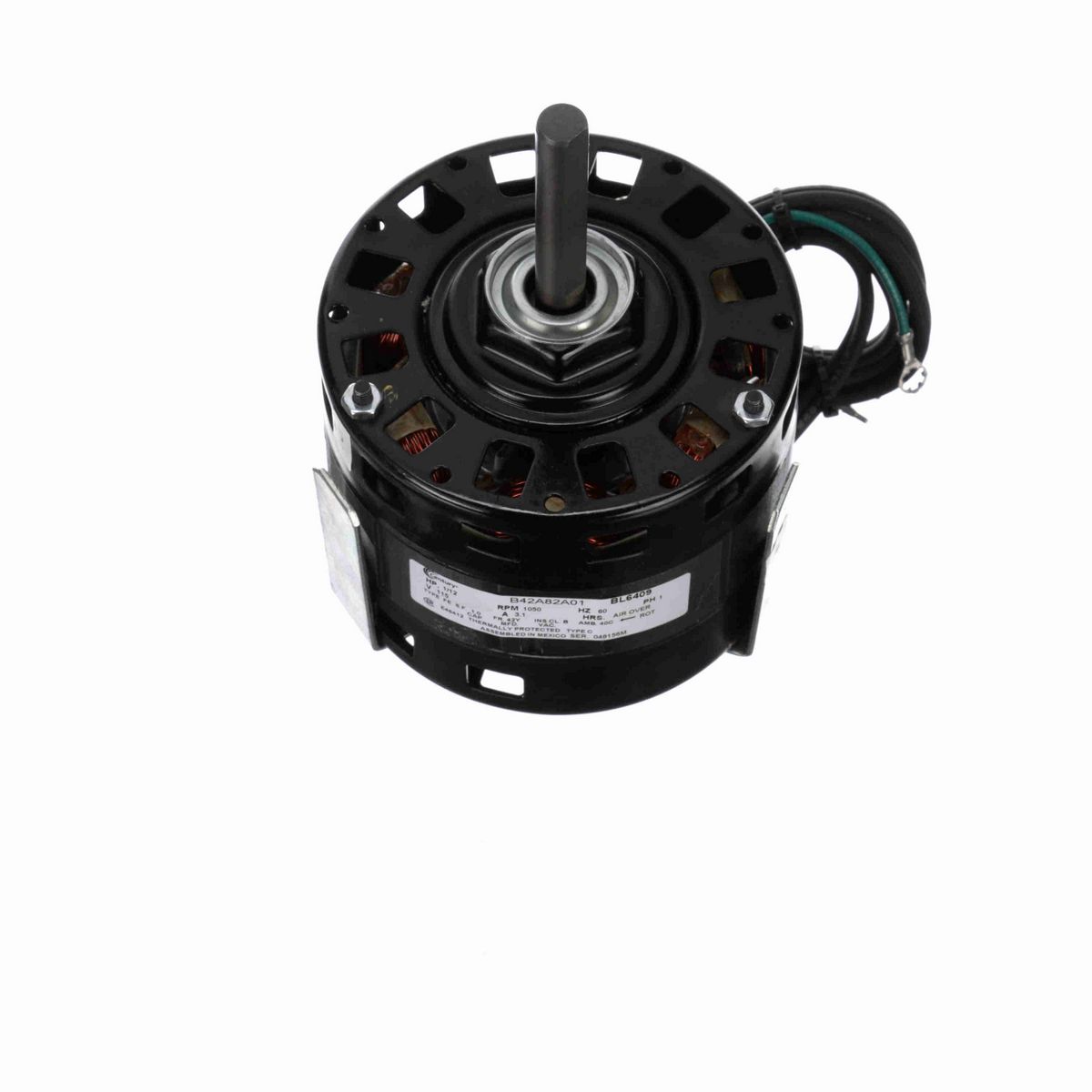

• OEM Direct Replacement Motor
• 5" Diameter - 42 Frame
• Shaded Pole
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• 27" Leads with AMP Pin

Nameplate Specifications

Phase	1
Output HP	1/12 Hp
Output KW	0.06 kW
Voltage	115 V
Speed	1050 rpm
Service Factor	1.0
Frame	42Y
Enclosure	Open Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	3.1 A
Duty	Air Over
Insulation Class	B
UL	No
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	6
Rotation	Counterclockwise Lead End
Mounting	Round Belly Band
Motor Orientation	Any
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	N/A
Shaft Type	Flat
Overall Length	7.41 in
Shaft Diameter	0.500 in
Shaft Extension	3 in

General Specifications

UPC	786674014016
Weight	9.00 LB
Packaged Length	8.87 IN
Packaged Width	5.81 IN
Packaged Height	5.81 IN
HTC	8501.40.2040
Country of Origin	Mexico
