• Sealed Ball Bearings
• Two Speed
• Energy Efficient
• Permanent Split Capacitor
• UL 1081 Design
• High Speed Switchless
• Low Speed Microswitch
• Keyed Shaft
• Meets California Energy Commission Appliance Regulations 2008
• Open Dripproof

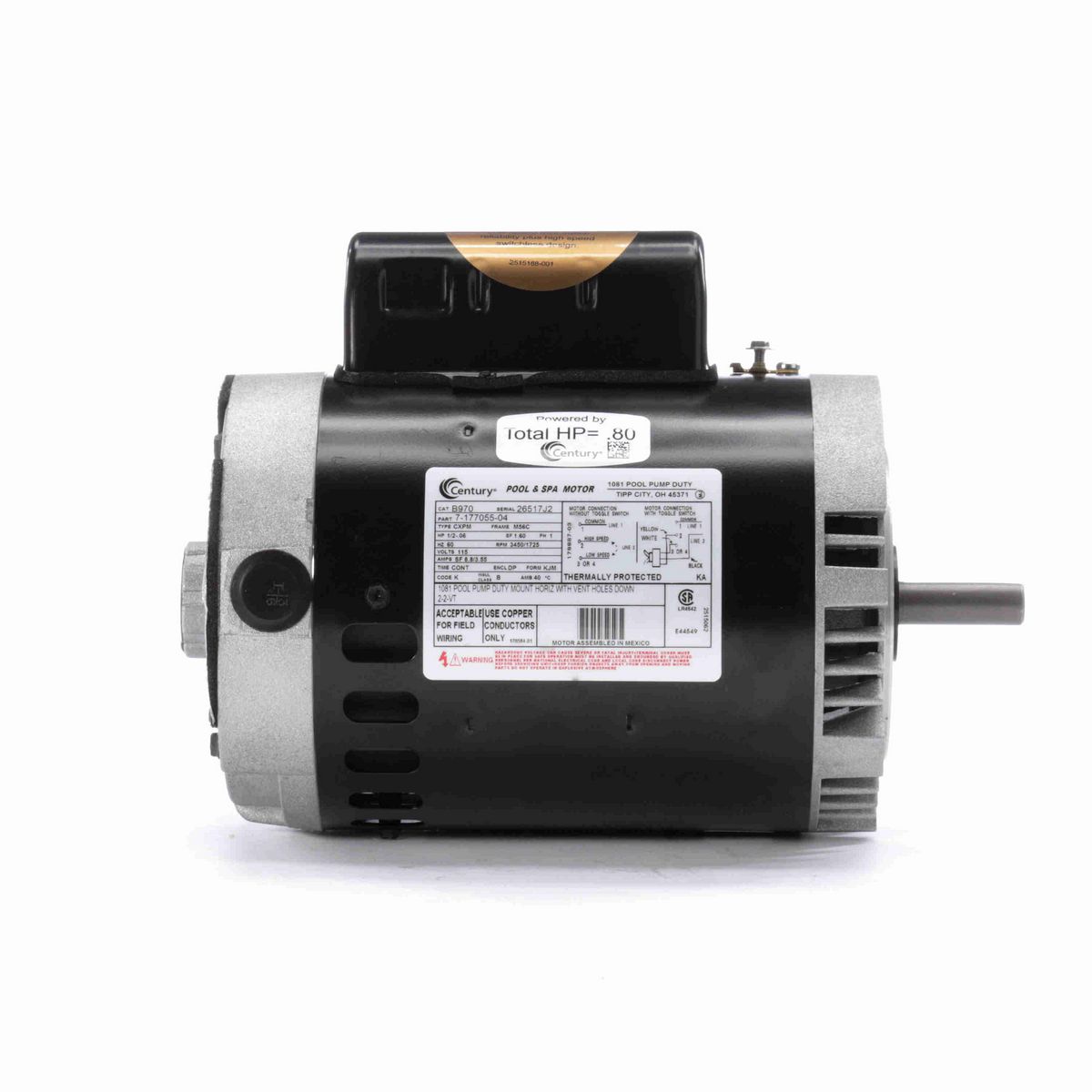

Nameplate Specifications

Phase	1
Output HP	1/2-.06 Hp
Output KW	0.37 kW
Voltage	115 V
Speed	3450/1725 rpm
Service Factor	1.6
Frame	M56C
Enclosure	Drip Proof
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	SF 8.8/3.55 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
Number of Speeds	2-2-VT

Technical Specifications

Electrical Type	Permanent Split Capacitor, High Speed; Split Phase, Low Speed
Poles	2/4
Rotation	Counterclockwise Pump End
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	5/8 Keyed
Overall Length	11.80 in
Frame Length	6.75 in
Shaft Diameter	0.625 in
Shaft Extension	2.07 in

General Specifications

UPC	786674013439
Weight	24.00 LB
Packaged Length	16.00 IN
Packaged Width	9.50 IN
Packaged Height	11.00 IN
HTC	8501.40.4040
Country of Origin	Mexico
