• Sealed Ball Bearings
• Rotation: CW Non-Reversible
• Aluminum Adapter Bracket
• 40°C Ambient
• UL 1081 Design
• 303 Stainless Steel Shaft
• No Base & Rigid Base
• Booster Pump - Cleaner

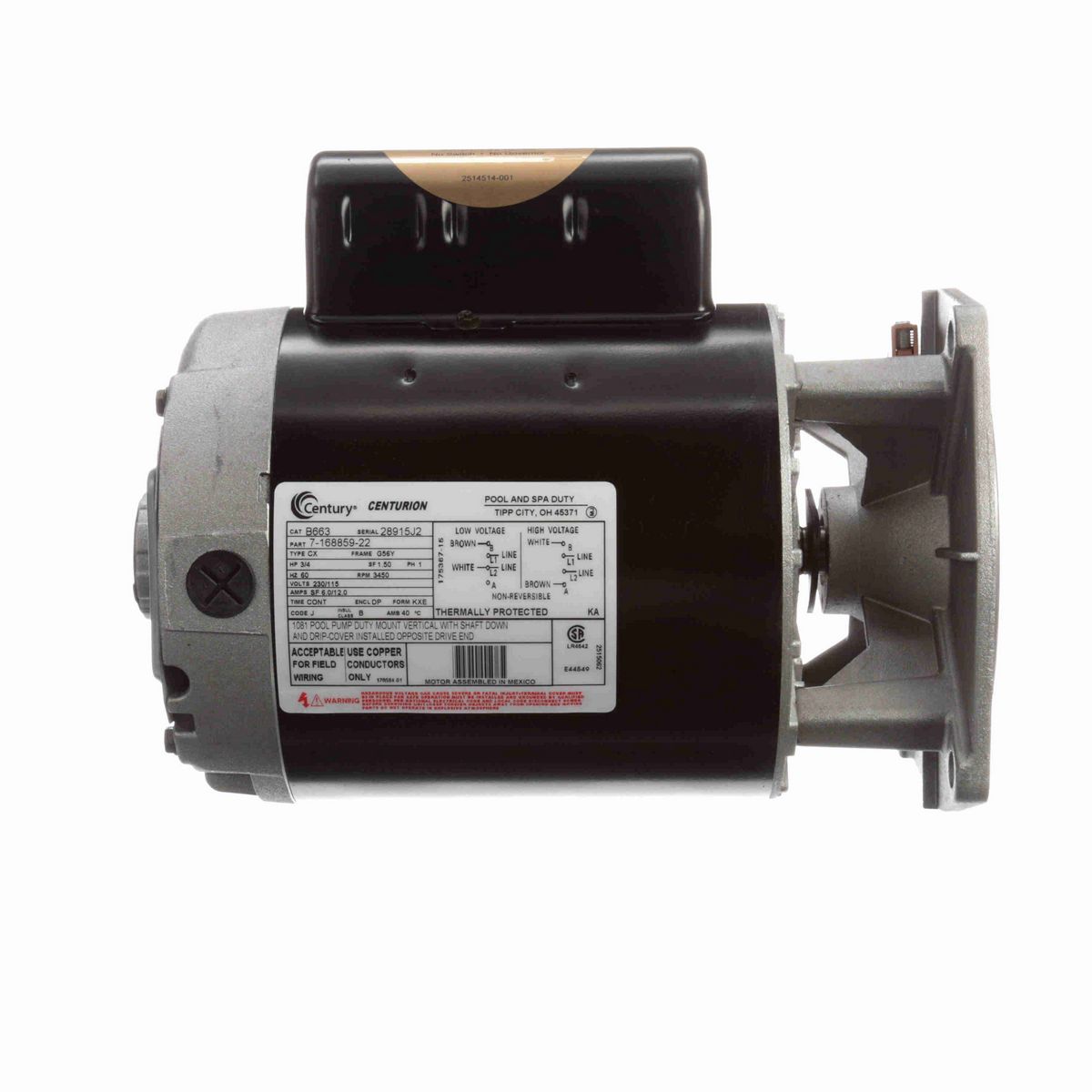

Nameplate Specifications

Phase	1
Output HP	3/4 Hp
Output KW	0.56 kW
Voltage	230/115 V
Speed	3450 rpm
Service Factor	1.5
Frame	G56Y
Enclosure	Drip Proof
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	SF 6.0/12.0 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor, Single Or Dual Voltage
Poles	2
Rotation	Counterclockwise Pump End
Mounting	Special/Non-Standard
Motor Orientation	Vertical
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	7/16 Threaded
Overall Length	10.89 in
Frame Length	6.00 in
Shaft Diameter	0.625 in
Shaft Extension	1.947 in

General Specifications

UPC	786674012791
Weight	25.00 LB
Packaged Length	16.00 IN
Packaged Width	9.00 IN
Packaged Height	10.75 IN
HTC	8501.40.6040
Country of Origin	Mexico
