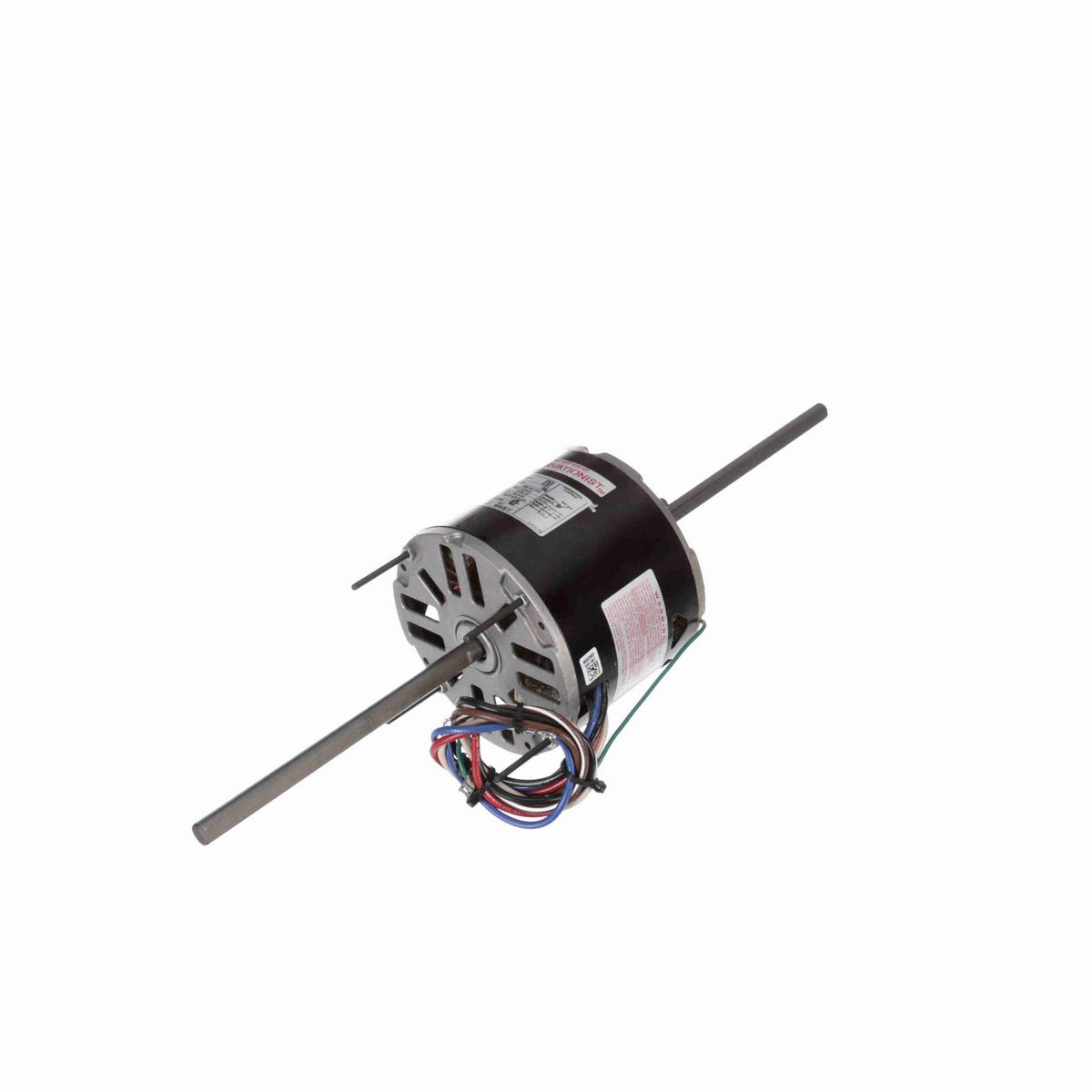

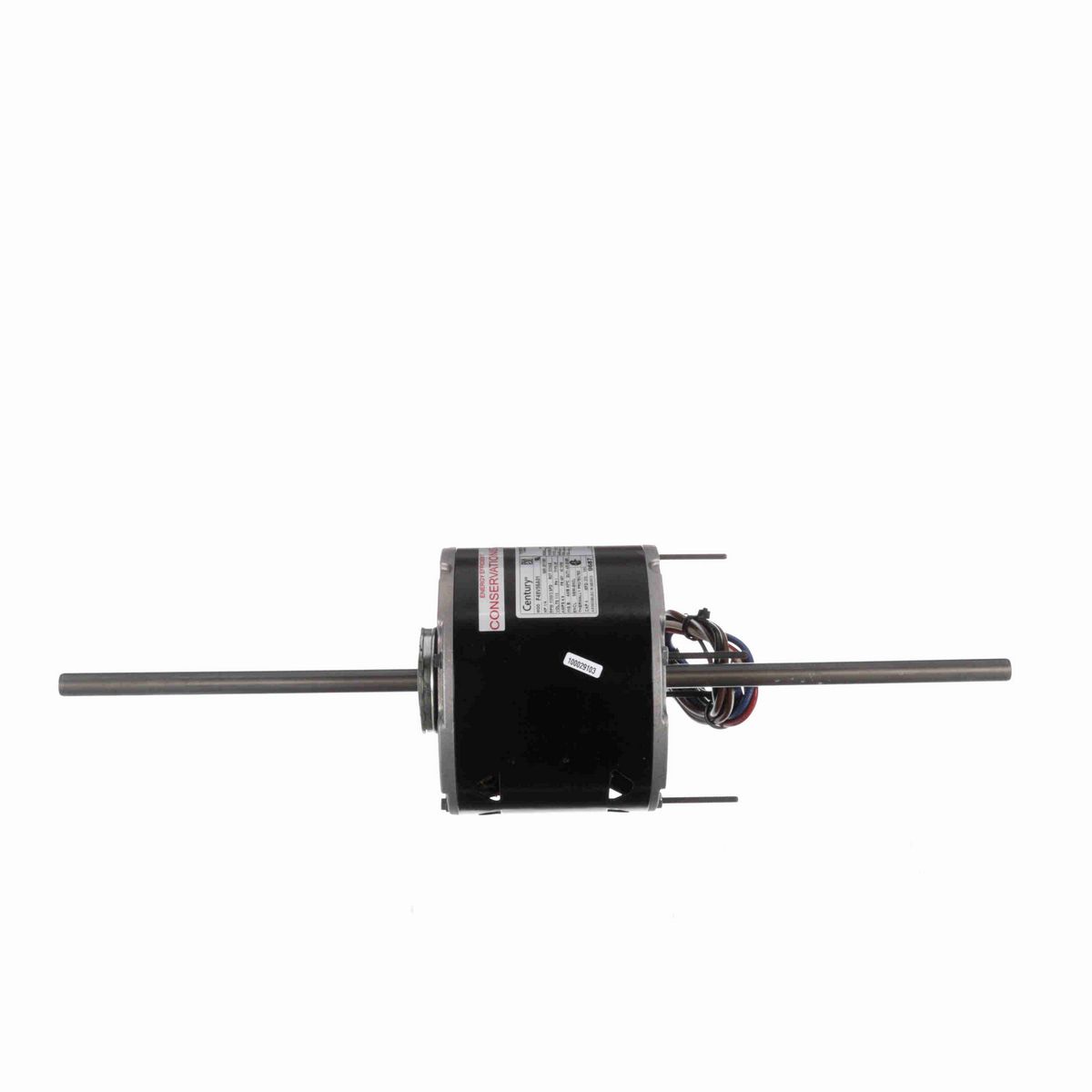

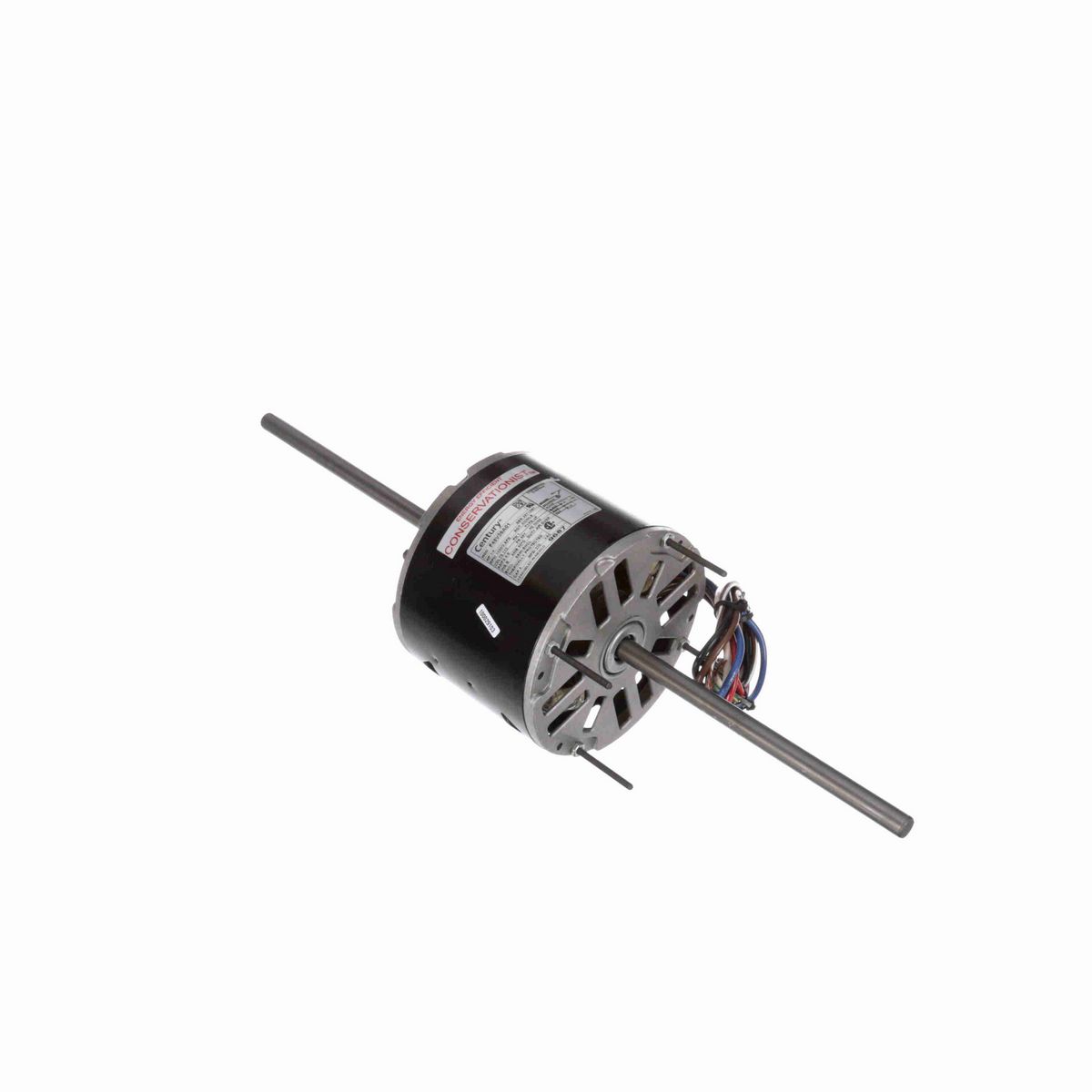

• Fan Coil - Room Air Conditioner - Blower Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Semi-Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Double Shaft with Flat
• 14" Leads
• Extened Studs Opposite Lead End, Resilient Ring Mounting

Nameplate Specifications

Phase	1
Output HP	1/4 Hp
Output KW	0.19 kW
Voltage	115 V
Speed	1550 rpm
Service Factor	1.0
Frame	48Y
Enclosure	Semi Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60/50 Hz
Current	4.9 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	3

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Counterclockwise Lead End
Mounting	Extended Studs
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	20.00 in
Frame Length	3.38 in
Shaft Diameter	0.500 in
Shaft Extension	7.5X.5X8.0 in

General Specifications

UPC	786674009586
Weight	15.00 LB
Packaged Length	22.87 IN
Packaged Width	6.81 IN
Packaged Height	6.81 IN
HTC	8501.40.4040
