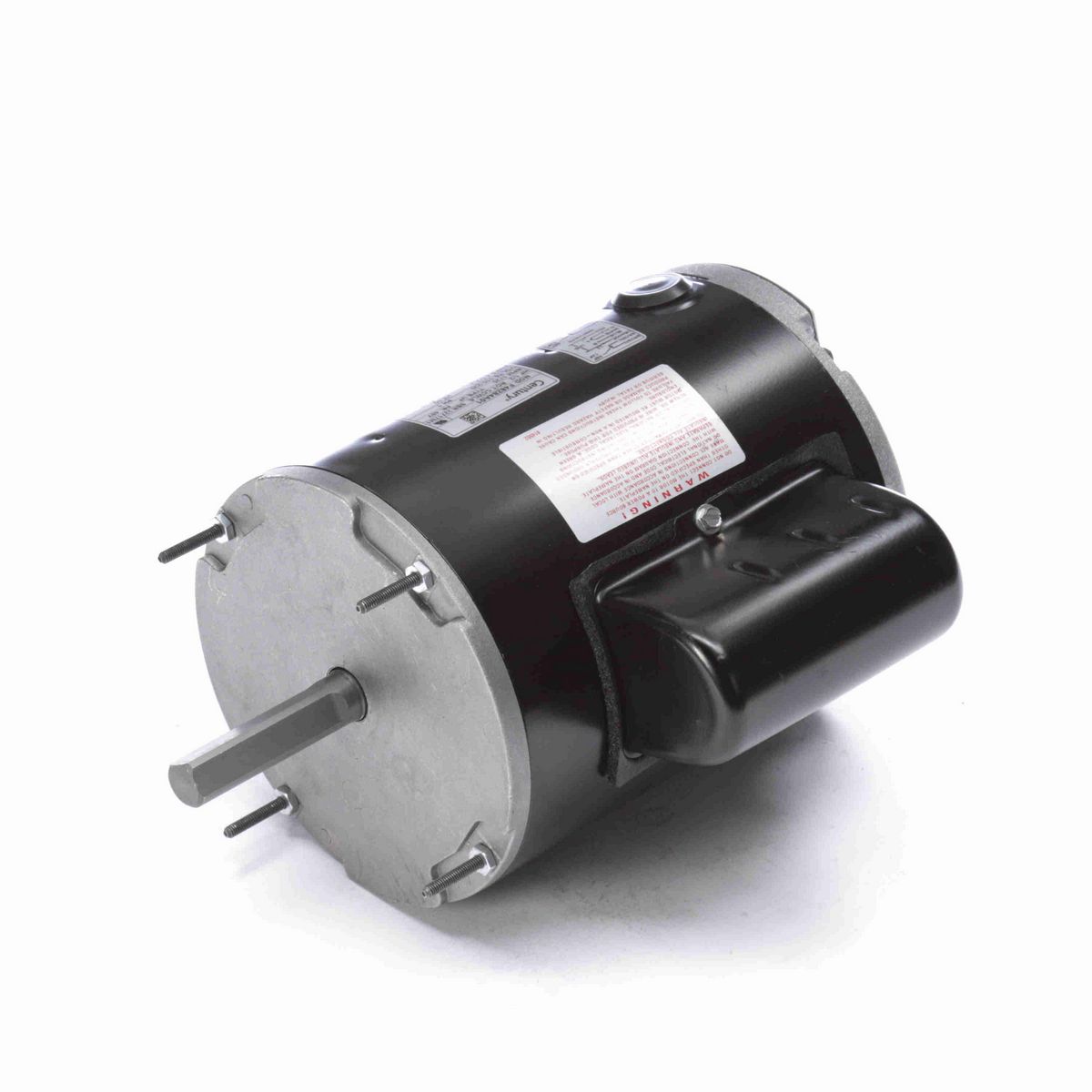

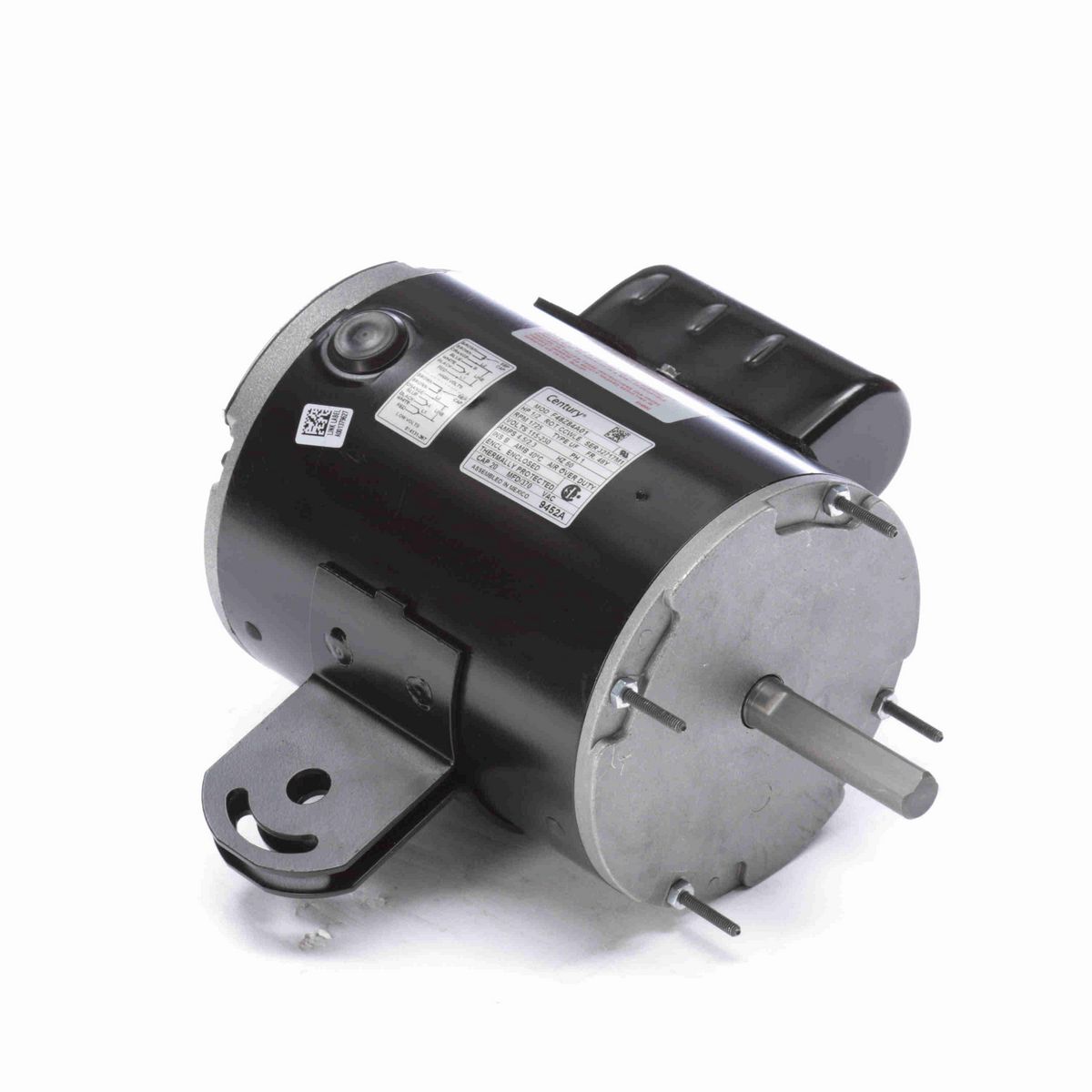

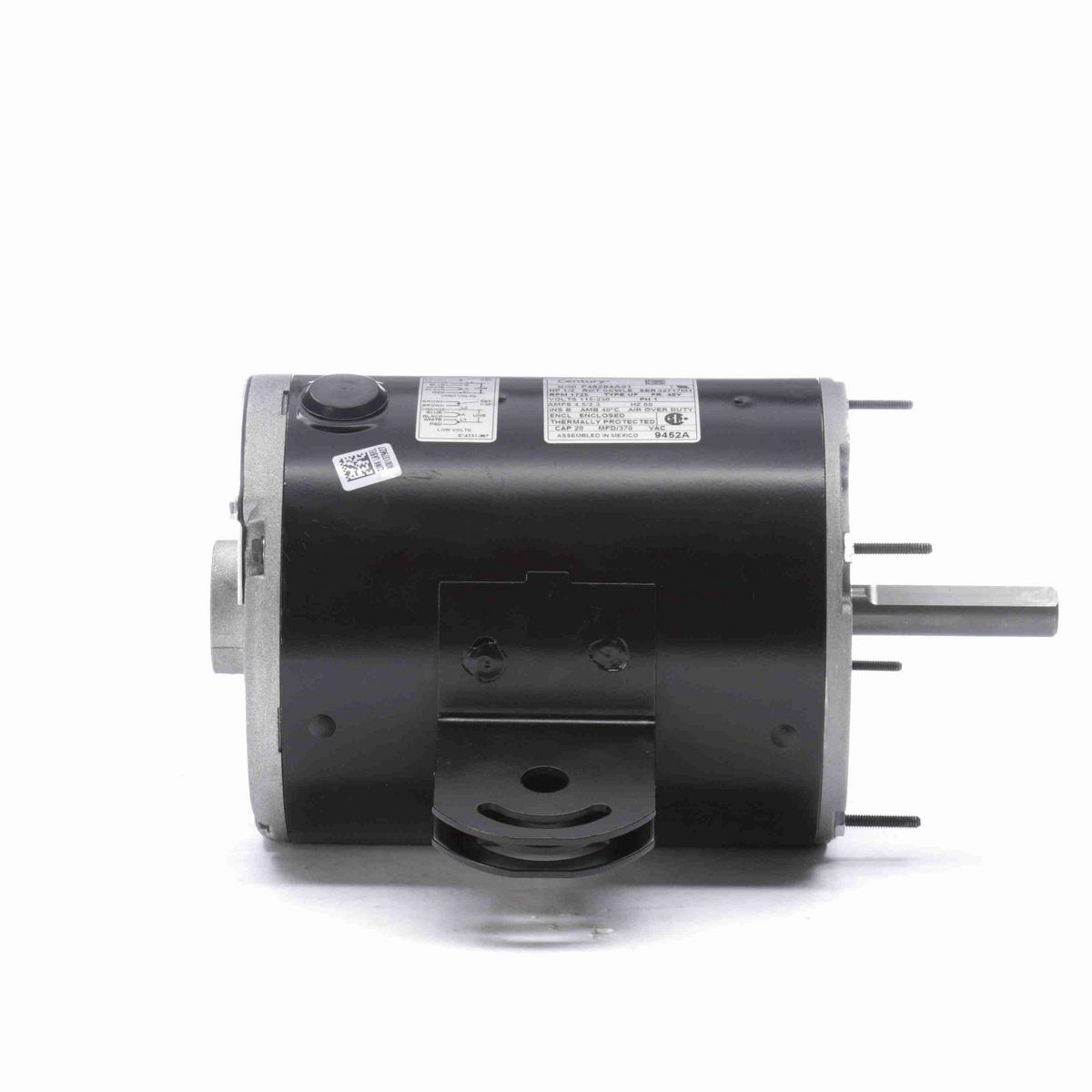

• Pedestal Fan Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 20 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 5/8" Diameter Shaft with Flat
• 5.5" Leads
• Yoke Mount

Nameplate Specifications

Phase	1
Output HP	1/2 Hp
Output KW	0.37 kW
Voltage	115/230 V
Speed	1725 rpm
Service Factor	1.0
Frame	F48Y
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	4.5/2.3 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Counterclockwise Lead End
Mounting	Yoke
Motor Orientation	Any
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Double Flat
Overall Length	10.05 in
Frame Length	6.25 in
Shaft Diameter	0.630 in
Shaft Extension	2.56 in

General Specifications

UPC	786674011329
Weight	23.00 LB
Packaged Length	15.00 IN
Packaged Width	13.00 IN
Packaged Height	10.50 IN
HTC	8501.40.4040
