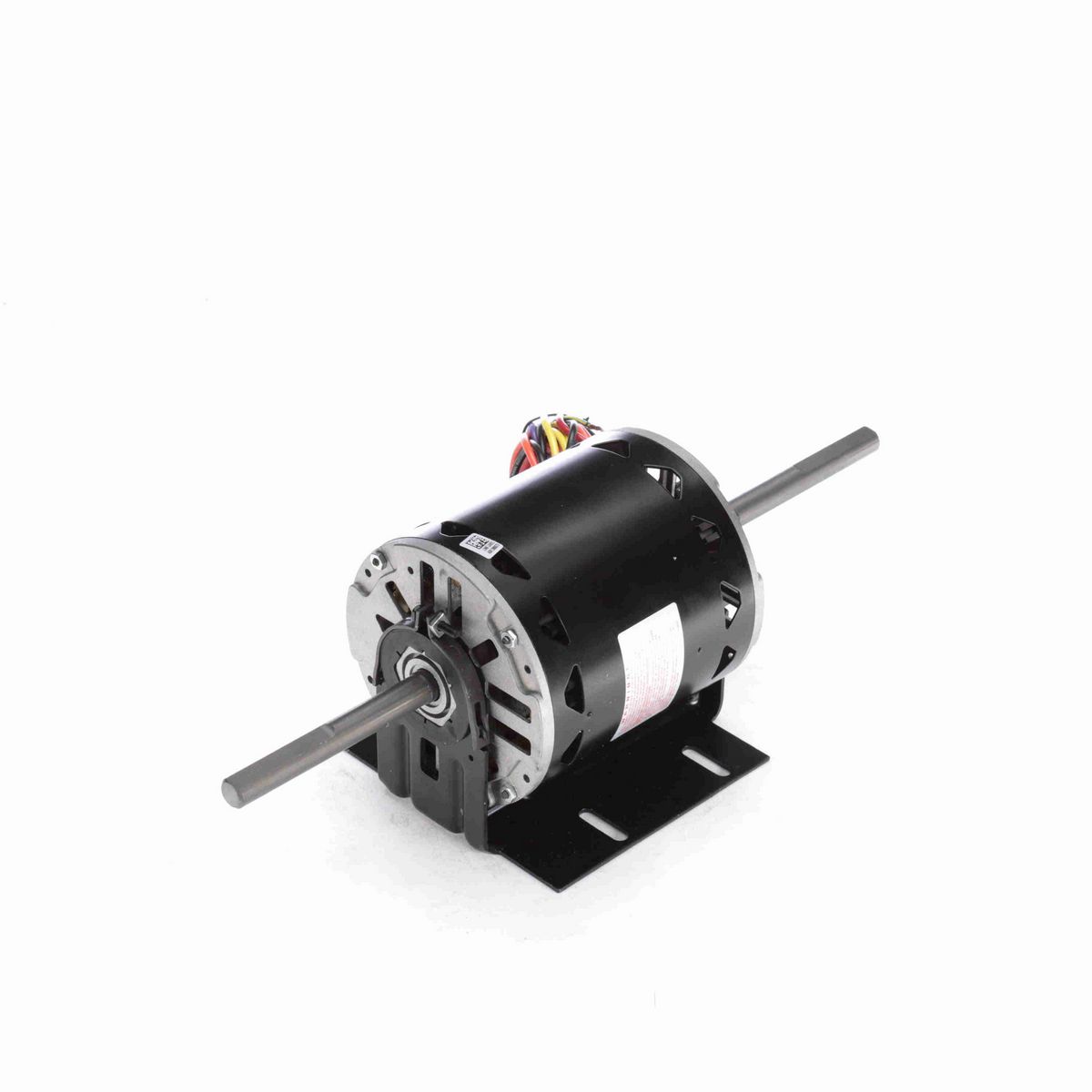

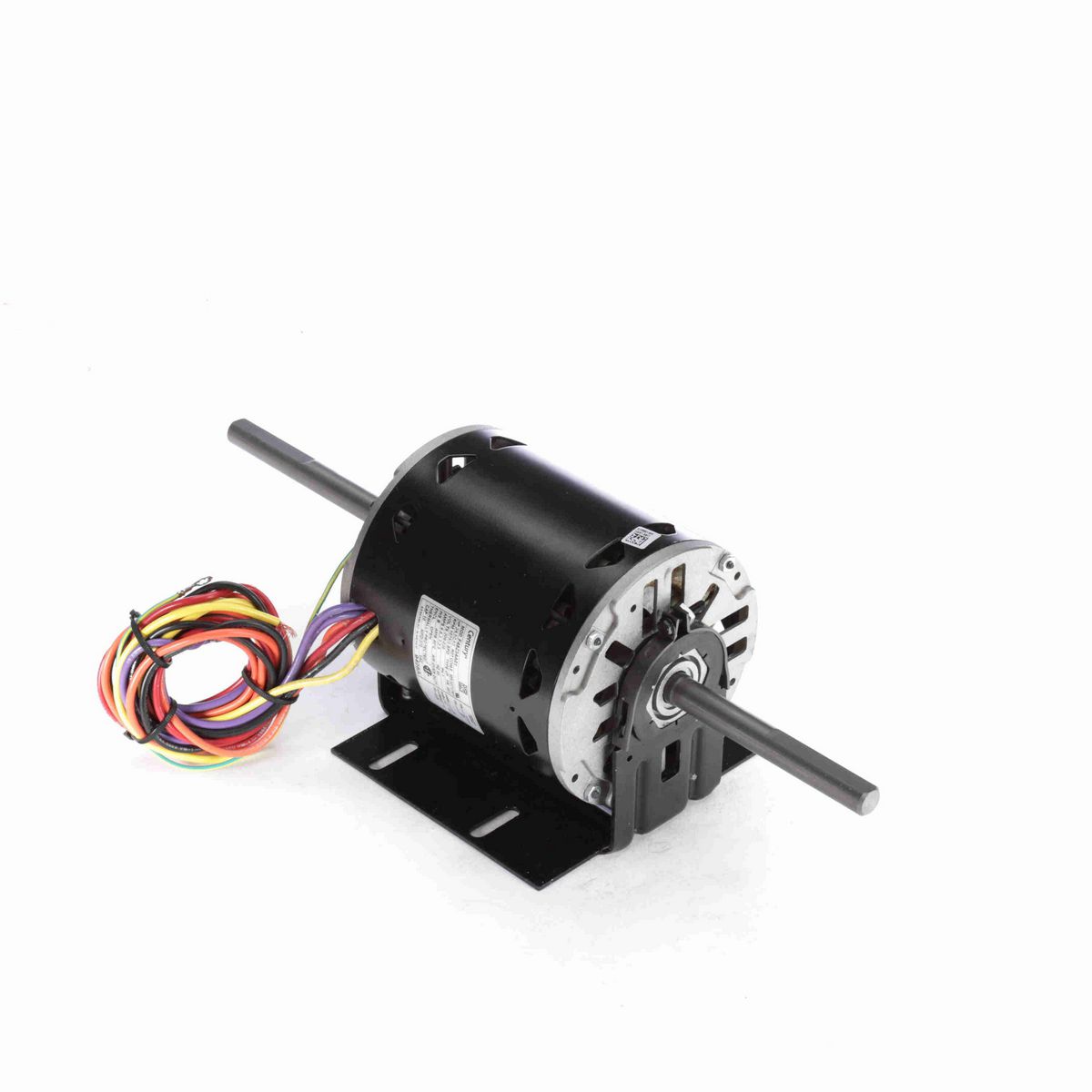

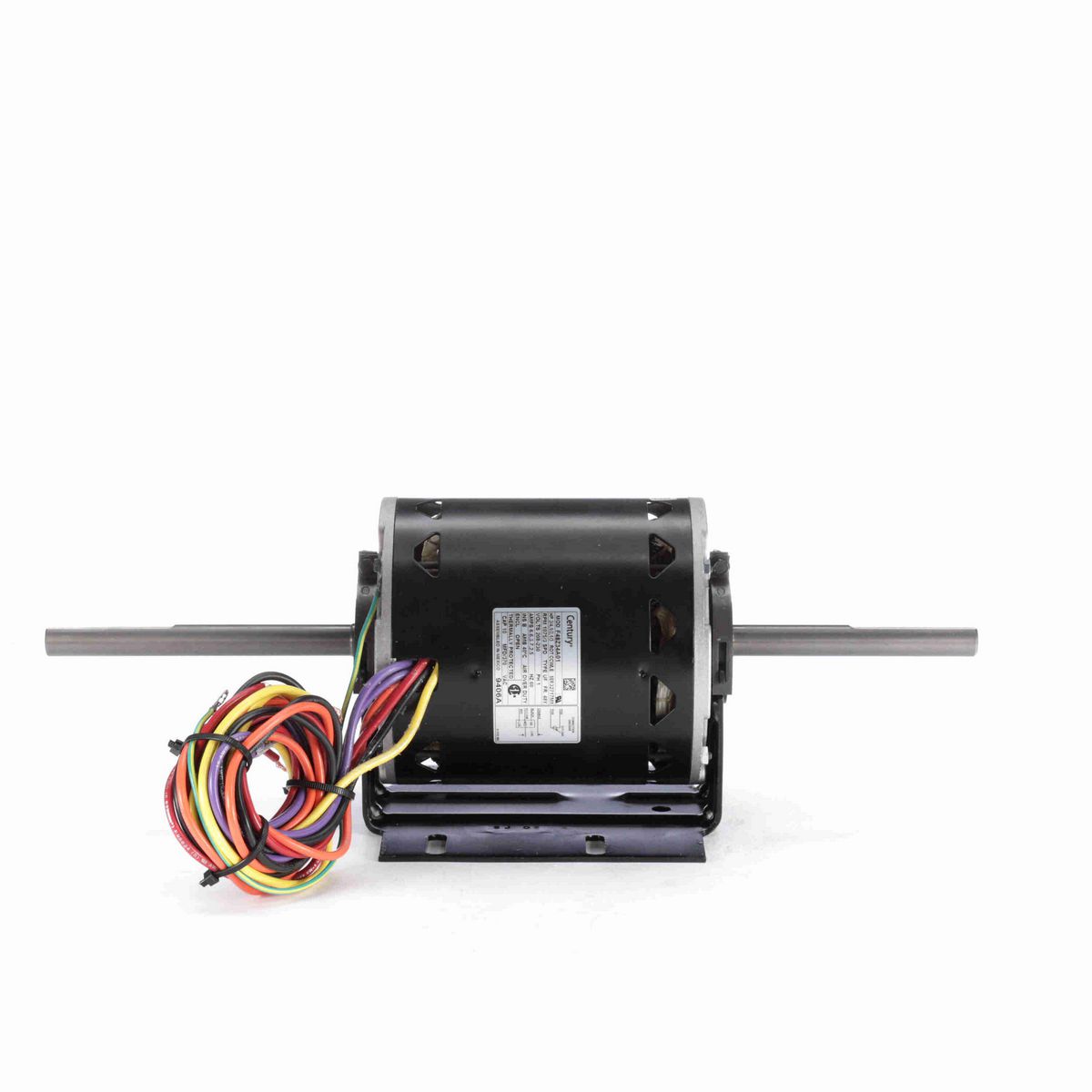

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 5/8" Diameter Double Shaft with Flat
• 54" Leads
• Resilient Base

Nameplate Specifications

Phase	1
Output HP	3/4,1/2,1/3 Hp
Output KW	0.56 kW
Voltage	208-230 V
Speed	1075 rpm
Service Factor	1
Frame	48Y
Enclosure	Open Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	6.6,3.7,2.5 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	3

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Counterclockwise Lead End
Mounting	Resilient Base
Motor Orientation	Any
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	18.00 in
Frame Length	5.63 in
Shaft Diameter	0.625 in
Shaft Extension	6.5 X .6 X 5.3 in

General Specifications

UPC	786674011213
Weight	23.00 LB
Packaged Length	23.00 IN
Packaged Width	10.00 IN
Packaged Height	9.00 IN
HTC	8501.40.4040
Country of Origin	India
