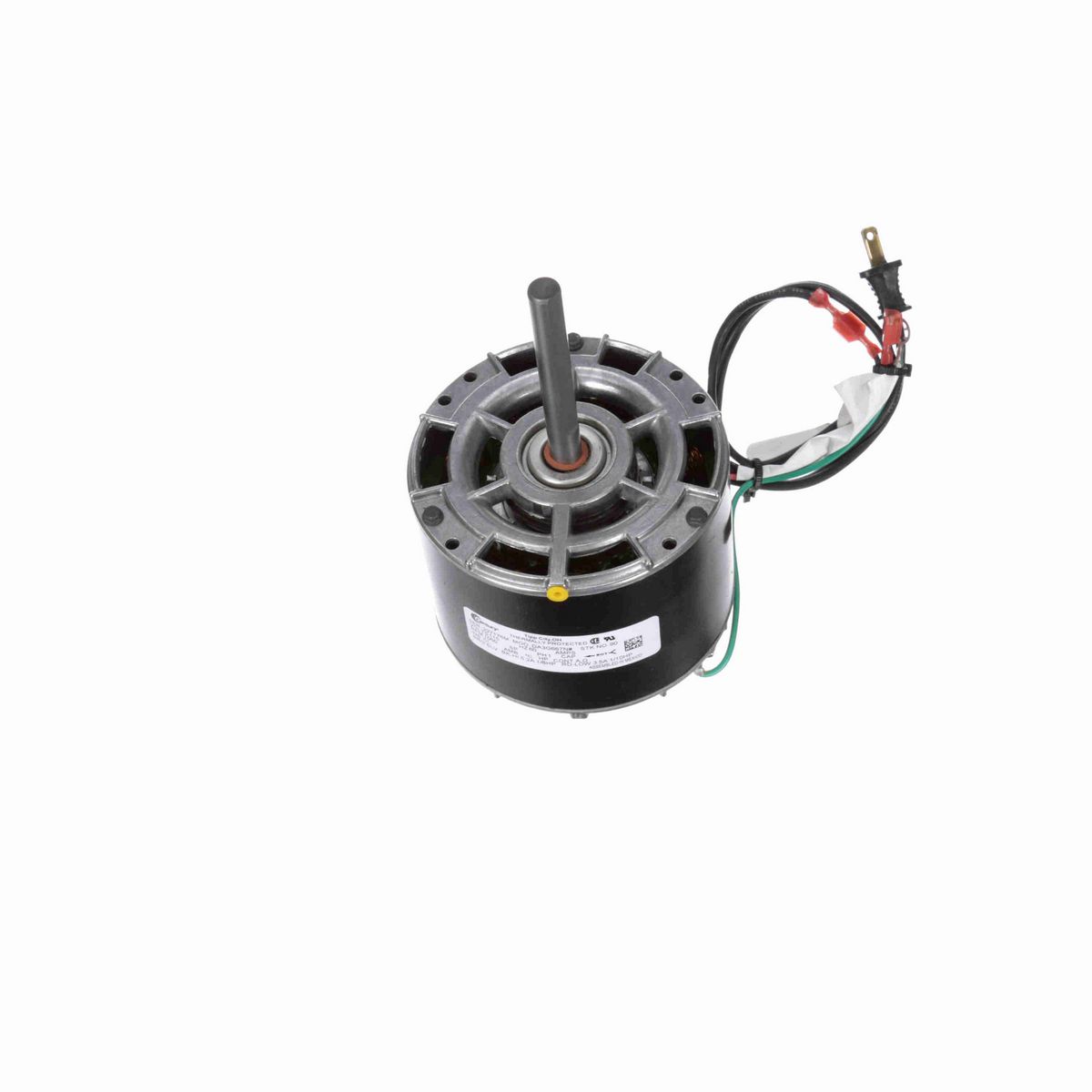

• OEM Direct Replacement Motor
• 5" Diameter - 42 Frame
• Shaded Pole
• Thermally Protected
• Open Air Over
• Class A Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• 16" Leads with Molded Plug
• Mounting Bracket

Nameplate Specifications

Phase	1
Output HP	1/8, 1/10 Hp
Output KW	0.10 kW
Voltage	115 V
Speed	1050 rpm
Service Factor	1
Frame	42
Enclosure	Open Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	5.3-3.2 A
Duty	Continuous Air Over
Insulation Class	A
UL	Recognized
CSA	Y
CE	N
Number of Speeds	2

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	6
Rotation	Clockwise Shaft End
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	7.46 in
Frame Length	3.17 in
Shaft Diameter	0.500 in
Shaft Extension	3.71 in

General Specifications

UPC	786674006103
Weight	9.00 LB
Packaged Length	8.81 IN
Packaged Width	6.88 IN
Packaged Height	6.81 IN
HTC	8501.40.4040
