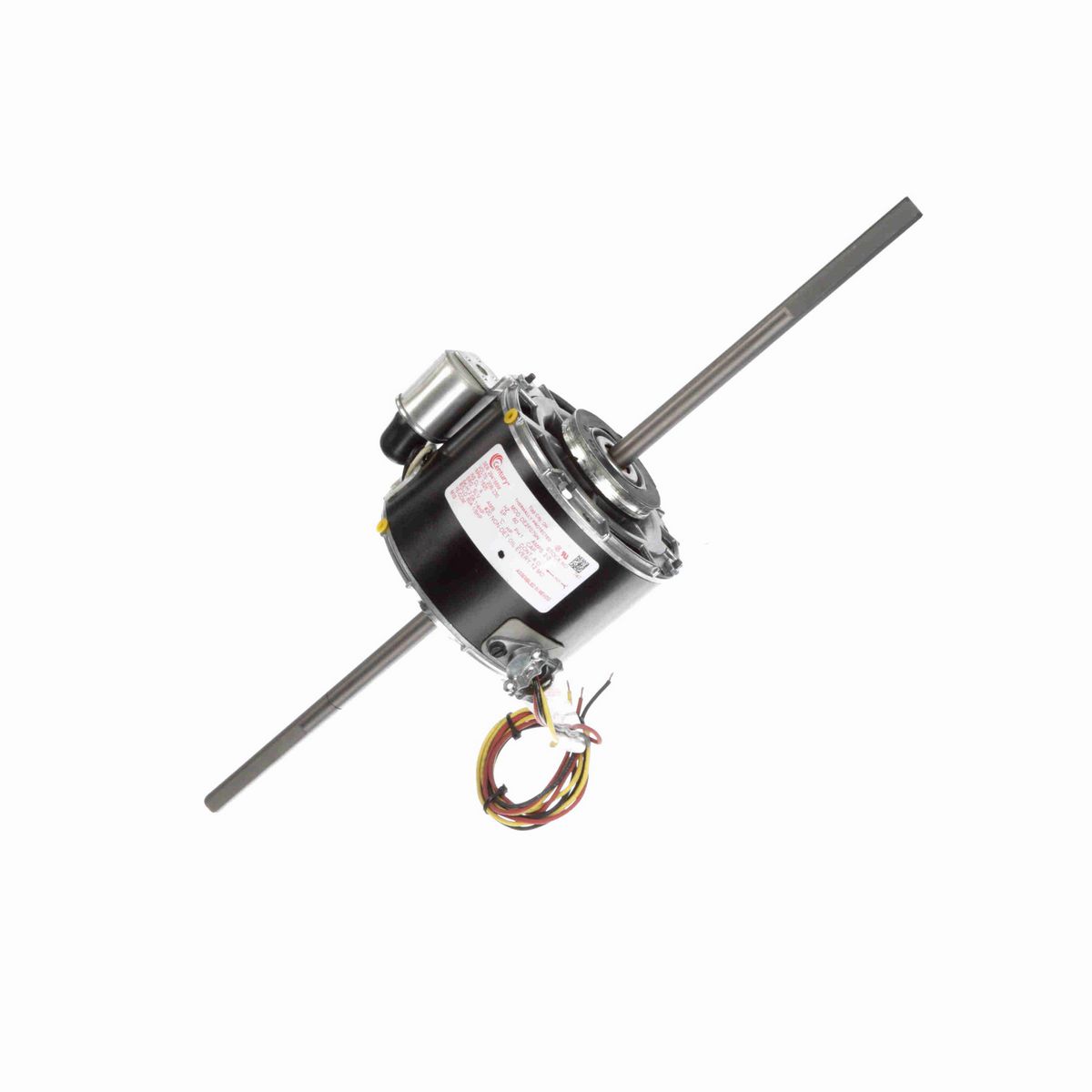

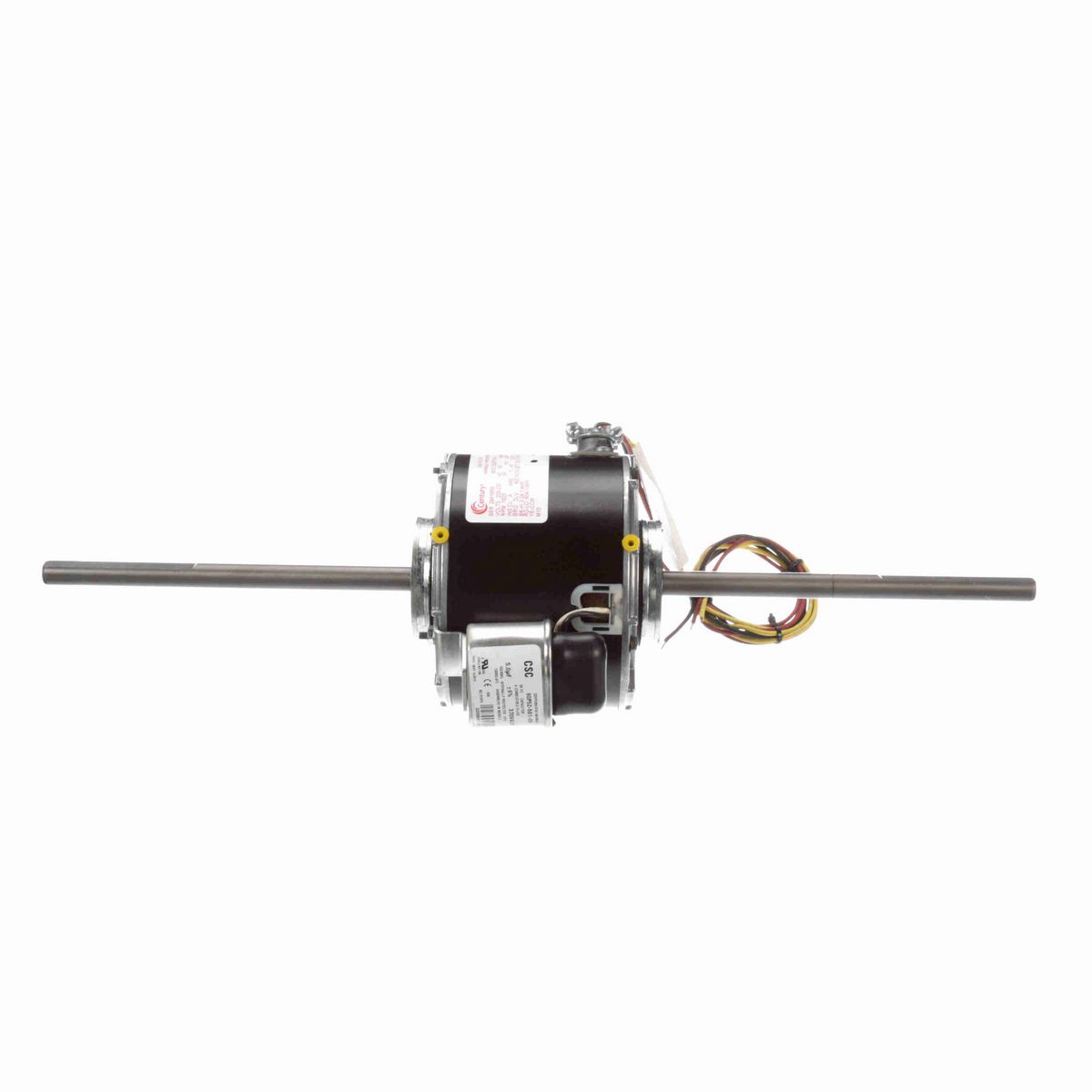

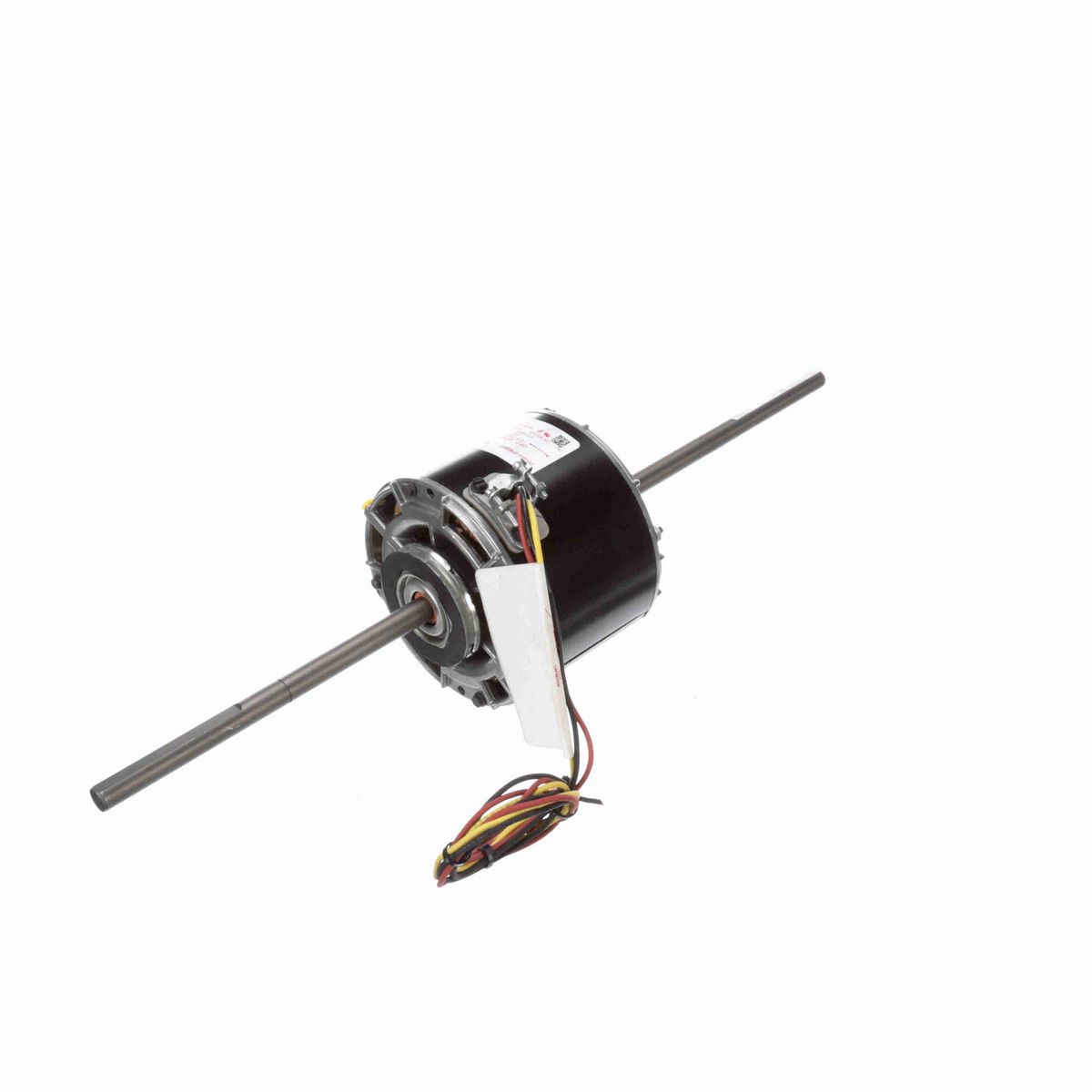

• OEM Direct Replacement Motor
• 5" Diameter - 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class A Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Double Shaft with Flat
• 33" Leads
• Resilient Ring Mounting

Nameplate Specifications

Phase	1
Output HP	1/4, 1/8 Hp
Output KW	0.19 kW
Voltage	208-230 V
Speed	1625 rpm
Service Factor	1
Frame	42
Enclosure	Open Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	2.0 A
Duty	Continuous Air Over
Insulation Class	A
UL	Recognized
CSA	Y
CE	N
Number of Speeds	2

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	4
Rotation	Counterclockwise Lead End
Mounting	Resilient Rings
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	16.75 in
Frame Length	3.17 in
Shaft Diameter	0.500 in
Shaft Extension	7.88X.5X7.87 in

General Specifications

UPC	786674007889
Weight	10.00 LB
Packaged Length	20.18 IN
Packaged Width	6.81 IN
Packaged Height	6.50 IN
HTC	8501.40.4040
