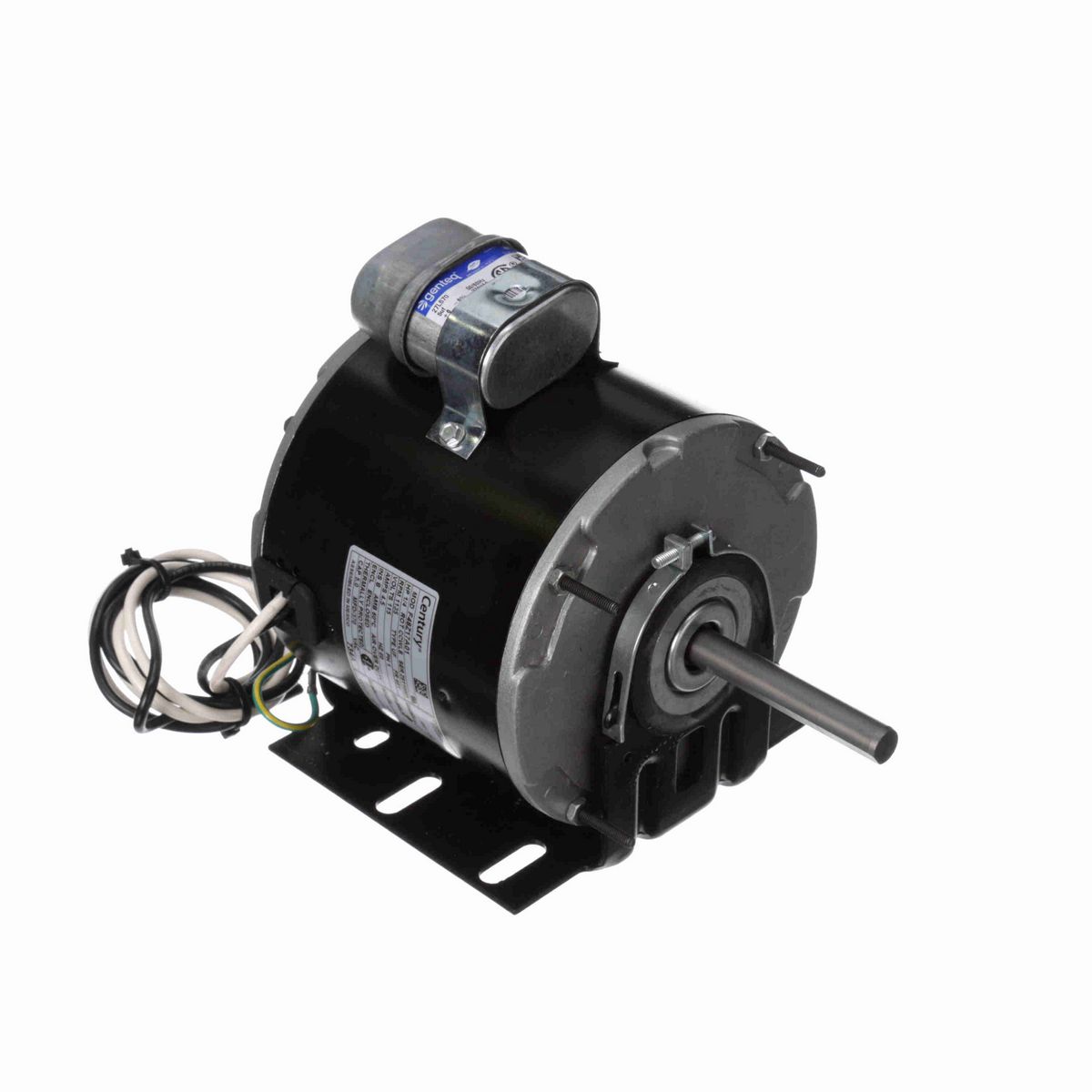

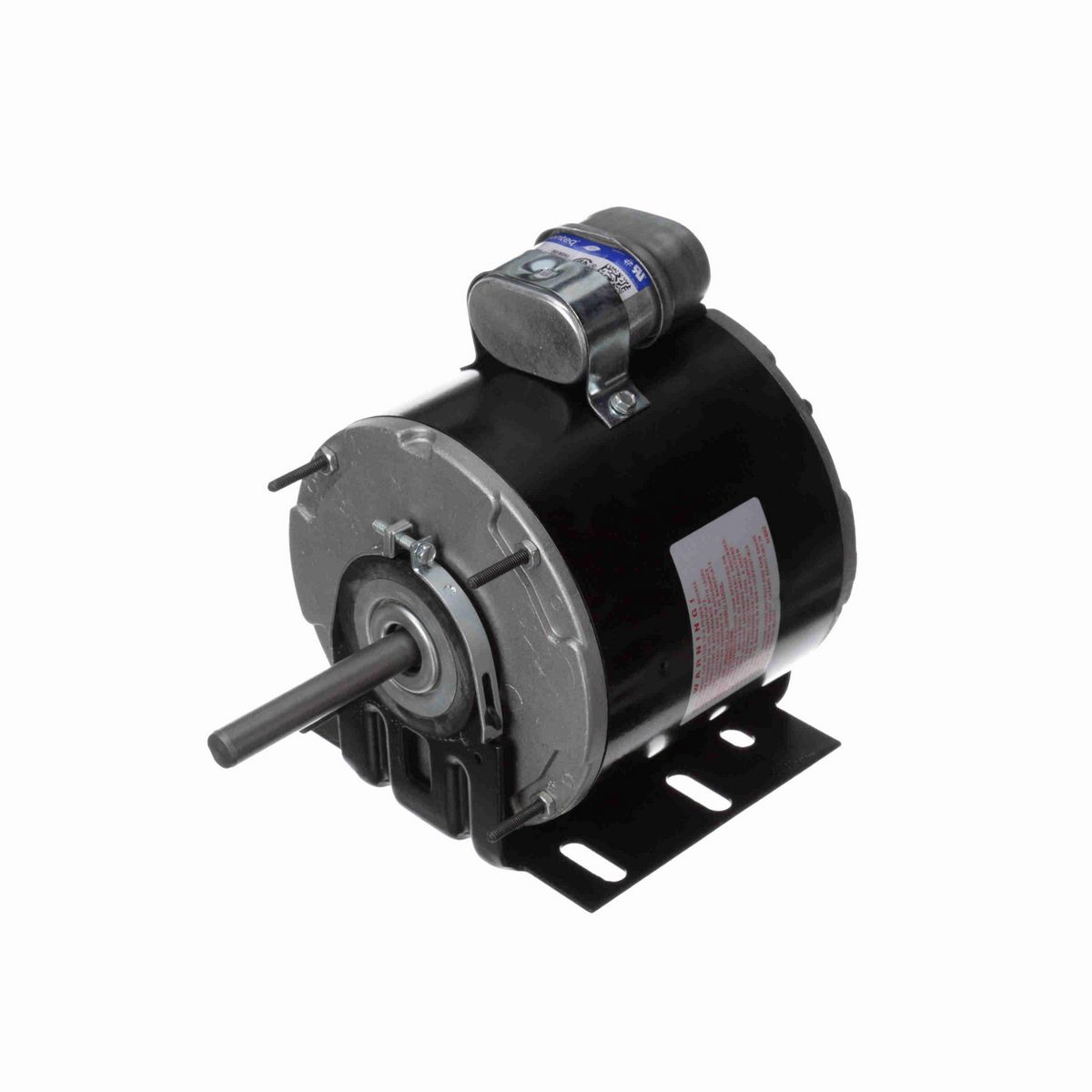

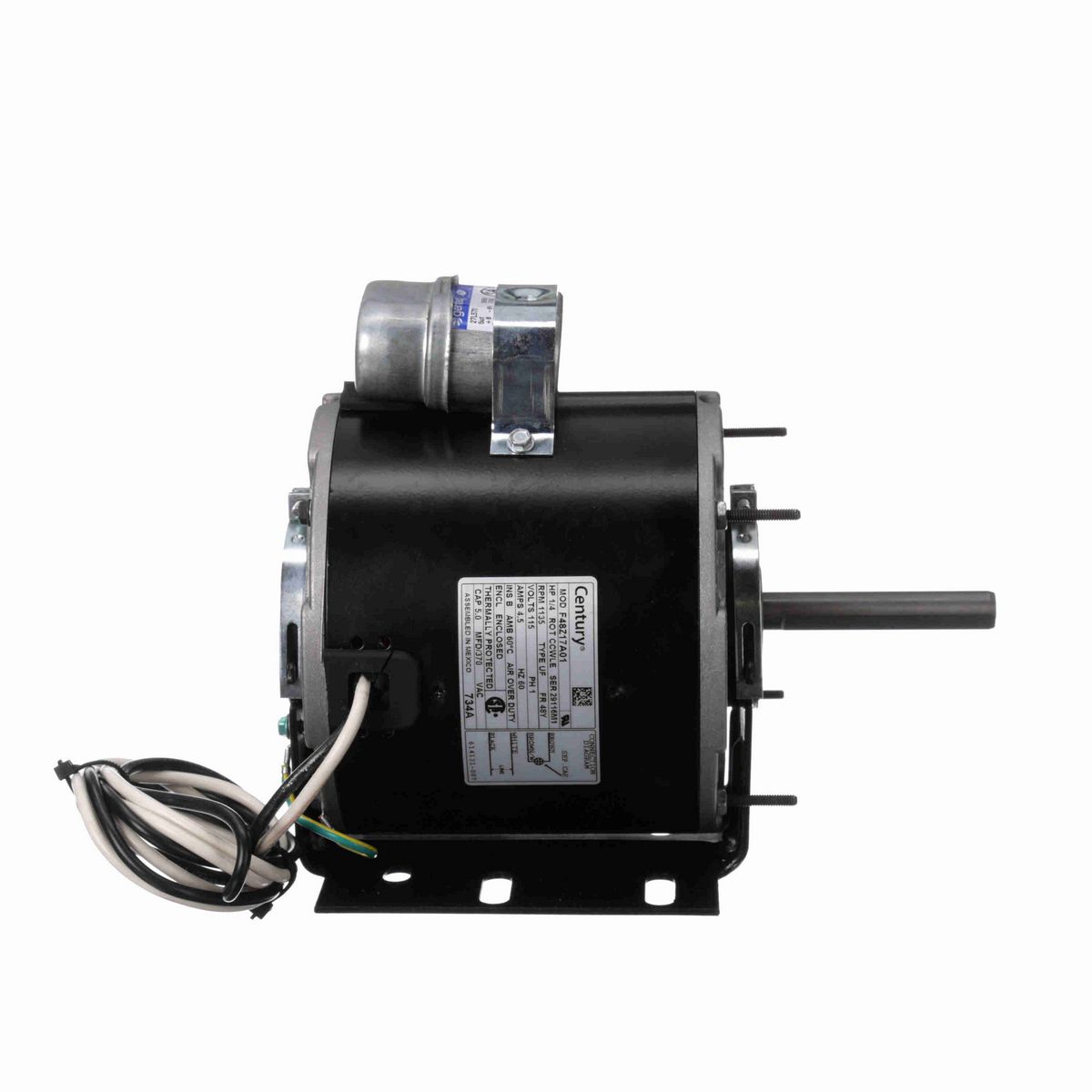

• Unit Heater Fan Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air over
• Class B Insulation, 60°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• 36" Leads
• Resilient Base

Nameplate Specifications

Phase	1
Output HP	1/4 Hp
Output KW	0.19 kW
Voltage	115 V
Speed	1135 rpm
Service Factor	1.0
Frame	F48Y
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Ambient Temperature	60 °C
Frequency	60 Hz
Current	4.5 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Counterclockwise Lead End
Mounting	Resilient Base
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	8.88 in
Frame Length	4.38 in
Shaft Diameter	0.500 in
Shaft Extension	3.39 in

General Specifications

UPC	786674010636
Weight	16.00 LB
Packaged Length	11.00 IN
Packaged Width	8.00 IN
Packaged Height	9.00 IN
HTC	8501.40.4040
