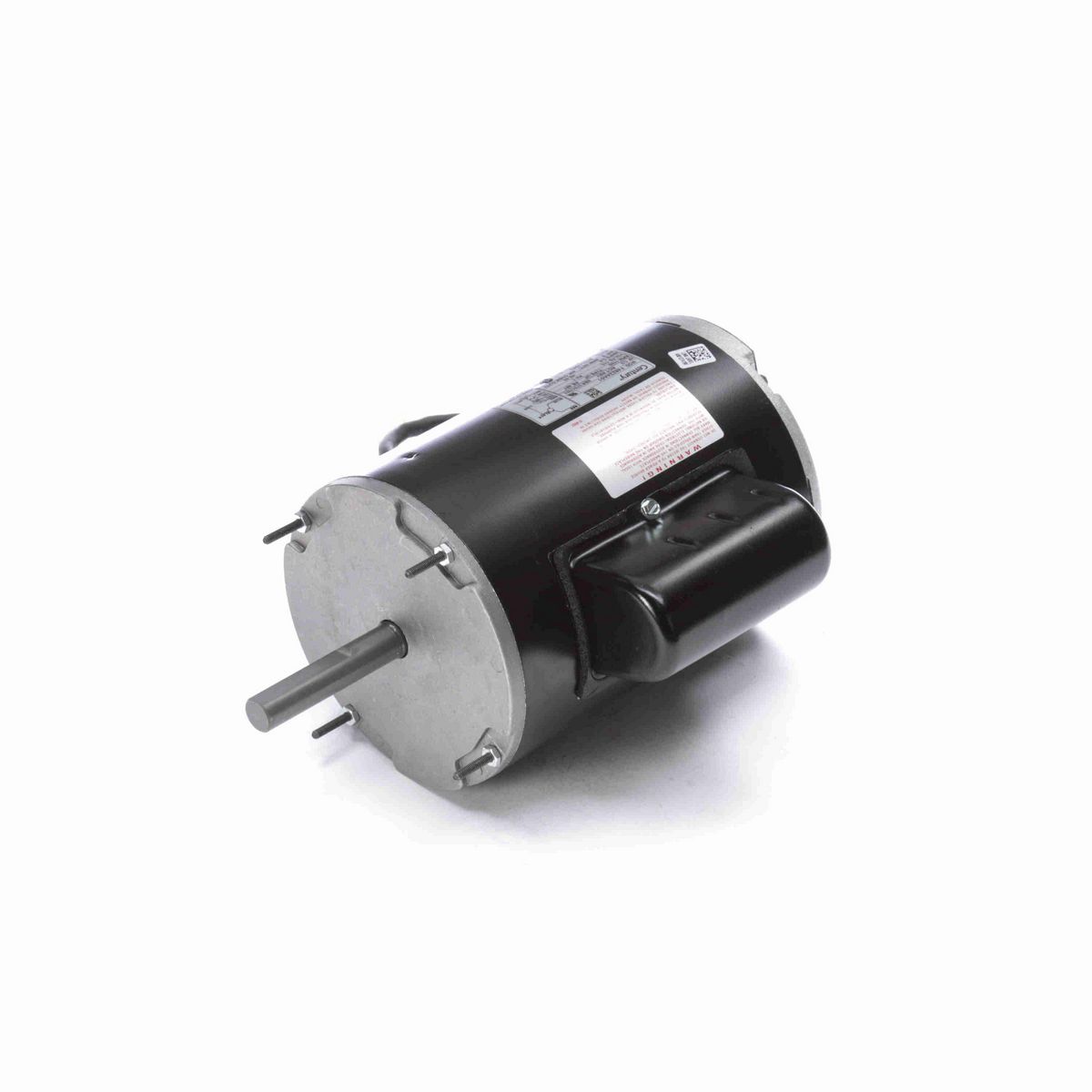

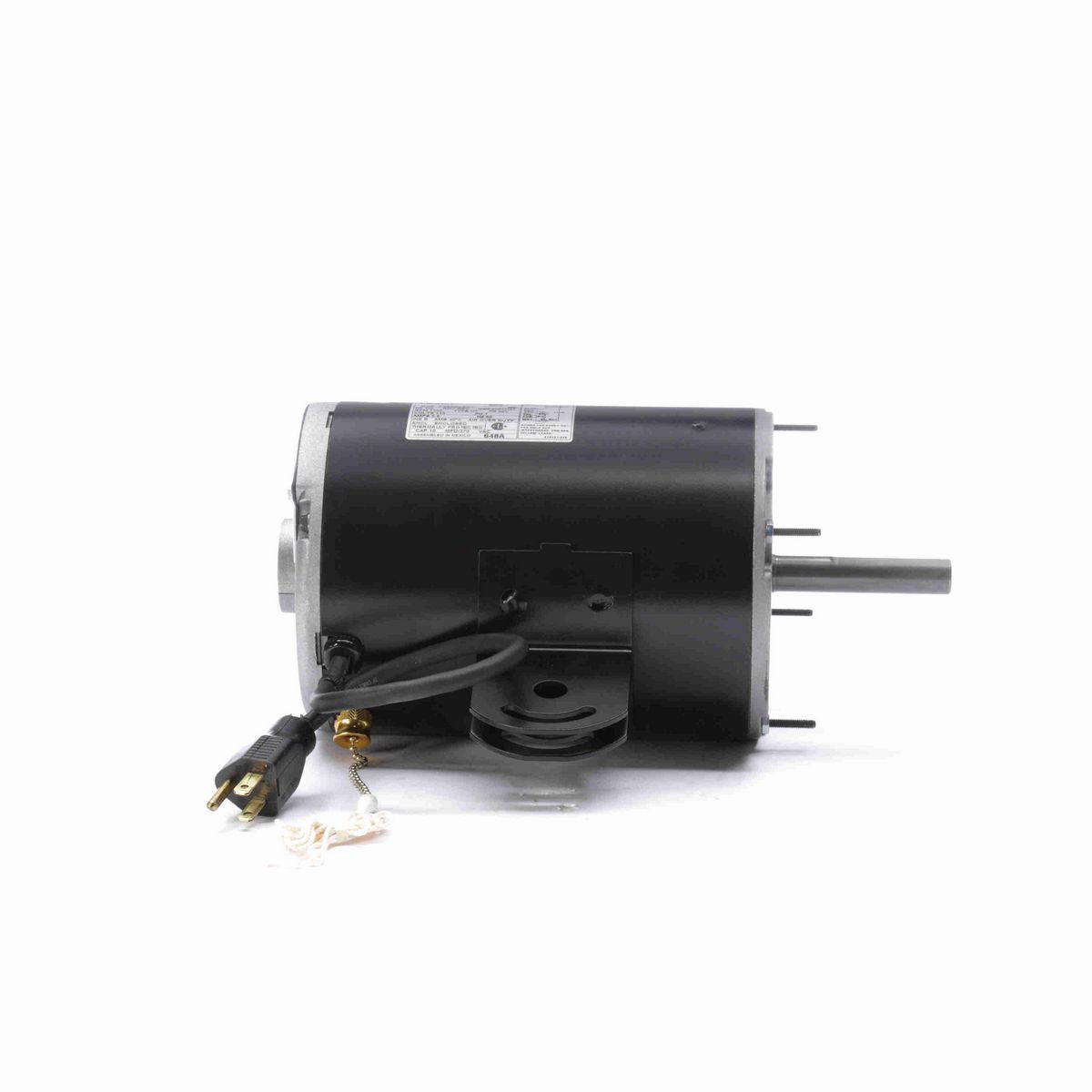

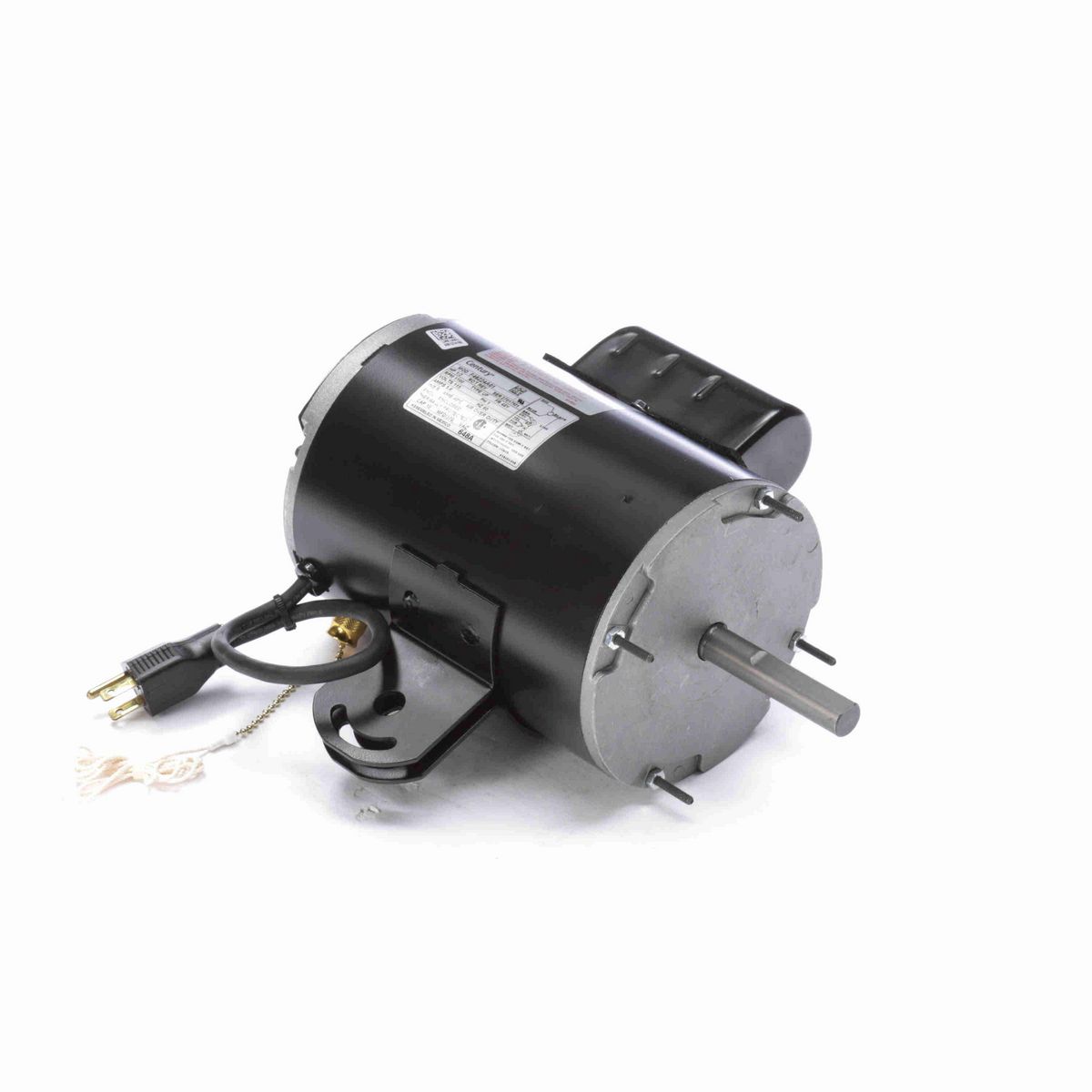

• Pedestal Fan Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 5/8" Diameter Shaft with Flat
• 5.5" Leads with Molded Plug
• Yoke Mount

Nameplate Specifications

Phase	1
Output HP	1/2 Hp
Output KW	0.37 kW
Voltage	115 V
Speed	1100 rpm
Service Factor	1.0
Frame	48Y
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	5.6 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Yoke
Motor Orientation	Any
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	10.86 in
Frame Length	7.00 in
Shaft Diameter	0.625 in
Shaft Extension	3.0 in

General Specifications

UPC	786674010506
Weight	23.00 LB
Packaged Length	12.87 IN
Packaged Width	12.81 IN
Packaged Height	12.81 IN
HTC	8501.40.4040
