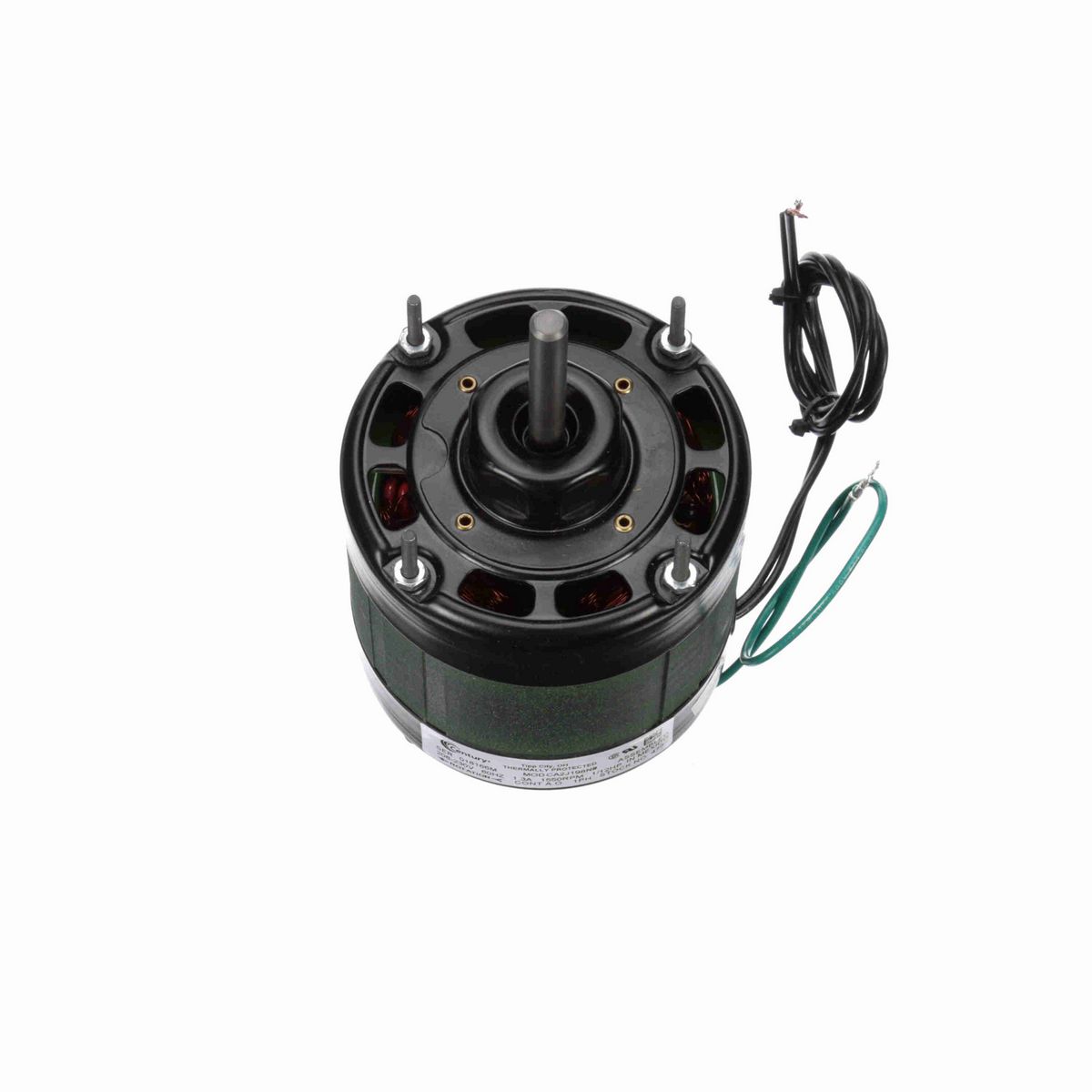

• OEM Direct Replacement Motor
• 4.4" Diameter
• Shaded Pole
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 3/8" Diameter Shaft with Flat
• 24" Leads
• Extended Studs Shaft End, Resilient Ring Mounting

Nameplate Specifications

Phase	1
Output HP	1/12 Hp
Output KW	0.06 kW
Voltage	208-230 V
Speed	1550 rpm
Service Factor	1.00
Frame	4.4
Enclosure	Open Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	1.3 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	4
Rotation	Clockwise Shaft End
Mounting	Extended Studs
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Na
Shaft Type	Flat
Overall Length	6.54 in
Shaft Diameter	0.375 in
Shaft Extension	2 1/2 in

General Specifications

UPC	786674007148
Weight	9.00 LB
Packaged Length	4.38 IN
Packaged Width	4.38 IN
Packaged Height	11.50 IN
HTC	8501.40.2040
