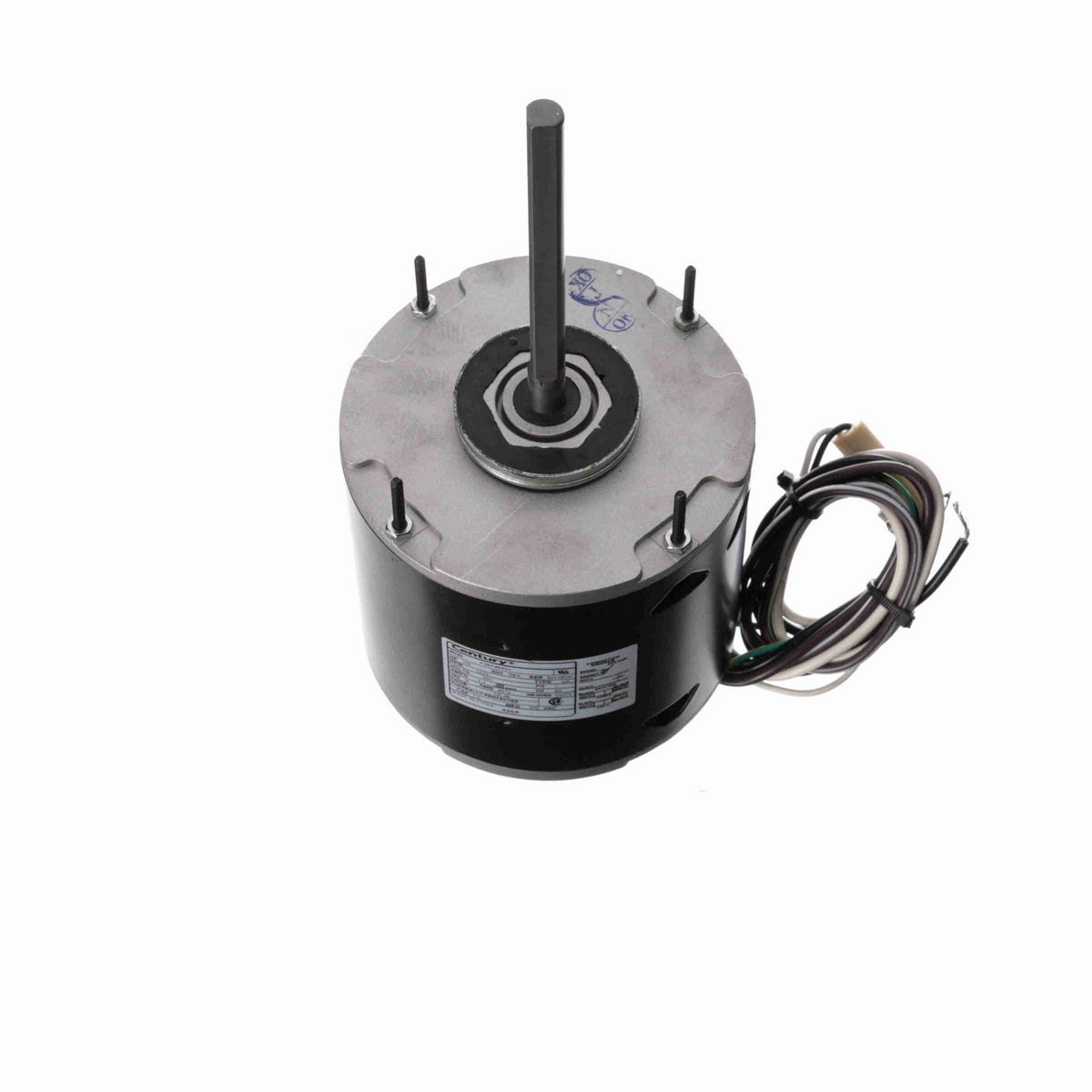

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Semi-Enclosed Air Over
• Class B Insulation, 60°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 20" Leads
• Extended Studs Shaft End, Resilient Ring Mounting

Nameplate Specifications

Phase	1
Output HP	1/2 Hp
Output KW	0.37 kW
Voltage	460 V
Speed	1075 rpm
Service Factor	1
Frame	48
Enclosure	Semi Enclosed
Thermal Protection	Automatic
Ambient Temperature	60 °C
Frequency	60 Hz
Current	1.7 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Extended Studs
Motor Orientation	Vertical Shaft Up
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Double Flat
Overall Length	11.60 in
Frame Length	4.50 in
Shaft Diameter	0.500 in
Shaft Extension	6.1 in

General Specifications

UPC	786674010100
Weight	16.00 LB
Packaged Length	13.78 IN
Packaged Width	6.41 IN
Packaged Height	6.81 IN
HTC	8501.40.4040
Country of Origin	Mexico
