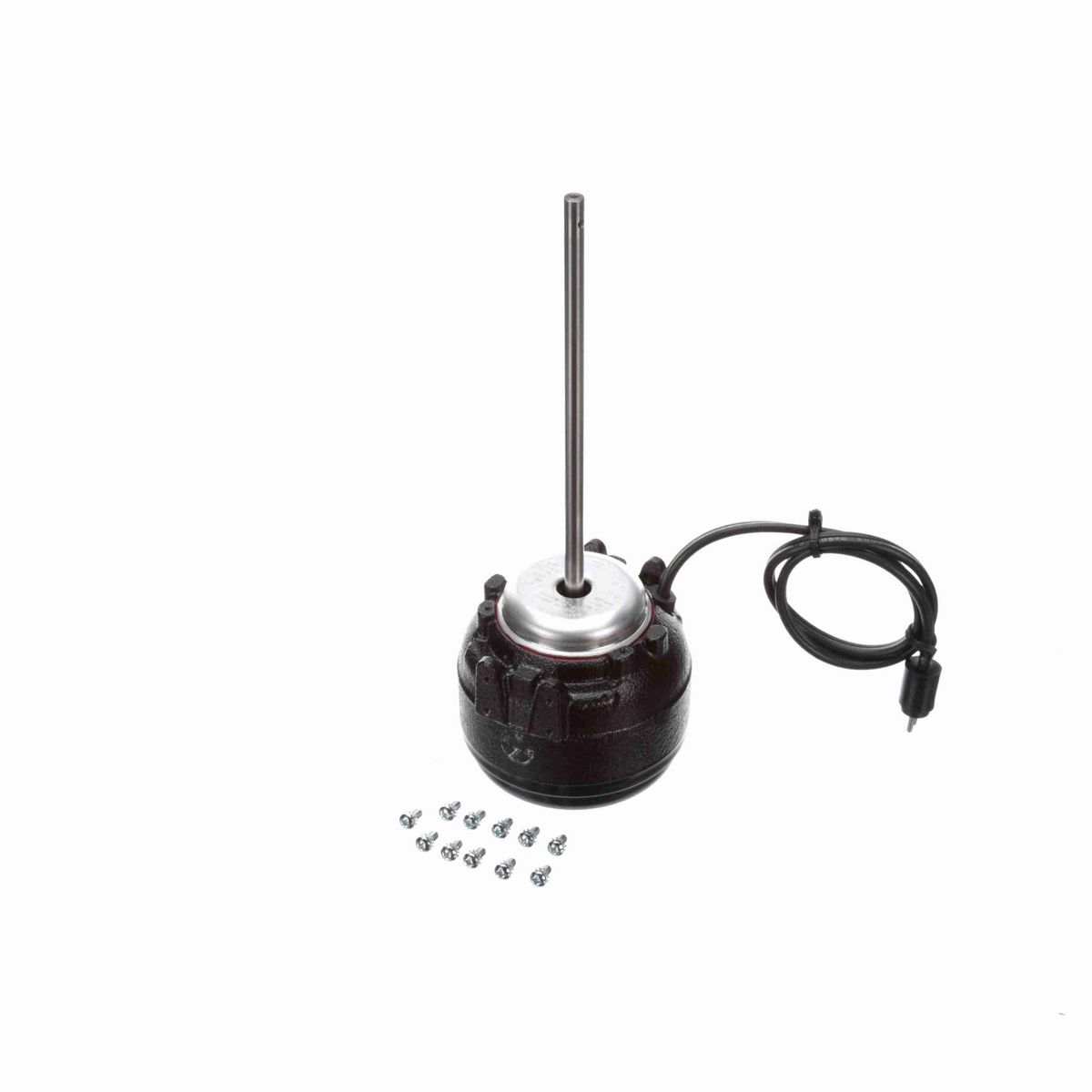

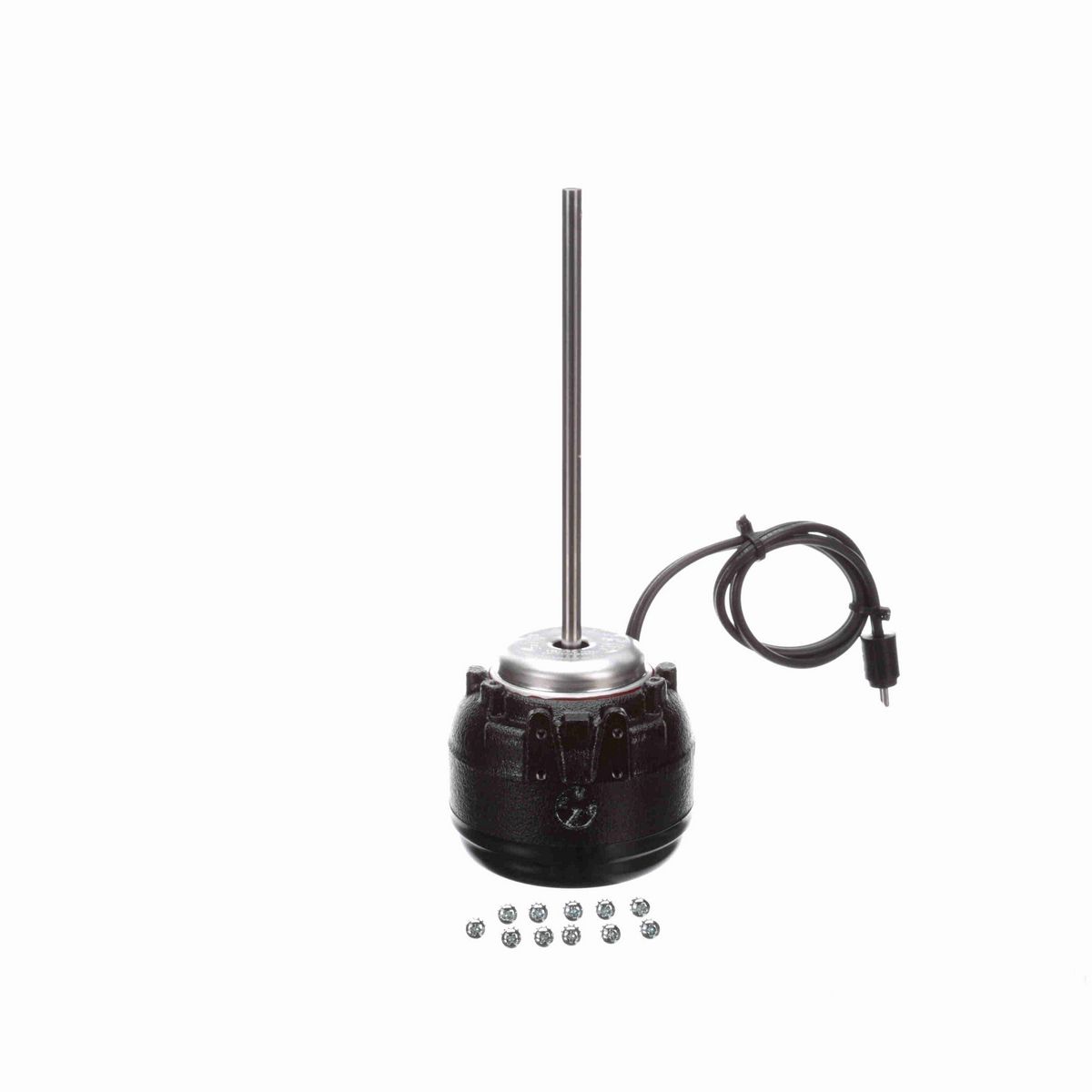

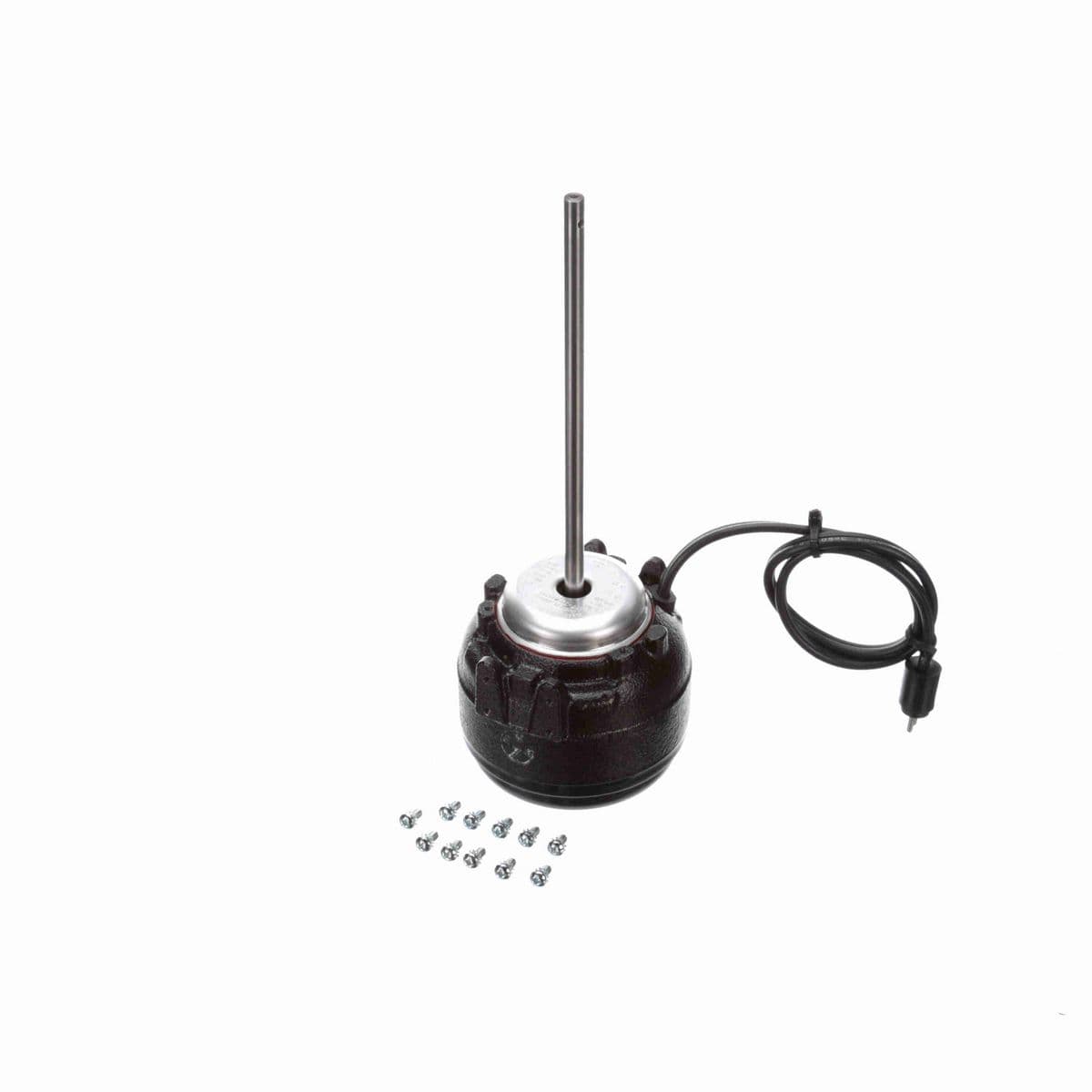

• OEM Direct Replacement Motor
• Unit Bearing
• Shaded Pole
• Thermally Protected
• Totally Enclosed Air Over
• Class A Insulation, 40°C Ambient
• Bearing - Unit
• 5/16" Diameter Shaft with Flat
• 21.75 " Leads with Molded Plug
• Tapped Double Boss, 3 Tapped Holes Opposite Shaft End

Nameplate Specifications

Phase	1
Output Watts	25 W
Voltage	115 V
Speed	1500 rpm
Service Factor	1
Frame	UNIT BEARING
Enclosure	Totally Enclosed Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	1.1 A
Duty	Continuous
Insulation Class	A
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	4
Rotation	Counterclockwise Lead End
Mounting	2 BOSS/OSE 3 HOLES
Drive End Bearing	Unit
Opp Drive End Bearing	Unit
Frame Material	Cast Iron
Shaft Type	Special Extension
Frame Length	3.61 in
Shaft Diameter	0.312 in
Shaft Extension	7 in

General Specifications

UPC	786674006424
Weight	7.00 LB
Packaged Length	13.56 IN
Packaged Width	6.78 IN
Packaged Height	6.87 IN
HTC	8501.10.6020
