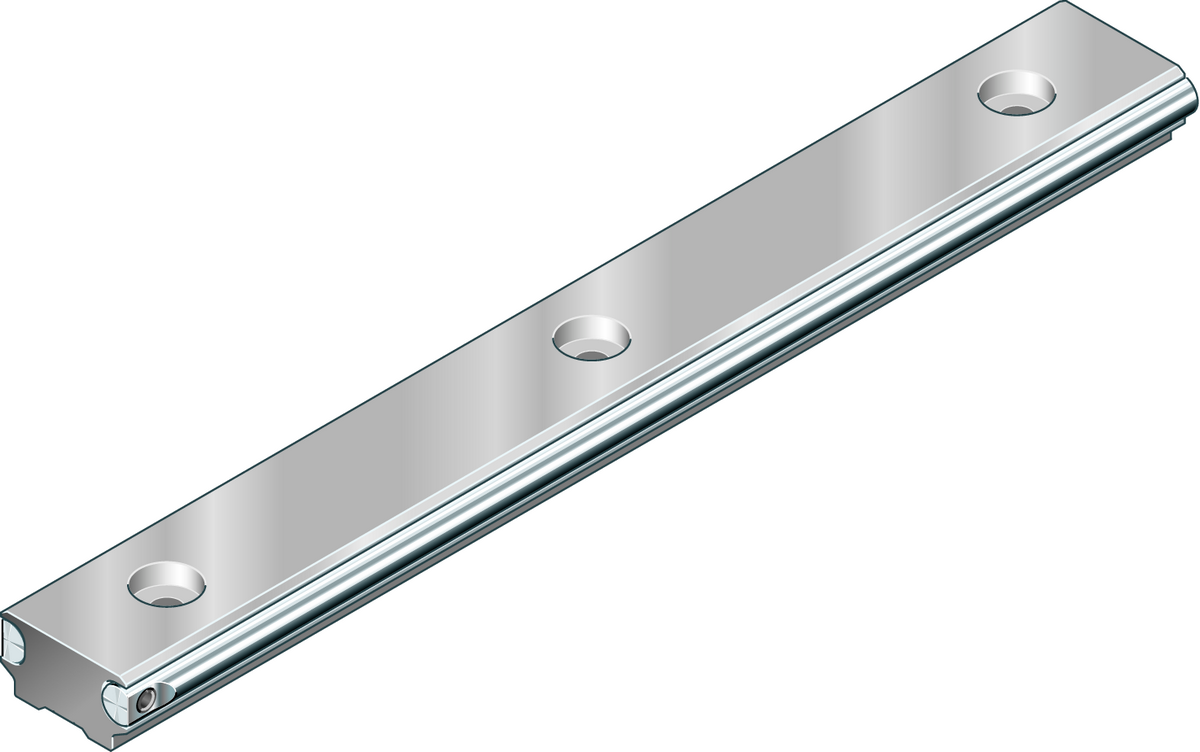

Направляющая для кулачковых роликов Bosch Rexroth 42 & [R192114231]

Version

Cam roller guide

Nominal size [mm]

42

Material (profiled rail systems)

Aluminum profile and corrosion-resistant steel shafts

Guide rail mounting

For bolting from above

Note: maximum length Lmax

Guide tracks up to 3500 mm are made of one-piece precision steel shafts.

Operating temperature (min. … max.)

-20 °C ... +80 °C

Mass m (kg/m) [kg/m]

2.68

Weight [kg]

0

Recommended rail length (formula)

L = n• T‒ 4 mm

Maximum operating temperature [°C]

+80

Minimum operating temperature [°C]

-20

Pitch T guide rail [mm]

125

Dimension A (profiled rail systems) [mm]

42

Dimension A1 (profiled rail systems) [mm]

28

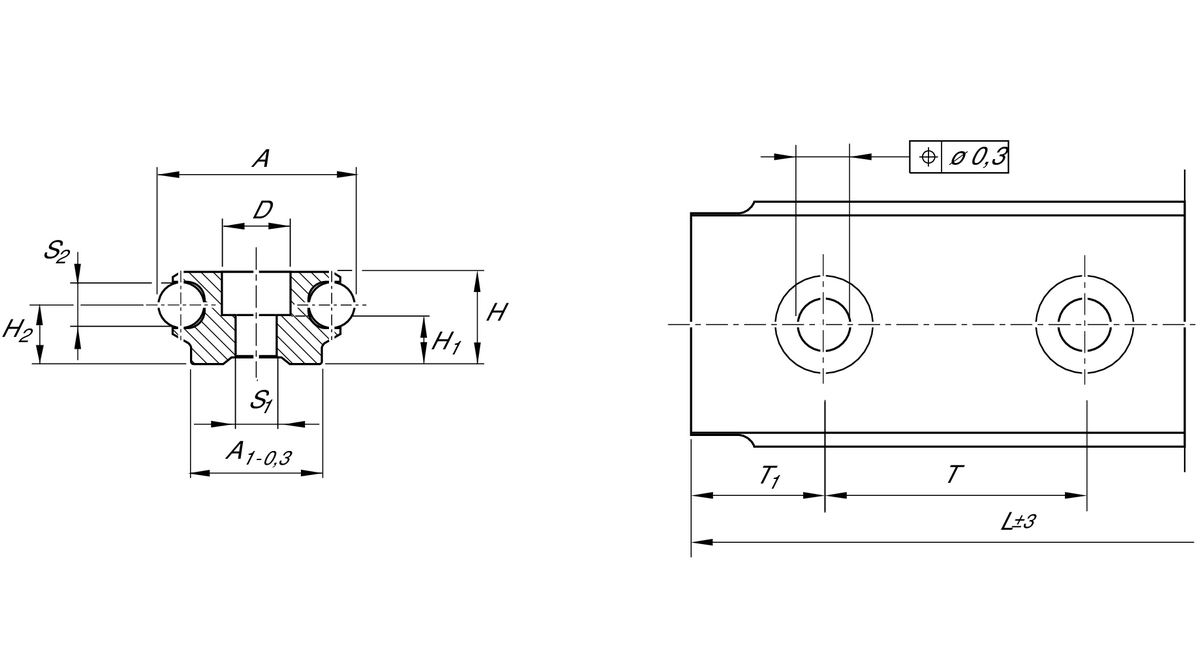

Dimension D [mm]

15

Dimension 2nd grade area moment, y-axis ly [mm⁴]

19628

Dimension 2nd grade area moment, z-axis lz [mm⁴]

78534

Dimension H [mm]

20

Dimension H1 (profiled rail systems) [mm]

9

Dimension H2 (profiled rail systems) [mm]

12.6

Dimension L

3500

Dimension S1 (profiled rail systems) [mm]

9

Dimension S2 [mm]

10

Dimension T [mm]

125

Dimension T1 min [mm]

13

Dimension T1 s (profiled rail systems) [mm]

60.5

Dimension section modulus, y-axis Wy [mm³]

1722

Dimension section modulus, z-axis Wz [mm³]

4363

Footnote Dimension L

Up to 3500 mm, the guideways are made from one-piece precision steel shafts
