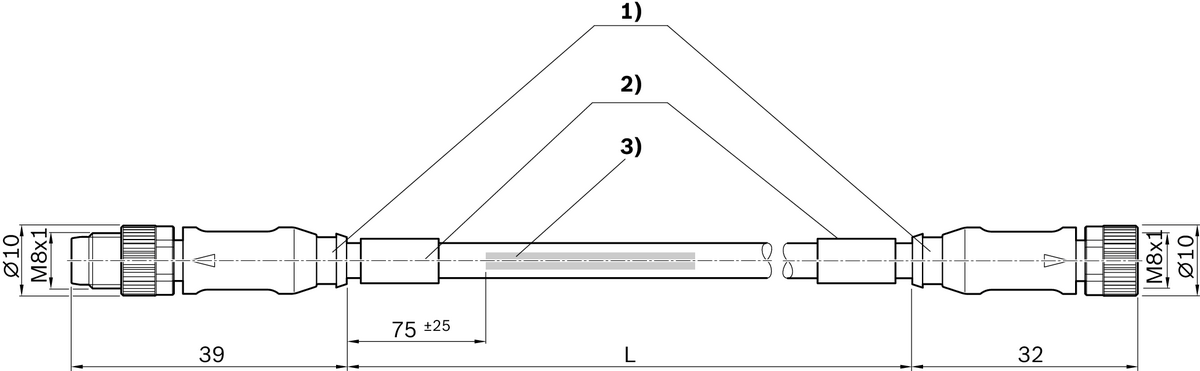

Удлинители - в сборе с двух сторон Bosch Rexroth 7000-88001-6500500 [R911344624]

Electrical accessories for linear axes

Extensions

Electrical accessories for electromechanical cylinders

Extensions

Connection type 1

Female connector, straight, M8x1, 3-pin

Use

Extension cable

Connection type 2

Male connector, straight, M8x1, 3-pin

Maximum acceleration rate amax [m/s²]

30

Cable cross-section

3 x 0.25 mm²

Operating voltage (min. … max.)

10 V DC ... 30 V DC

Operating voltage indicator

no

Shield

no

Dynamic bending radius

≥ 10xD

Static bending radius

≥ 5xD

Bending cycles

> 10 million

Weight [kg]

0.13

Function indicator

no

Cable diameter D [mm]

4.1

Cable diameter D tolerance [mm]

±0.2

Cable color

Black

Cable material

PUR

Compatible

EMC, CKK, CKR, MKK, MKR, MLR, OBB, AGK, VKK, TKL, PSK

Max. permissible travel speed

3.3 m/s for 5 m travel range (typ.), up to 5 m/s for 0.9 m travel range

Suitable for drag chains

yes

Protection class

IP68

Weld spark-resistant

✓

Torsion-resistant

✓

Ambient temperature fixed extension

-40 °C ... +85 °C

Ambient temperature flexible extension

-25 °C ... +85 °C

Dimension L

5
