• Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
• 3/4"/ft. Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.

Technical Specifications

Keyway	5/16 x 5/32

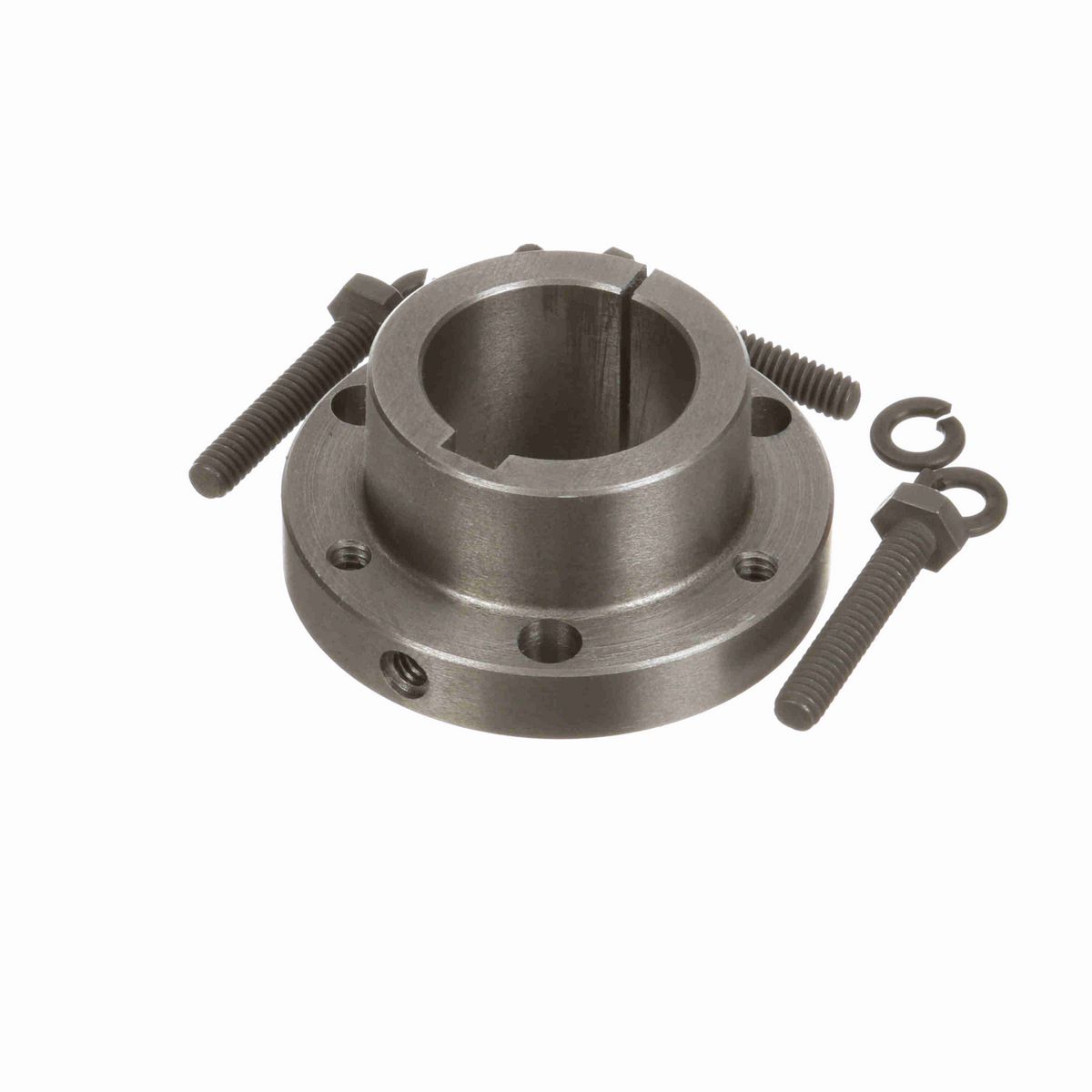

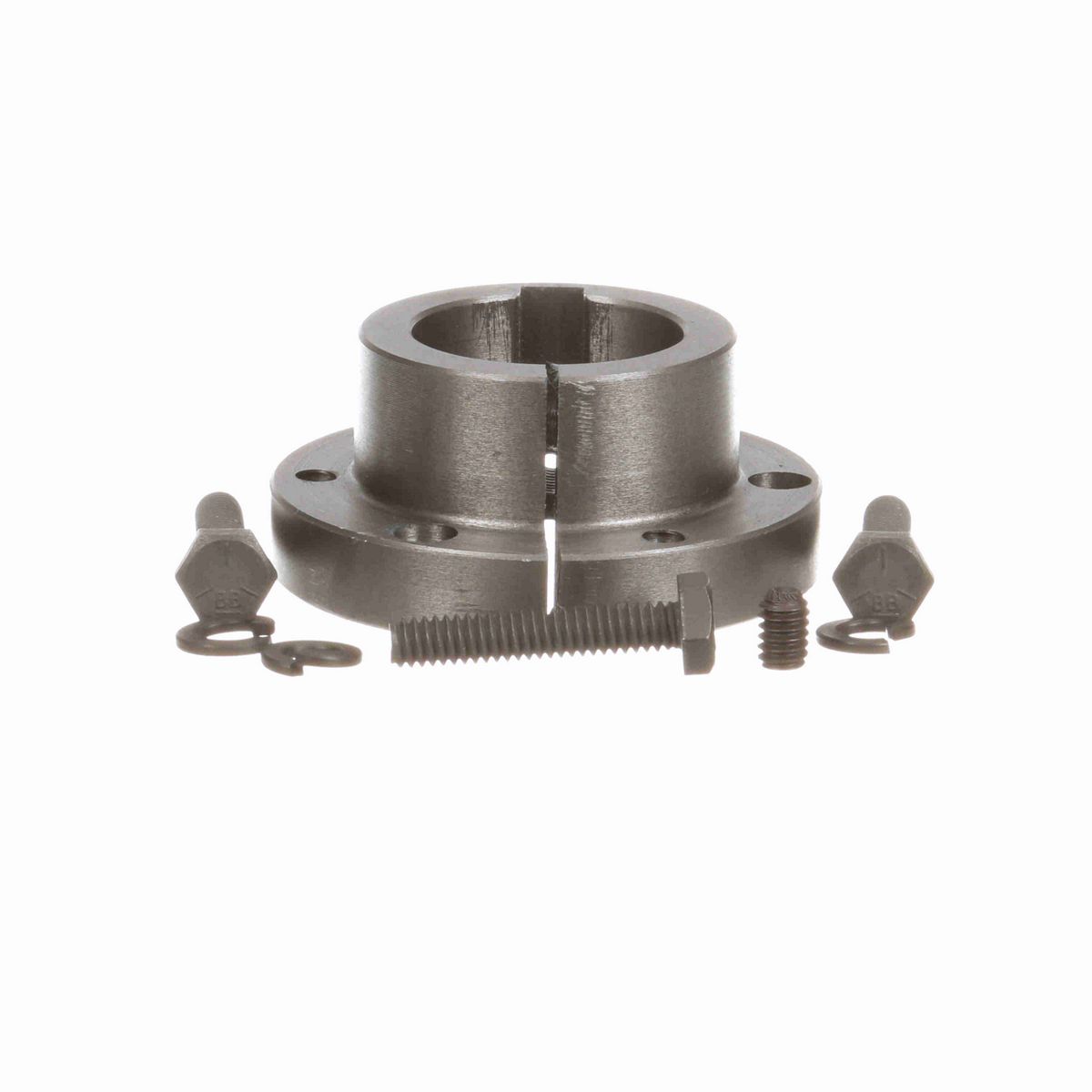

Product Type	Q-D Bushing
Model Name	QD-SH_Bushing_Master
Torque Capacity (in-lb)	3,500
Bushing Type	SH
Outside Diameter (in)	2.6875 in
Total Length (in)	1.2 in
Length Through Bore (in)	1.2 in
Cap Screws (Size)	1/4-20 x 1 3/8
Compatible Bore Size [Max] (in)	1.3125 in
Cap Screws (Bolt Circle)	2.25
Bore Type	Inch
Mounting Type	Conventional
Cap Screws (No.)	3
Wrench Torque (ft.-lbs.)	9
Bore Size (in)	1.3125 in
Material	Ductile Iron - 65-45-19
Flange Thickness	0.45 in
Barrel Diameter	1.871 in
Barrel Length	0.75 in

General Specifications

UPC	662289415571
Weight	1.25 LB
Packaged Length	3.90 IN
Packaged Width	3.70 IN
Packaged Height	1.50 IN
HTC	8483.90.8080
Country of Origin	Mexico
