• Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
• 3/4"/ft. Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.

Technical Specifications

Outside Diameter (in)	3.125 in
Outside Diameter (mm)	79.375 mm
Bore Type	Metric
Compatible Bore Size [Max] (mm)	38 mm
Cap Screws (No.)	3
Wrench Torque (ft.-lbs.)	9
Cap Screws (Size)	1/4-20 x 1 3/8

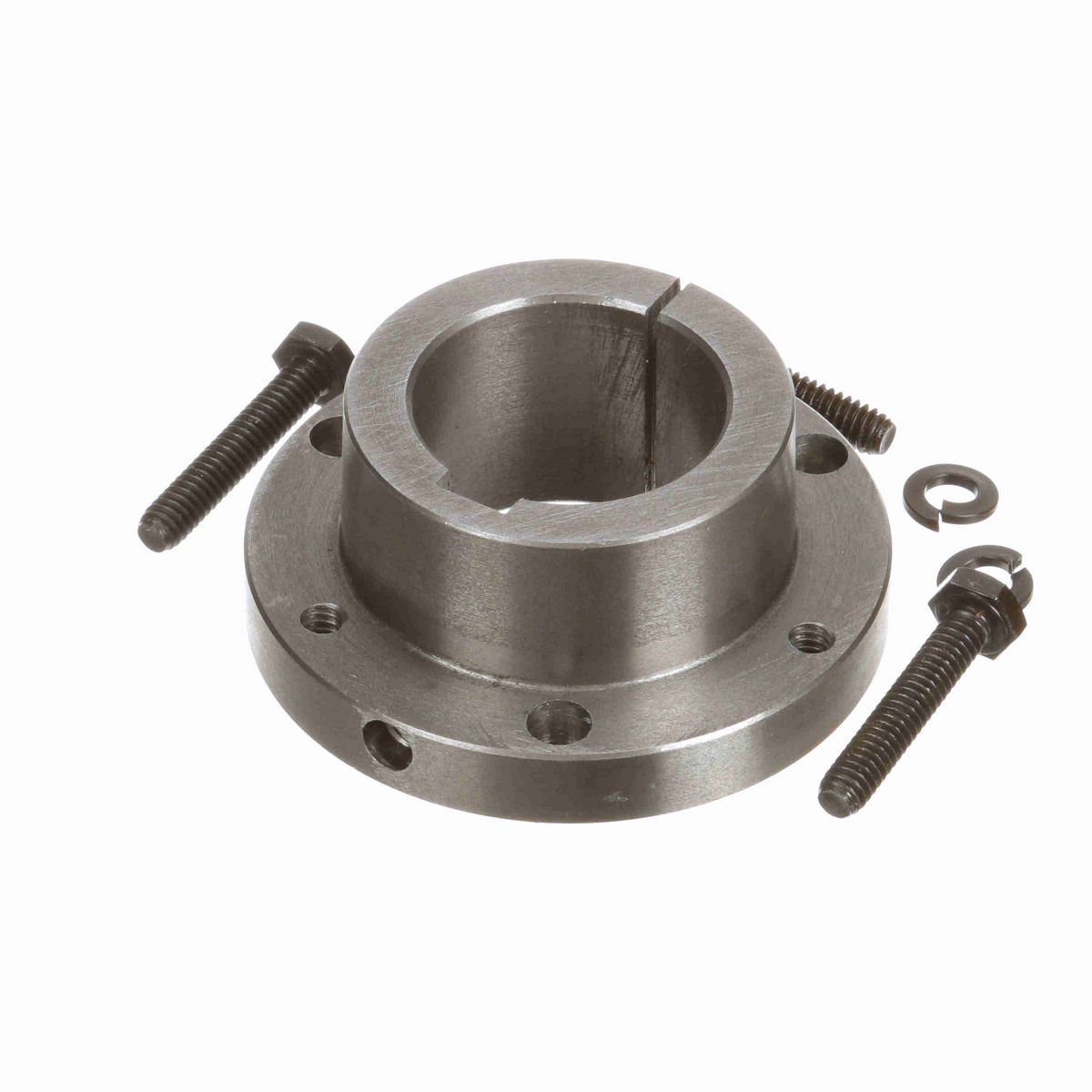

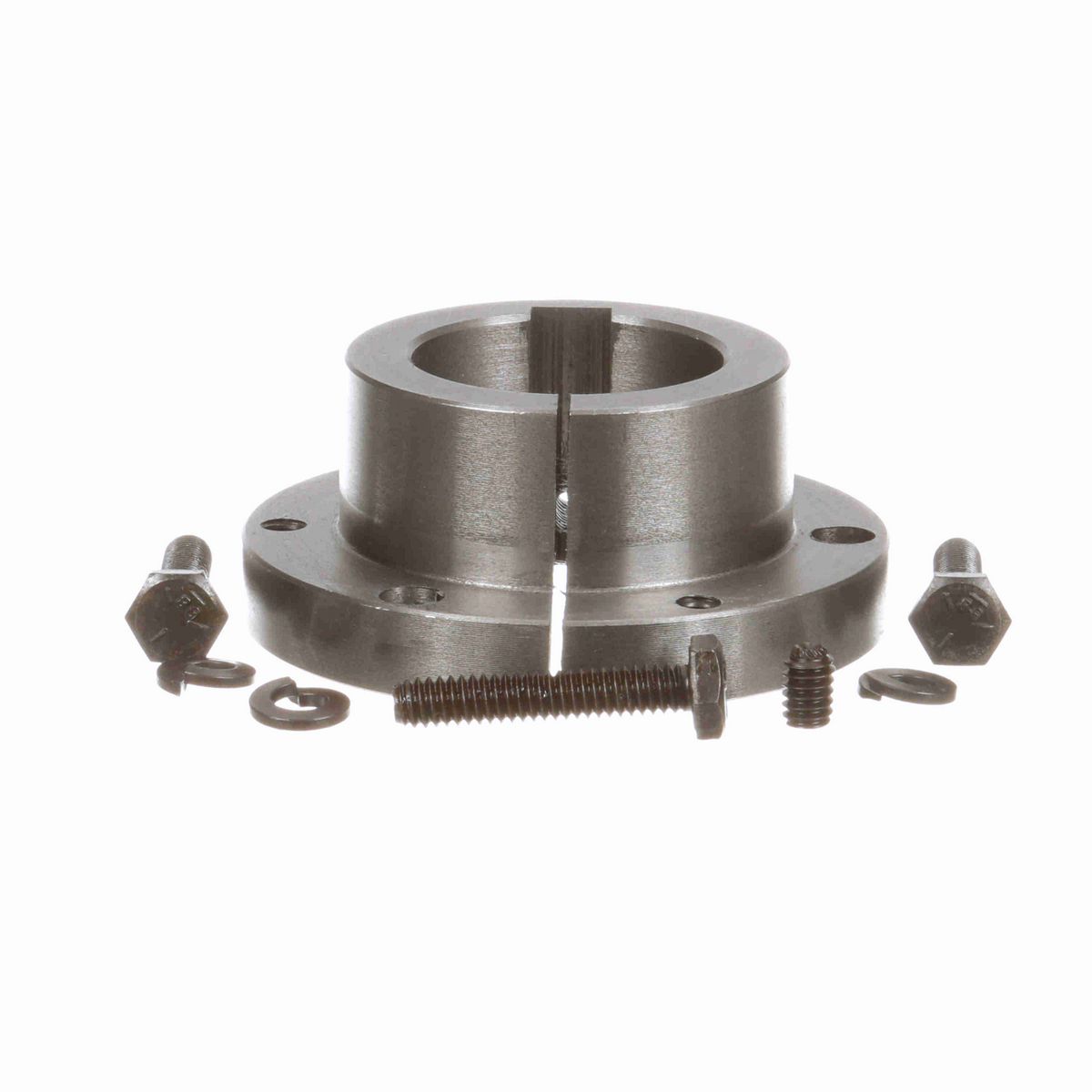

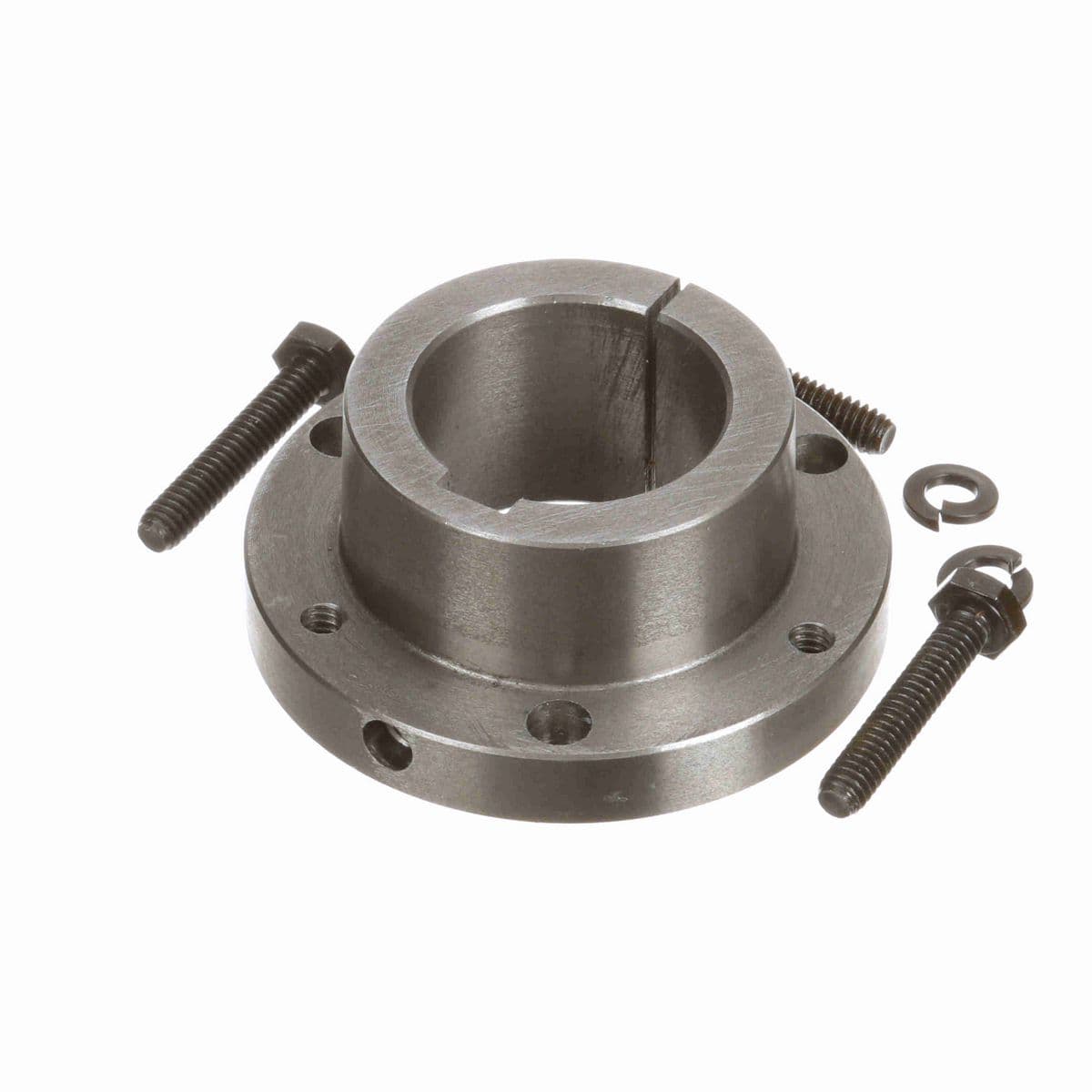

Product Type	Q-D Bushing
Bushing Type	SDS
Keyway	10mm x 4mm
Total Length (mm)	33.782 mm
Torque Capacity (in-lb)	5,000
Total Length (in)	1.33 in
Cap Screws (Bolt Circle)	2.6875
Mounting Type	Conventional
Length Through Bore (mm)	33.782 mm
Bore Size (mm)	38 mm
Material	Ductile Iron - 65-45-74
Barrel Diameter	2.1875 in
Barrel Length	0.88 in
Flange Thickness	0.45 in

General Specifications

UPC	662289616015
Weight	1.16 LB
Packaged Length	4.56 IN
Packaged Width	4.56 IN
Packaged Height	1.56 IN
HTC	8483.90.8080
Country of Origin	Mexico
