• Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
• 3/4"/ft. Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.

Technical Specifications

Cap Screws (Bolt Circle)	2.6875
Length Through Bore (mm)	46.482 mm
Mounting Type	Conventional
Keyway	8mm x 3.5mm
Outside Diameter (mm)	79.375 mm
Total Length (mm)	46.482 mm

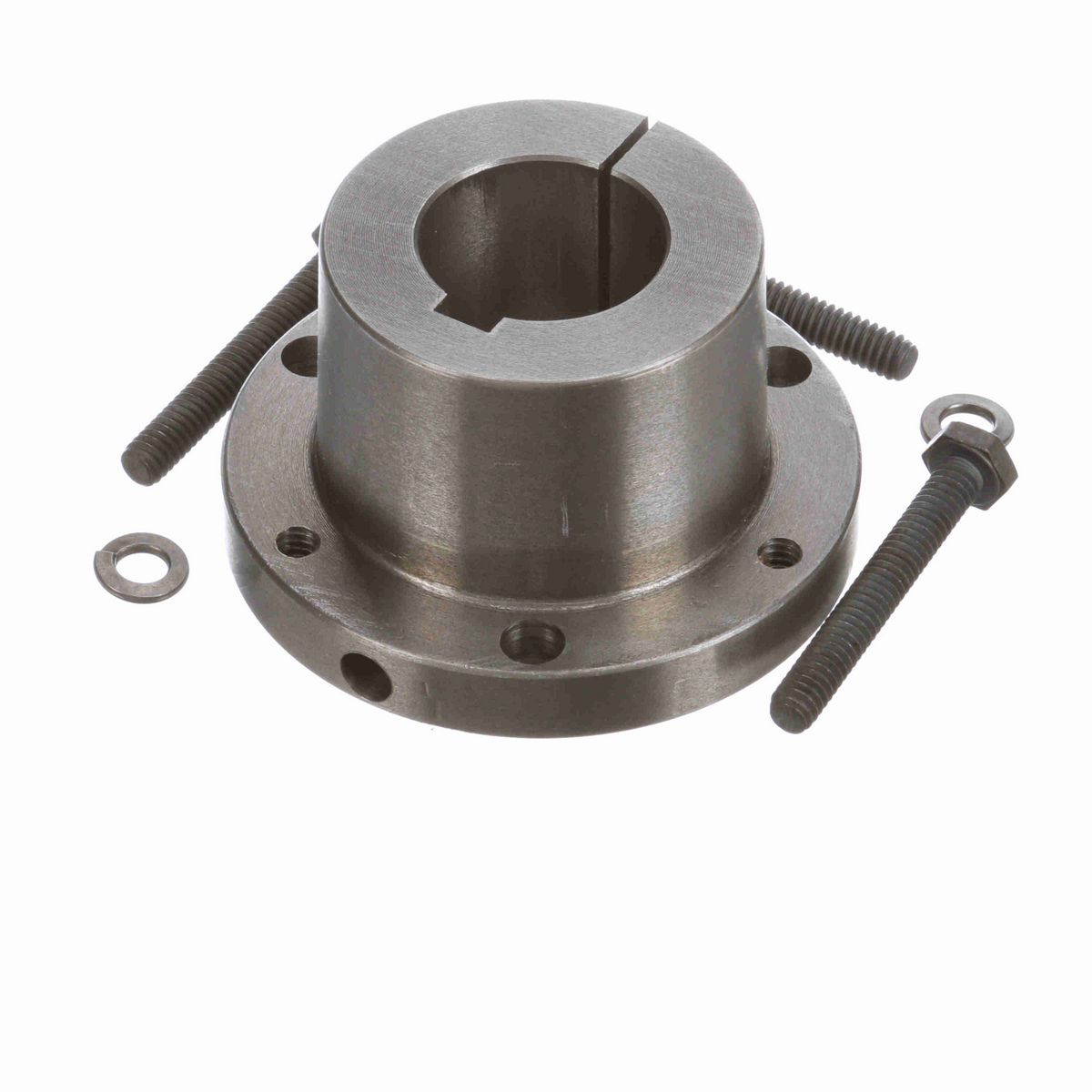

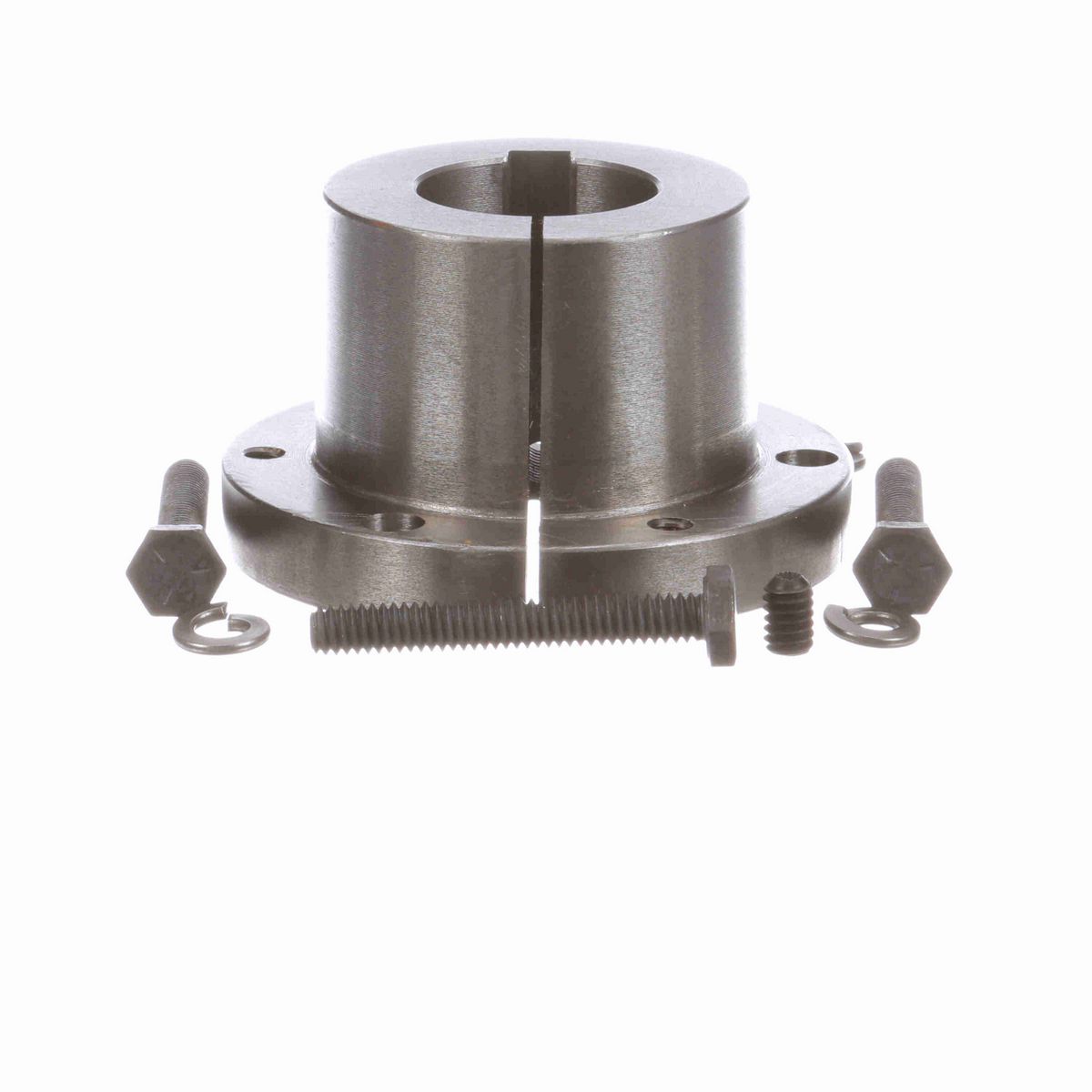

Product Type	Q-D Bushing
Bushing Type	SD
Bore Type	Metric
Wrench Torque (ft.-lbs.)	9
Cap Screws (Size)	1/4-20 x 1 7/8
Cap Screws (No.)	3
Torque Capacity (in-lb)	5,000
Total Length (in)	1.83 in
Outside Diameter (in)	3.125 in
Compatible Bore Size [Max] (mm)	30 mm
Bore Size (mm)	30 mm
Material	Ductile Iron - 65-45-37
Flange Thickness	0.45 in
Barrel Diameter	2.1875 in
Barrel Length	1.38 in

General Specifications

UPC	662289615827
Weight	1.73 LB
Packaged Length	4.20 IN
Packaged Width	4.20 IN
Packaged Height	1.90 IN
HTC	8483.90.8080
Country of Origin	Mexico
