• Lifetime Warranty - If this bushing ever fails Browning will replace it Free of charge.
• Solid Flange and Double Split Barrel - Assures better concentricity to the shaft.
• Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive.
• 3/4" per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.

Technical Specifications

Bushing Type	R1
Cap Screws (Size)	3/8 x 1 3/4
Keyseat	5/8 x 5/16
Bore Size (in)	2.5625 in
Length Through Bore (in)	2.875 in
Material	Sintered Steel or Ductile Iron
Outside Diameter (in)	5.375 in

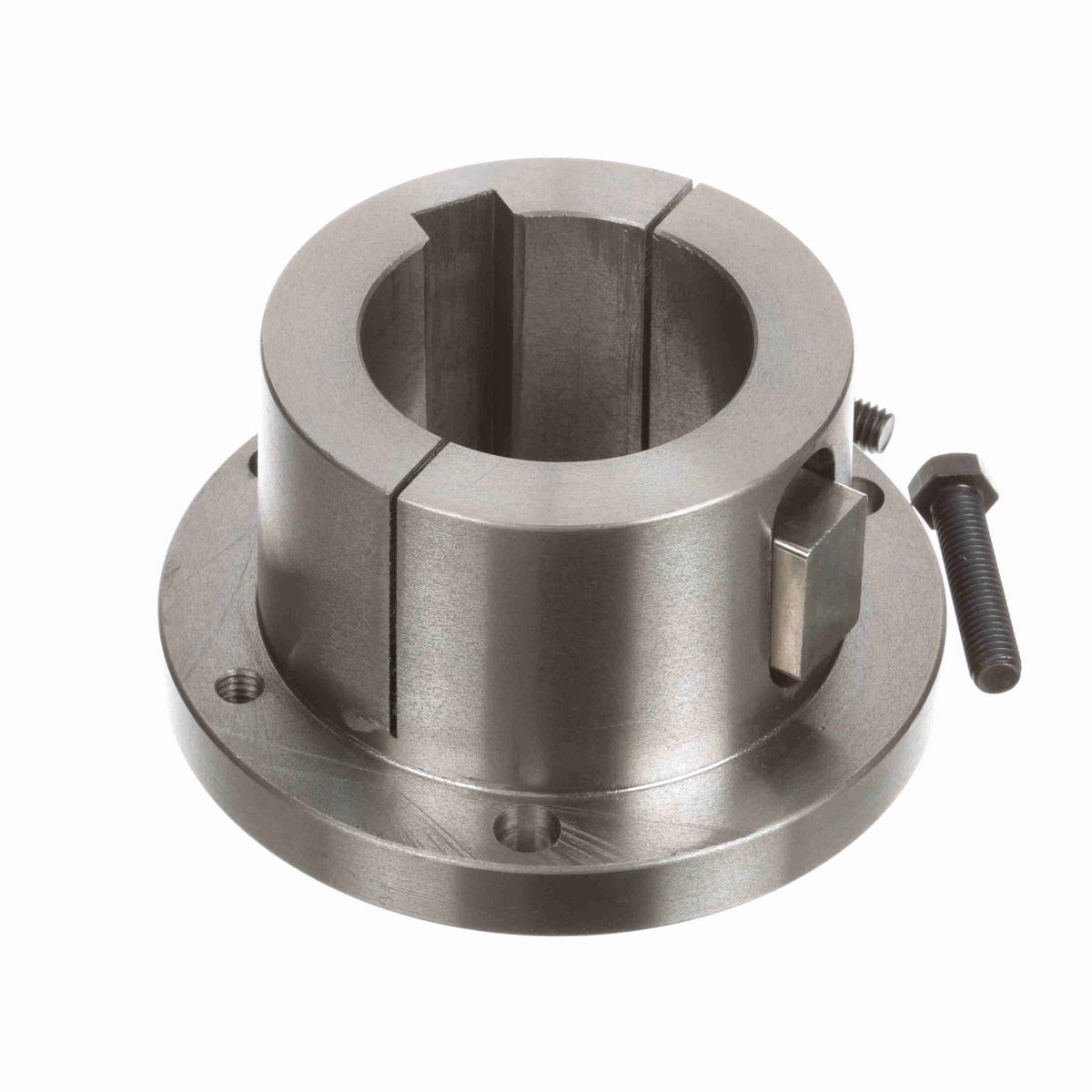

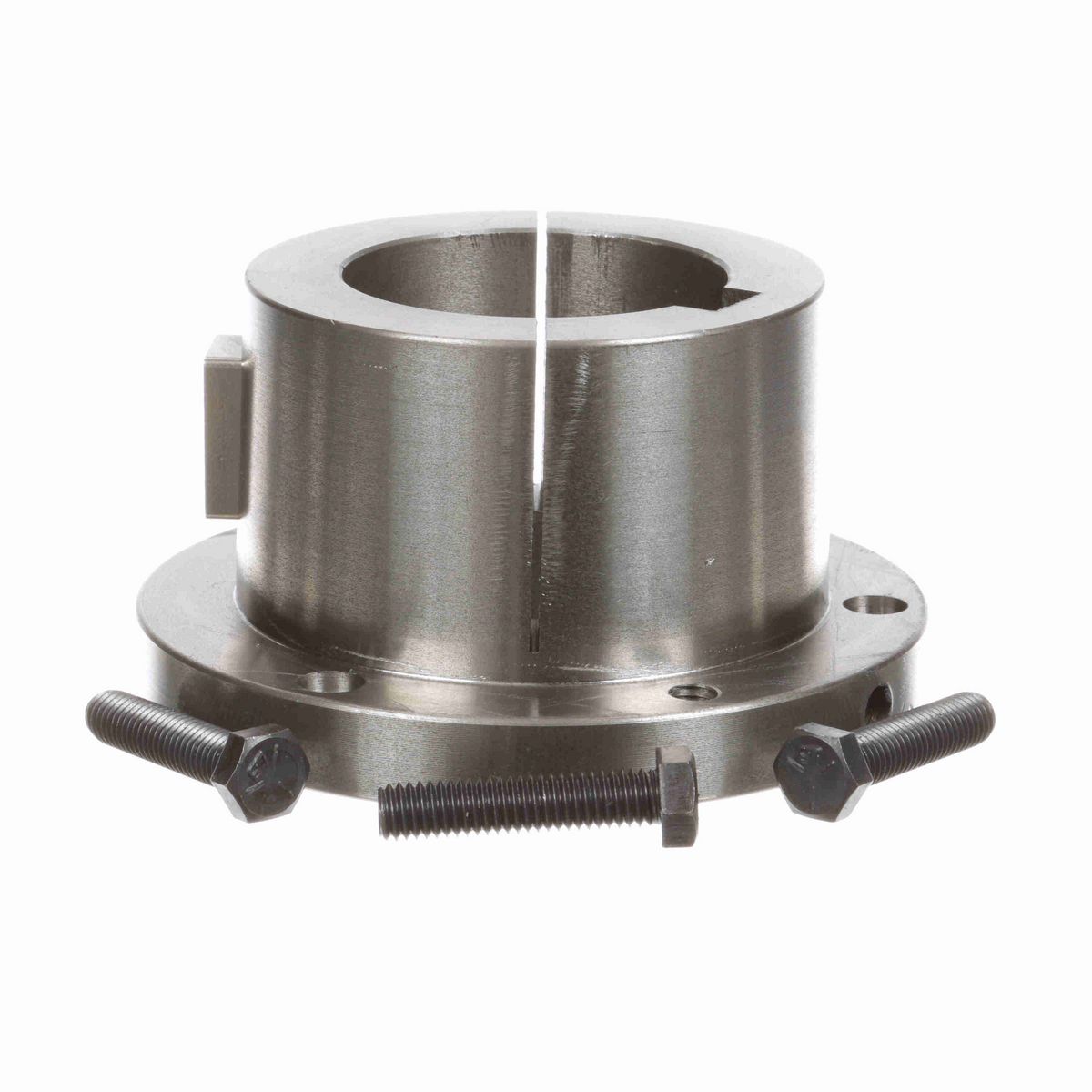

Product Type	Split Taper Bushing
Wrench Torque (in-lb)	348
Compatible Bore Size [Max] (in)	2.5625 in
Total Length (in)	2.875 in
Model Name	R1-R2_Type1_BushingMaster
Bore Type	Inch
Cap Screws (No.)	3

General Specifications

UPC	662289290659
Weight	6.90 LB
Packaged Length	5.38 IN
Packaged Width	3.00 IN
Packaged Height	5.38 IN
