• Lifetime Warranty - If this bushing ever fails Browning will replace it Free of charge.
• Solid Flange and Double Split Barrel - Assures better concentricity to the shaft.
• Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive.
• 3/4" per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.

Technical Specifications

Model Name	R1-R2_Type1_BushingMaster
Length Through Bore (in)	2.875 in
Material	Sintered Steel or Ductile Iron
Compatible Bore Size [Max] (in)	1.8125 in
Bore Size (in)	1.8125 in

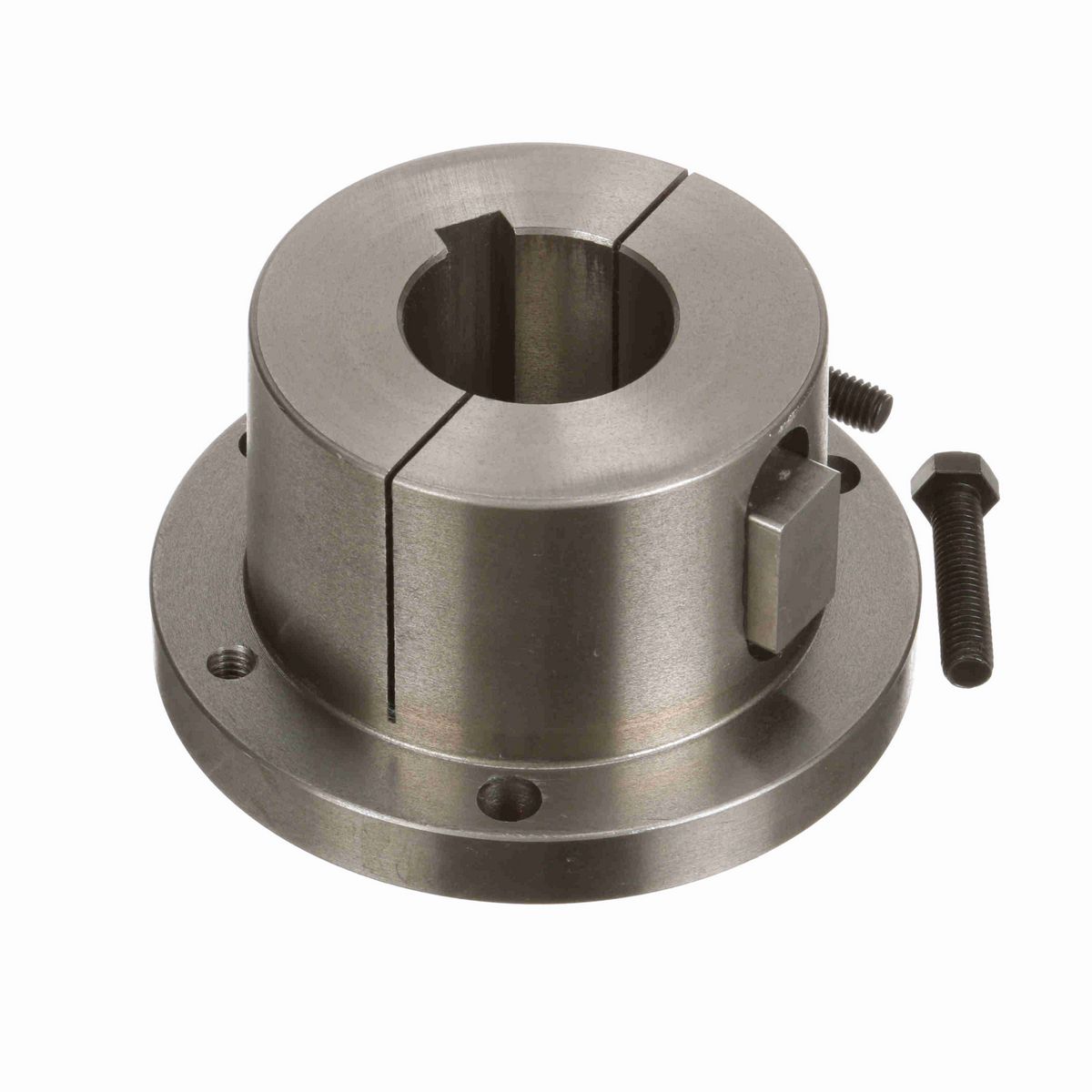

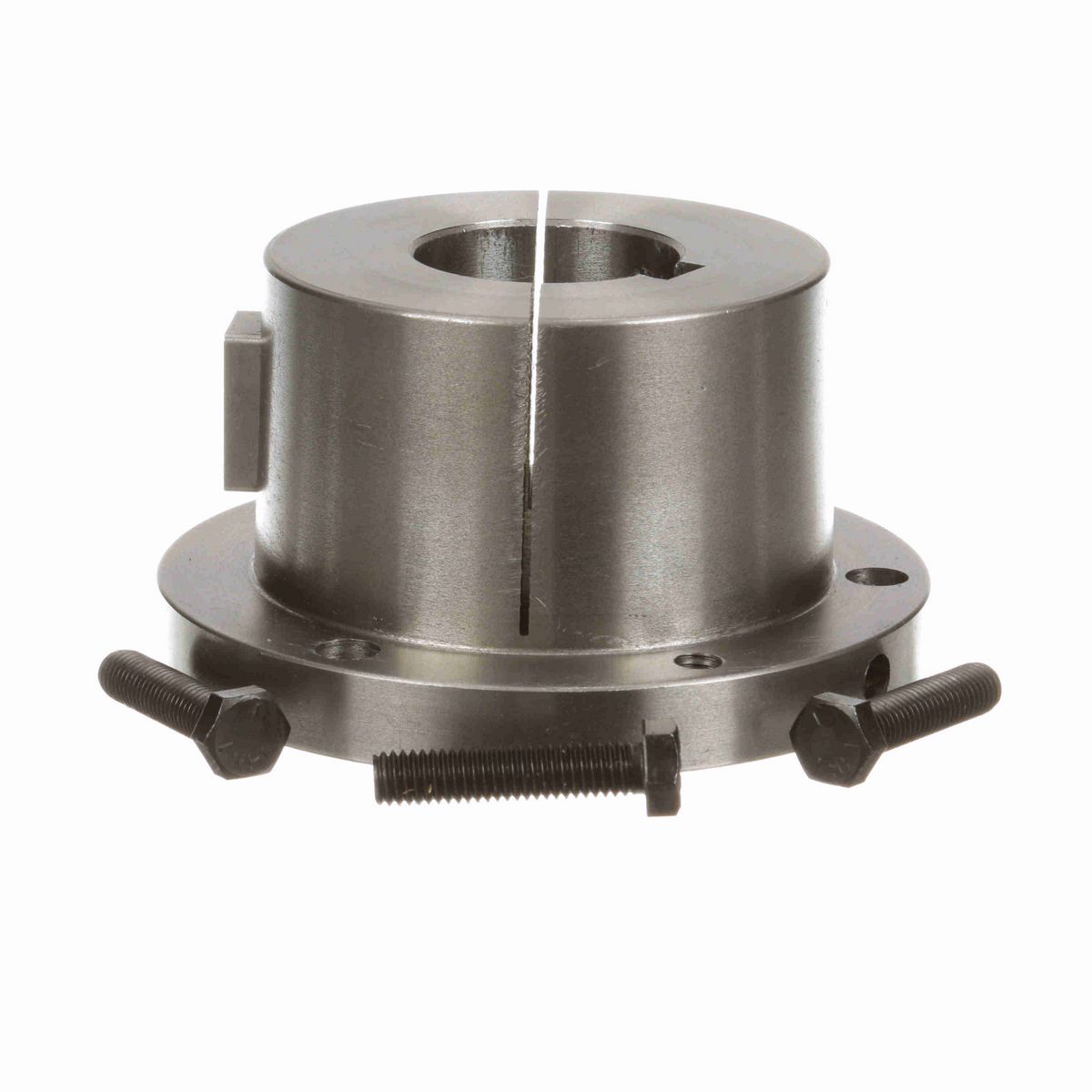

Product Type	Split Taper Bushing
Outside Diameter (in)	5.375 in
Cap Screws (Size)	3/8 x 1 3/4
Total Length (in)	2.875 in
Wrench Torque (in-lb)	348
Bushing Type	R1
Keyseat	1/2 x 1/4
Cap Screws (No.)	3
Bore Type	Inch

General Specifications

UPC	662289190508
Weight	8.77 LB
Packaged Length	5.50 IN
Packaged Width	5.60 IN
Packaged Height	3.20 IN
HTC	8483.90.8080
Country of Origin	Mexico
