• Lifetime Warranty - If this bushing ever fails Browning will replace it Free of charge.
• Solid Flange and Double Split Barrel - Assures better concentricity to the shaft.
• Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive.
• 3/4" per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.

Technical Specifications

Bushing Type	Q1
Length Through Bore (in)	2.5 in
Total Length (in)	2.5 in

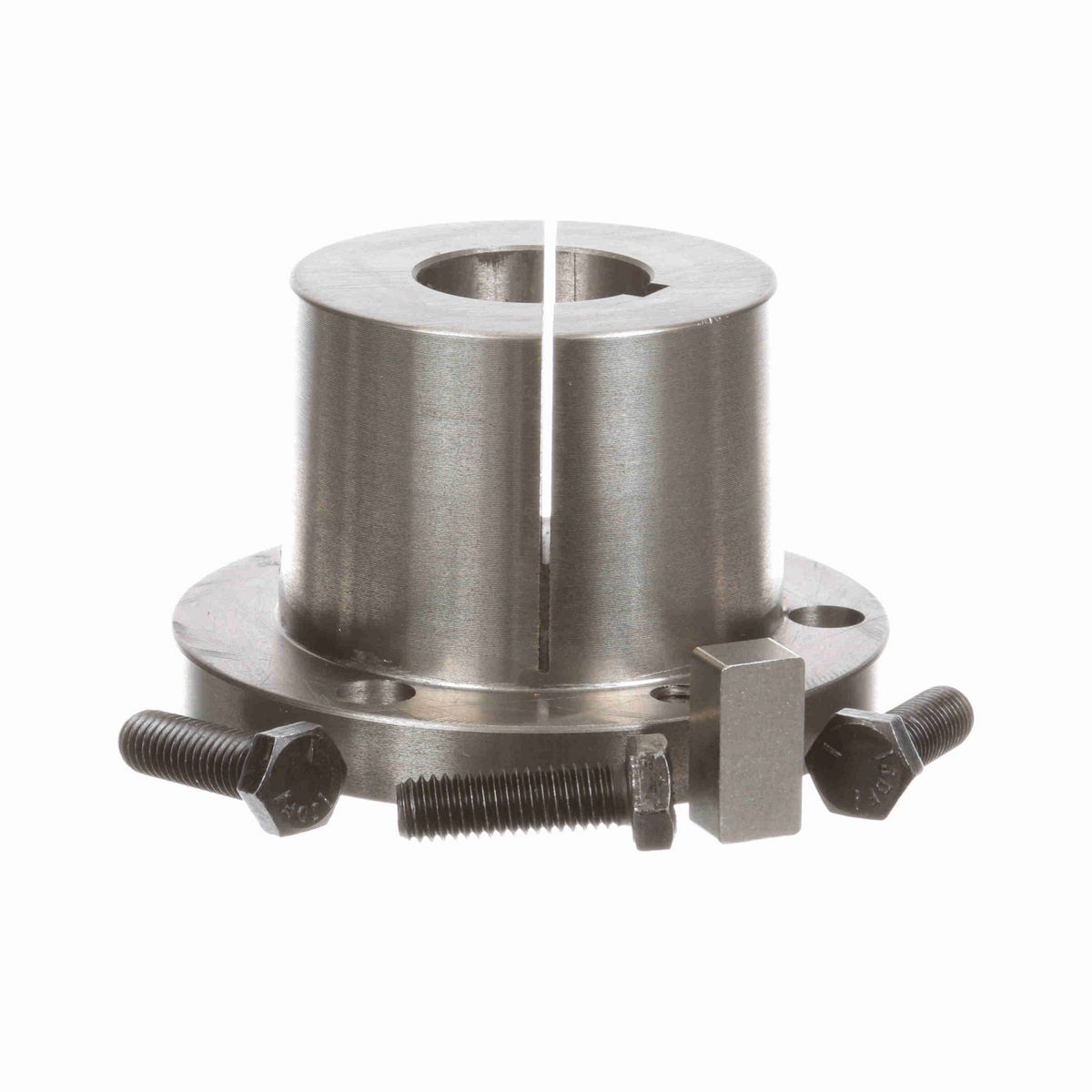

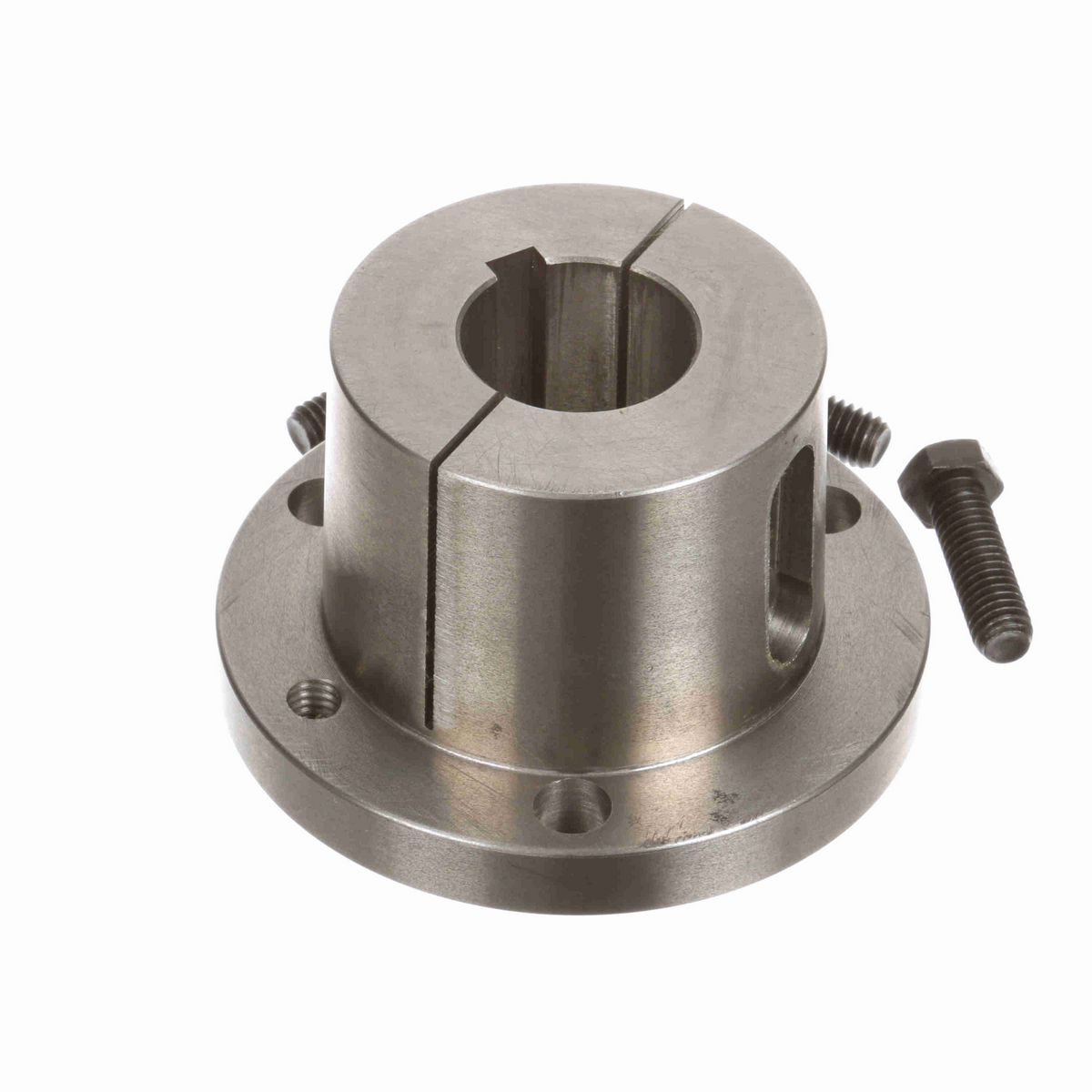

Product Type	Split Taper Bushing
Material	Sintered Steel or Ductile Iron
Bore Size (in)	1.3125 in
Keyseat	5/16 x 5/32
Model Name	Q1-Type1_Bushing_Master
Cap Screws (Size)	3/8 x 1 1/4
Outside Diameter (in)	4.125 in
Compatible Bore Size [Max] (in)	1.3125 in
Wrench Torque (in-lb)	348
Bore Type	Inch
Cap Screws (No.)	3
Mounting Type	Conventional
Flange Thickness	0.5
Screw Length	1.25
Barrel Diameter (Small End)	2.7657
Bolt Circle Diameter (in)	3.375
Thread Size	3/8-16
Includes	Cap Screws and Ext. Key
Barrel Diameter (Large End)	2.875
Flange Type	Solid Flange

General Specifications

UPC	662289269662
Weight	4.55 LB
Packaged Length	4.60 IN
Packaged Width	4.30 IN
Packaged Height	2.70 IN
HTC	8483.90.8080
Country of Origin	Mexico
