• Lifetime Warranty - If this bushing ever fails Browning will replace it Free of charge.
• Solid Flange and Double Split Barrel - Assures better concentricity to the shaft.
• Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive.

Technical Specifications

Material	Sintered Steel or Ductile Iron
Outside Diameter (in)	4.125 in
Compatible Bore Size [Max] (in)	1.375 in
Bore Size (in)	1.375 in
Wrench Torque (in-lb)	348
Keyseat	5/16 x 5/32

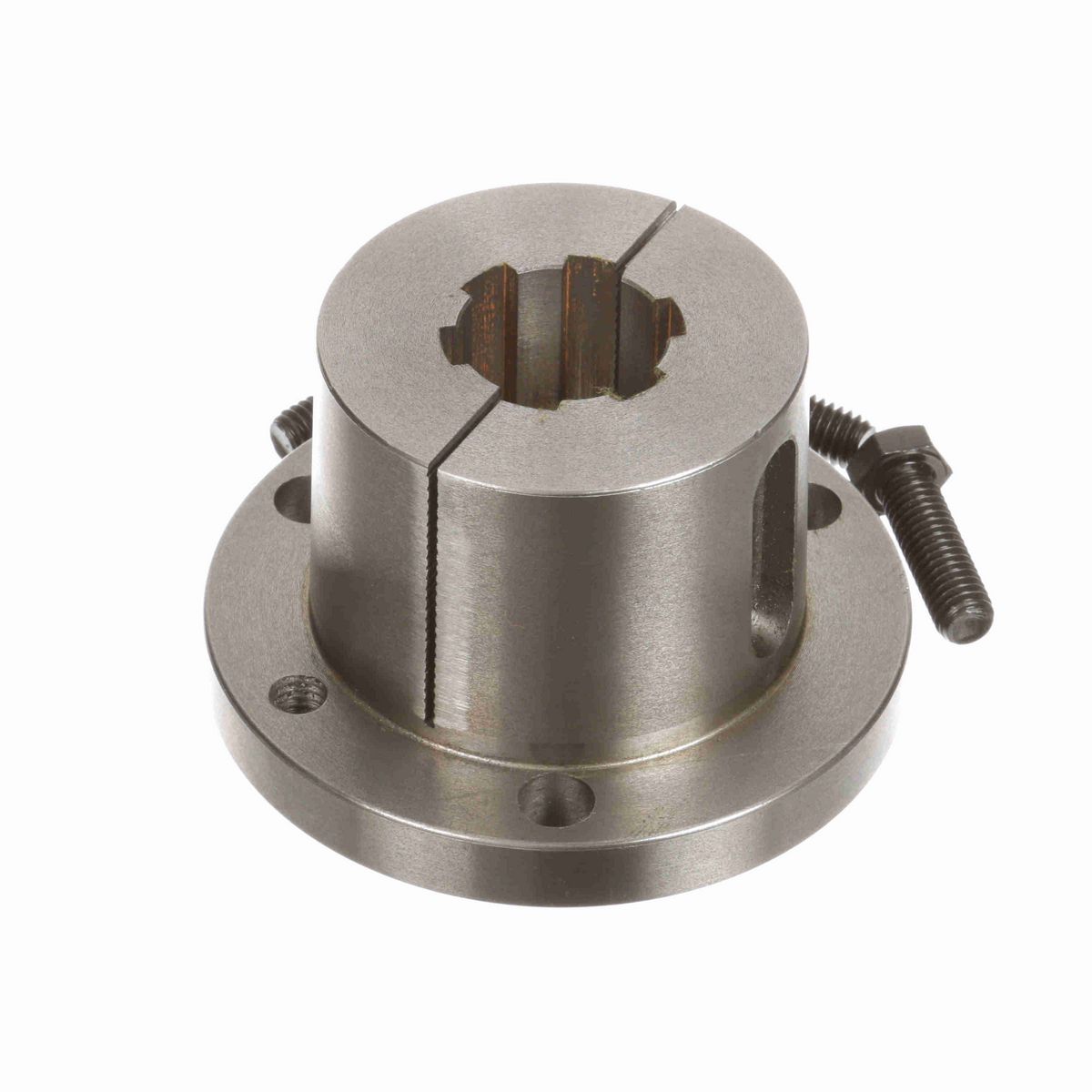

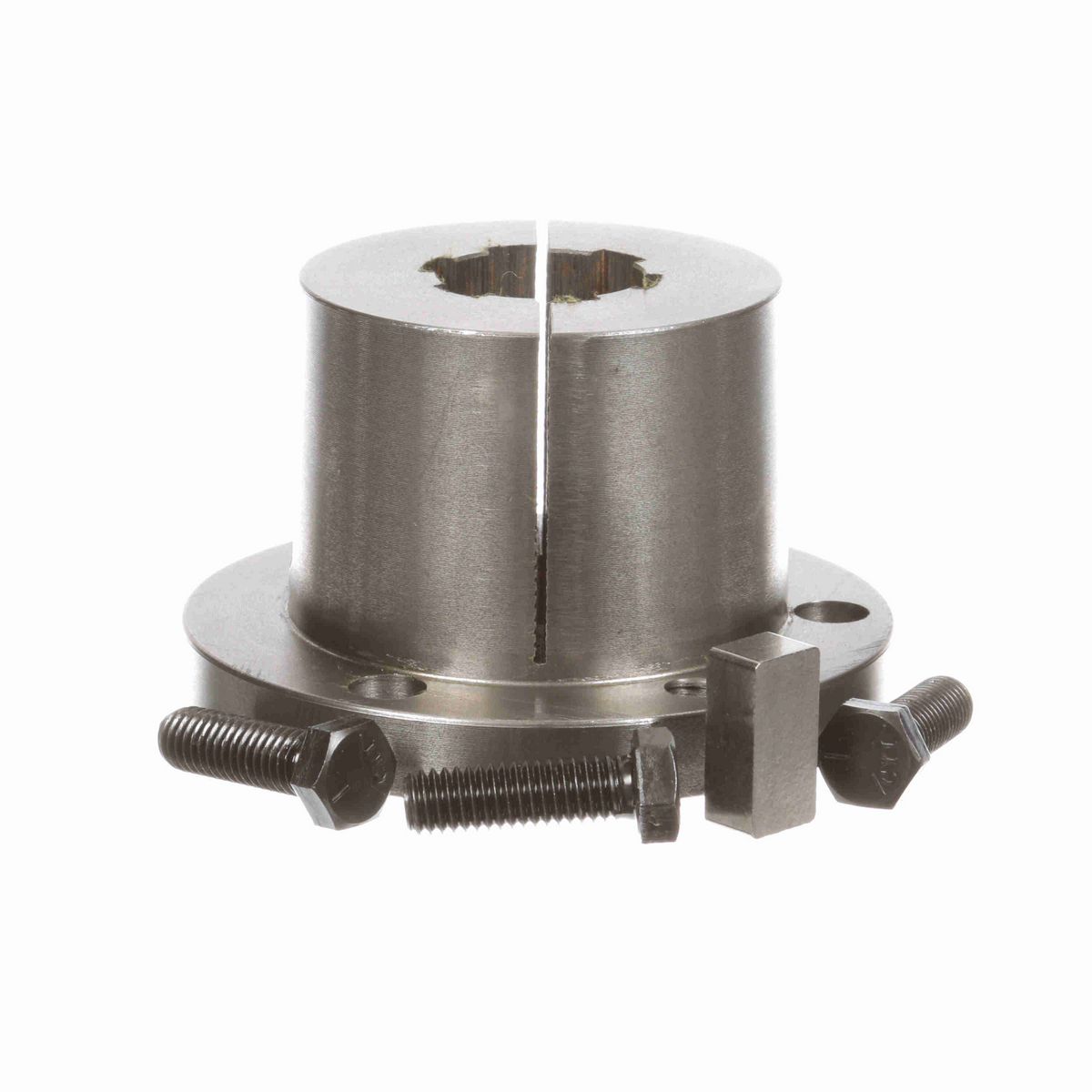

Product Type	Split Taper Bushing
Length Through Bore (in)	2.5 in
Cap Screws (Size)	3/8 X 1-1/4
Total Length (in)	2.5 in
Bushing Type	Q1
Cap Screws (No.)	3
Bore Type	Inch

General Specifications

UPC	662289133833
Weight	4.15 LB
Packaged Length	4.13 IN
Packaged Width	4.13 IN
Packaged Height	2.50 IN
HTC	8483.90.8080
Country of Origin	Mexico
