• Lifetime Warranty - If this bushing ever fails Browning will replace it Free of charge.
• Solid Flange and Double Split Barrel - Assures better concentricity to the shaft.
• Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive.
• 3/4" per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.

Technical Specifications

Keyseat	3/8 x 3/16
Model Name	P2-P3_Type1_BushingMaster
Material	Sintered Steel or Ductile Iron

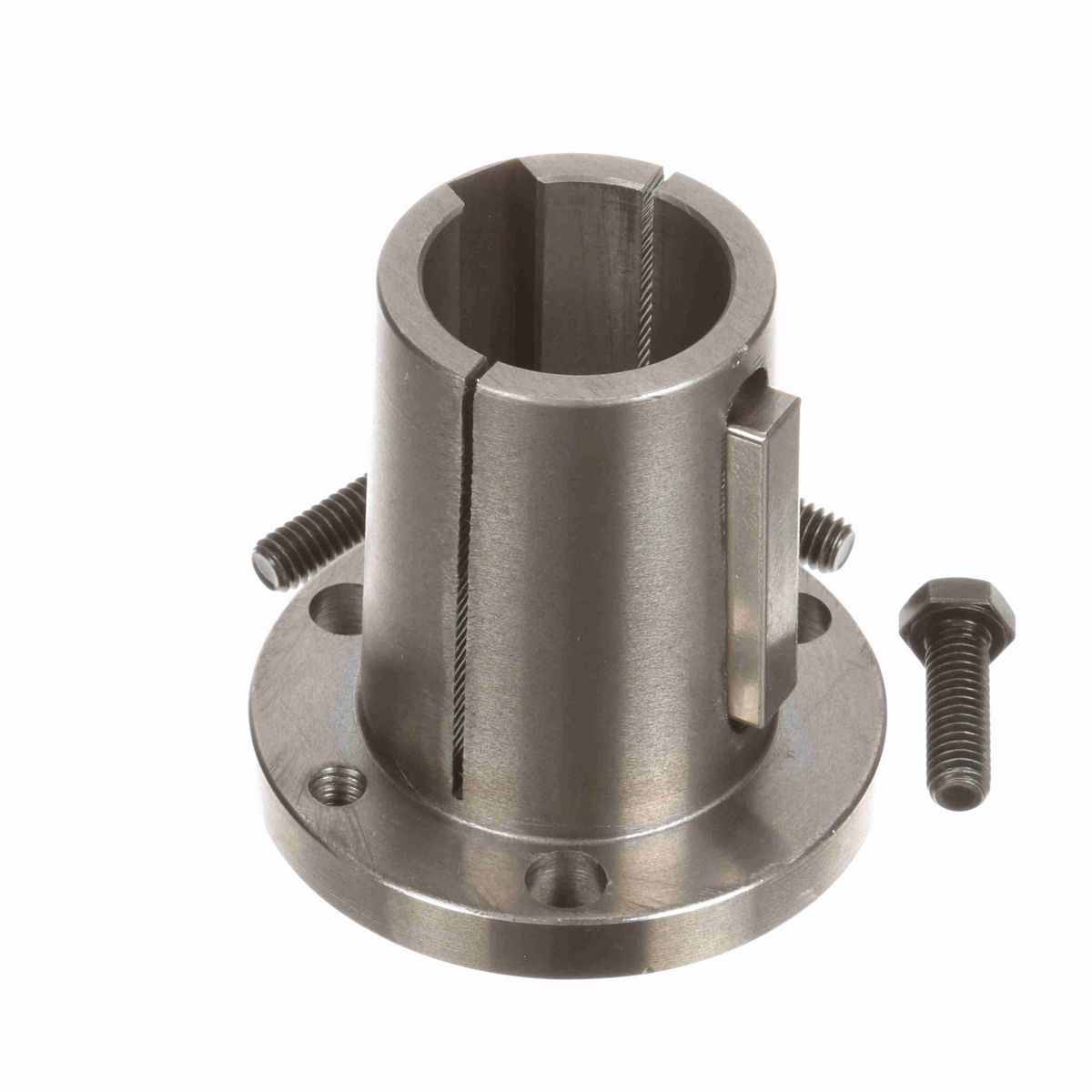

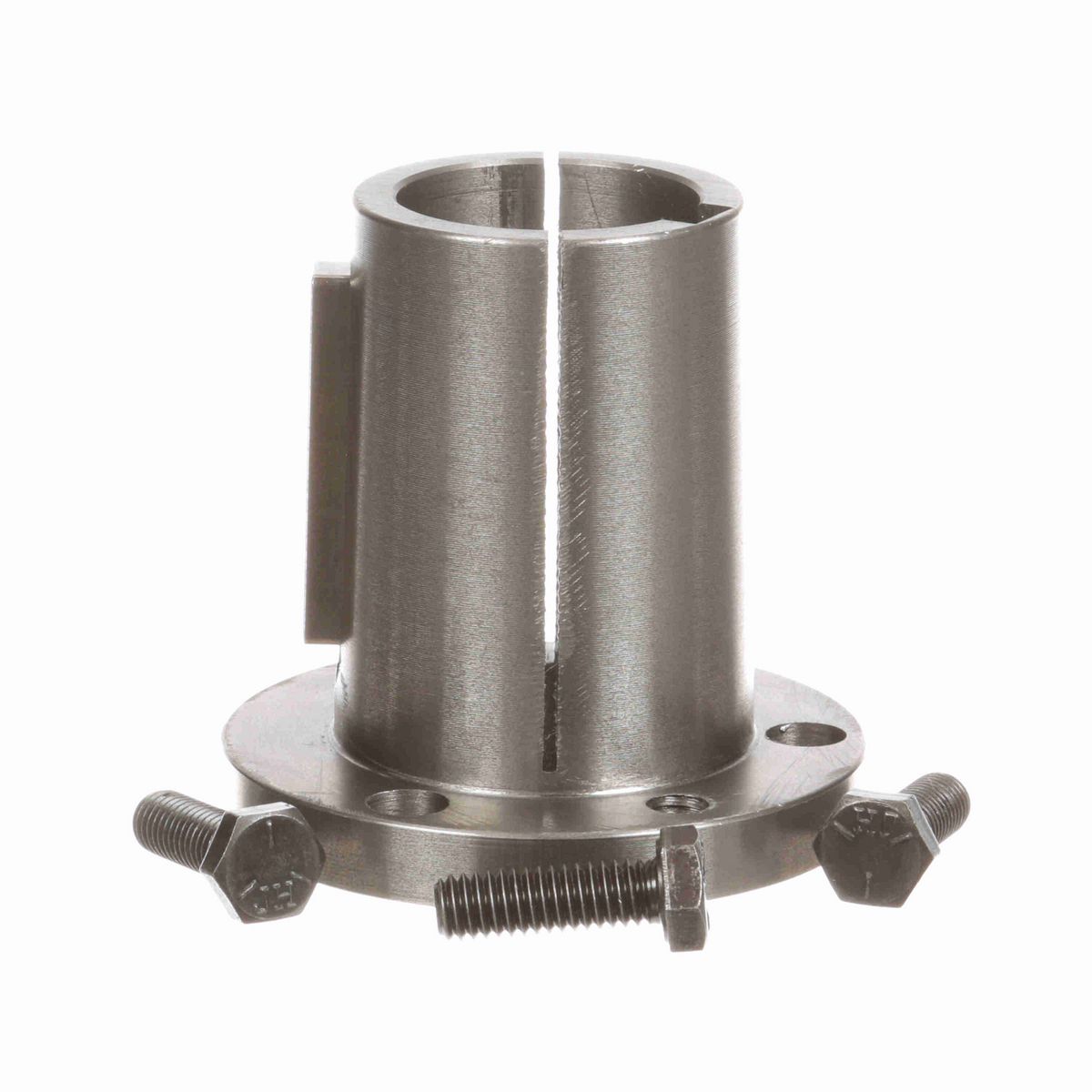

Product Type	Split Taper Bushing
Bushing Type	P2
Total Length (in)	2.9375 in
Compatible Bore Size [Max] (in)	1.375 in
Outside Diameter (in)	3 in
Wrench Torque (in-lb)	192
Bore Size (in)	1.375 in
Cap Screws (Size)	5/16 x 1
Length Through Bore (in)	2.9375 in
Cap Screws (No.)	3
Bore Type	Inch

General Specifications

UPC	662289199464
Weight	1.85 LB
Packaged Length	3.10 IN
Packaged Width	3.20 IN
Packaged Height	1.90 IN
