• Lifetime Warranty - If this bushing ever fails Browning will replace it Free of charge.
• Solid Flange and Double Split Barrel - Assures better concentricity to the shaft.
• Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive.
• 3/4" per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.

Technical Specifications

Total Length (in)	1.9375 in
Model Name	P1_Bushing-Type2_Master
Length Through Bore (in)	1.9375 in

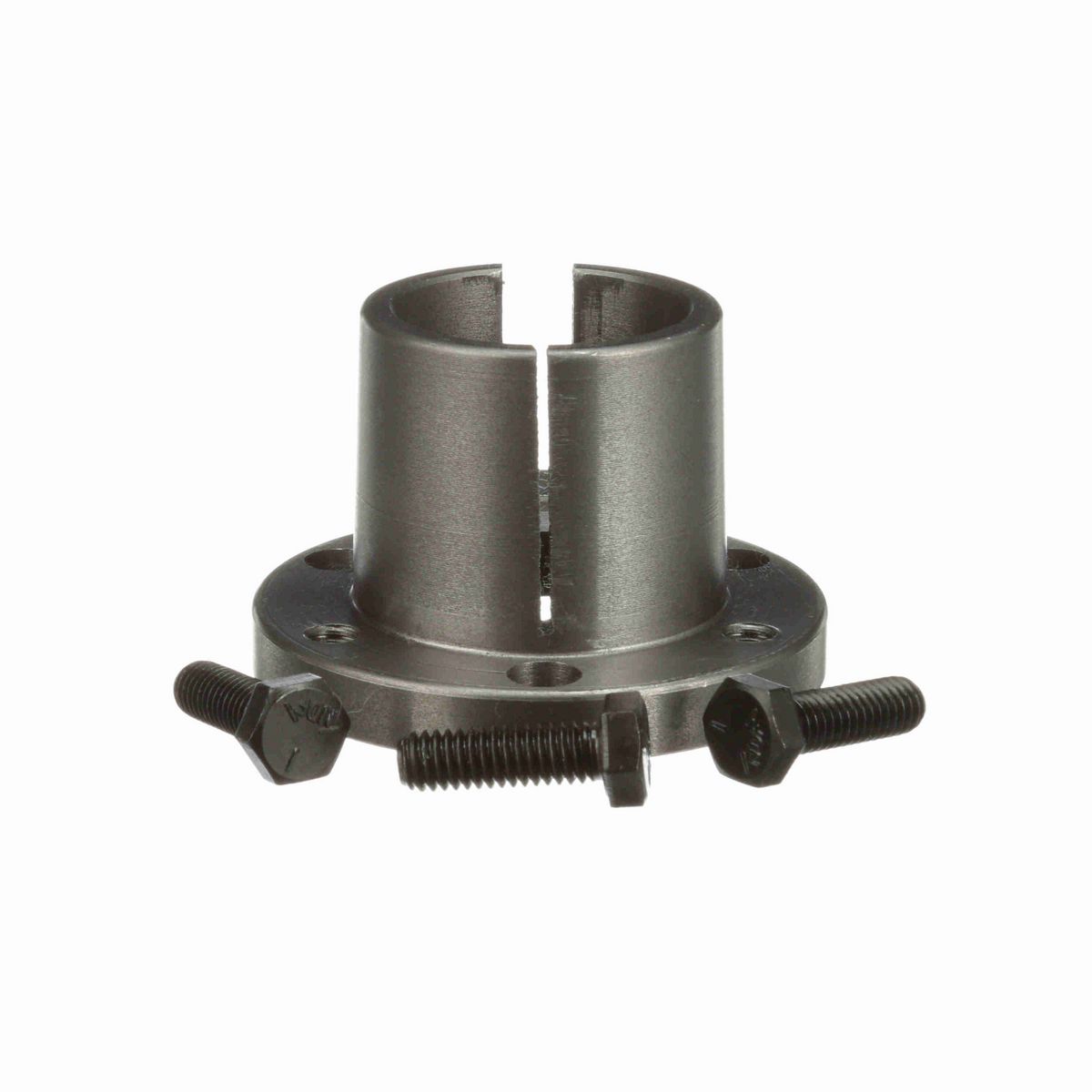

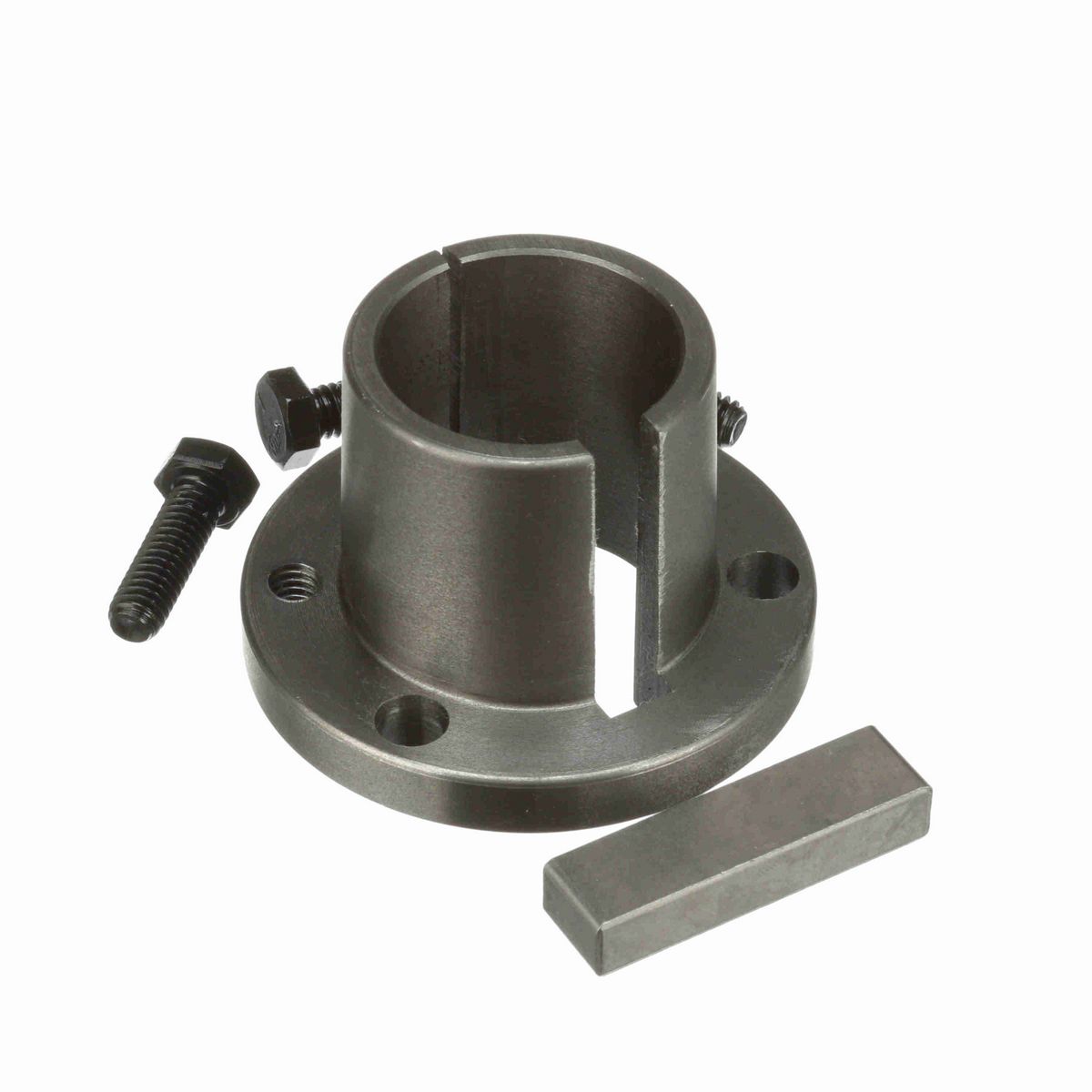

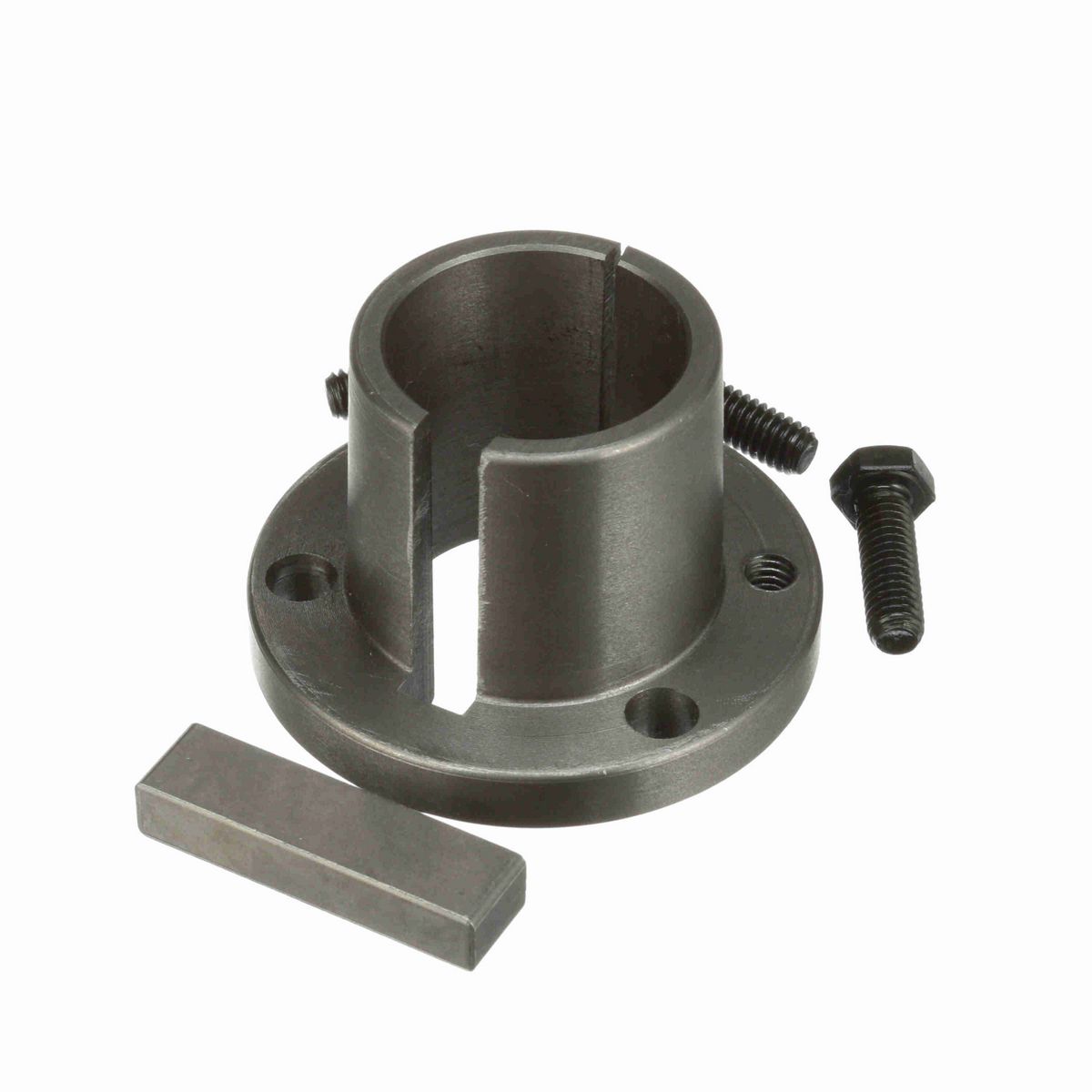

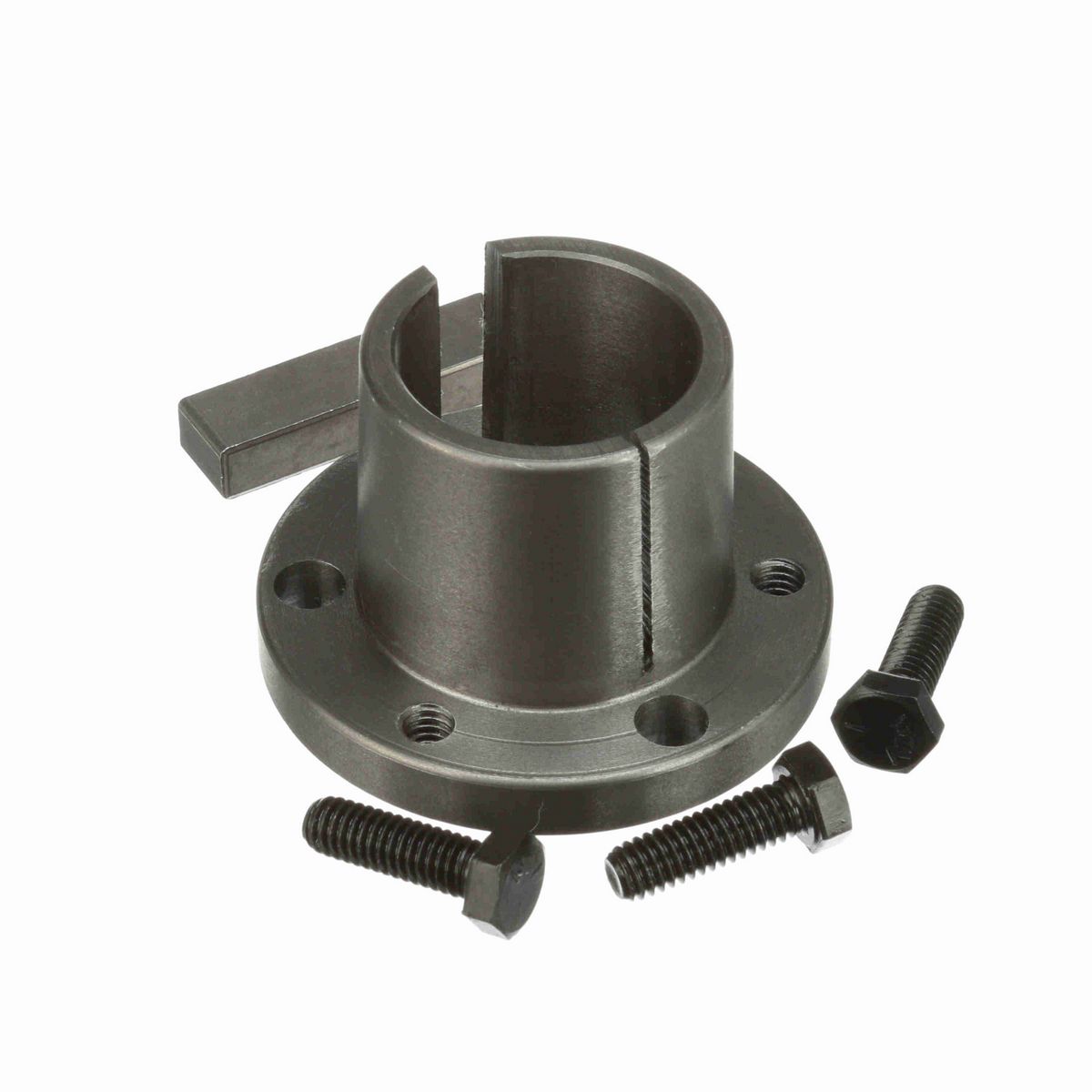

Product Type	Split Taper Bushing
Wrench Torque (in-lb)	192
Outside Diameter (in)	3 in
Cap Screws (Size)	5/16 x 1
Compatible Bore Size [Max] (in)	1.5 in
Keyseat	3/8 x 3/16
Material	Sintered Steel or Ductile Iron
Bushing Type	P1
Bore Size (in)	1.5 in
Bore Type	Inch
Cap Screws (No.)	3

General Specifications

UPC	662289179374
Weight	1.07 LB
Packaged Length	3.20 IN
Packaged Width	3.20 IN
Packaged Height	2.00 IN
