• Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
• 3/4"/ft. Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.

Technical Specifications

Total Length (in)	8.14 in
Outside Diameter (in)	10 in
Bore Type	Inch

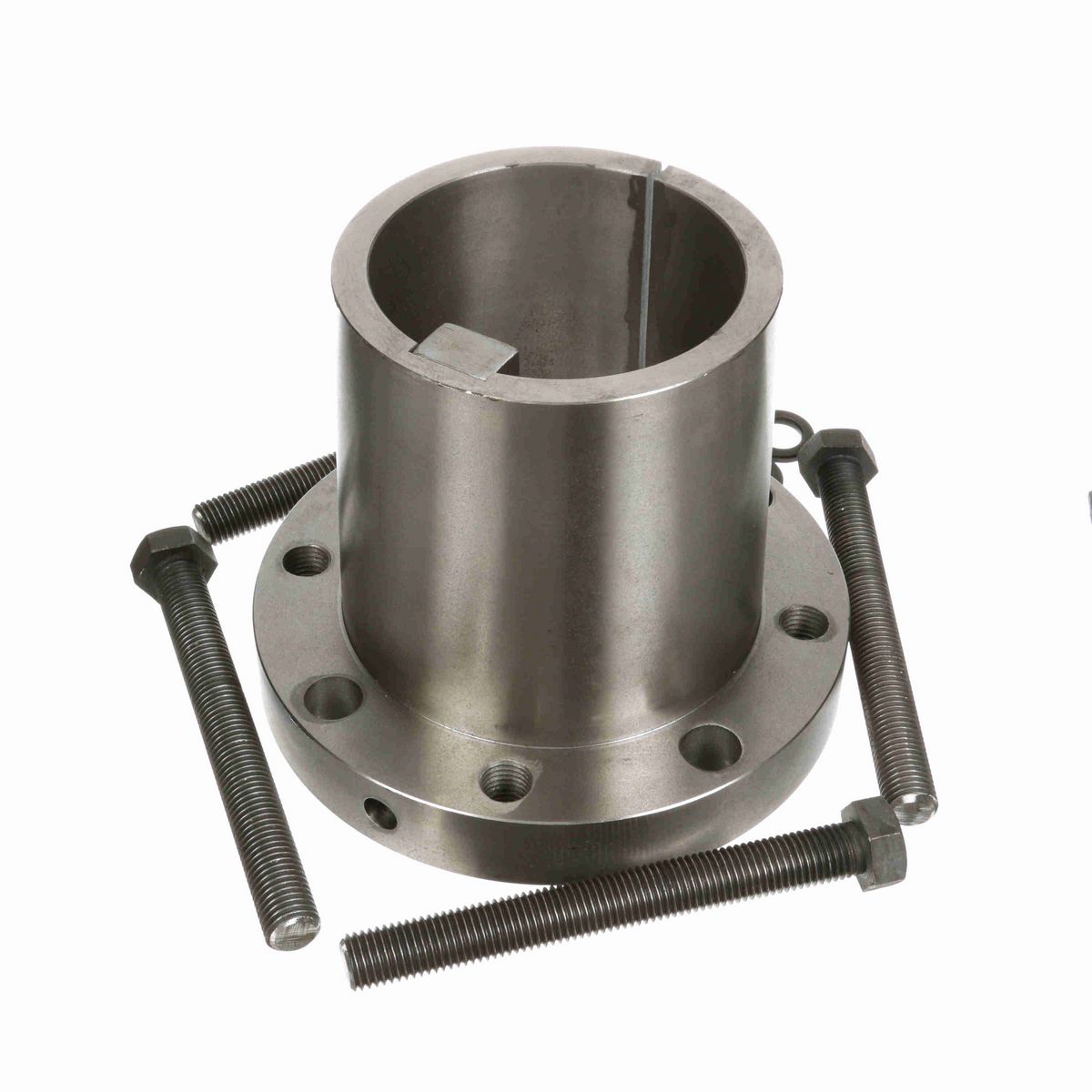

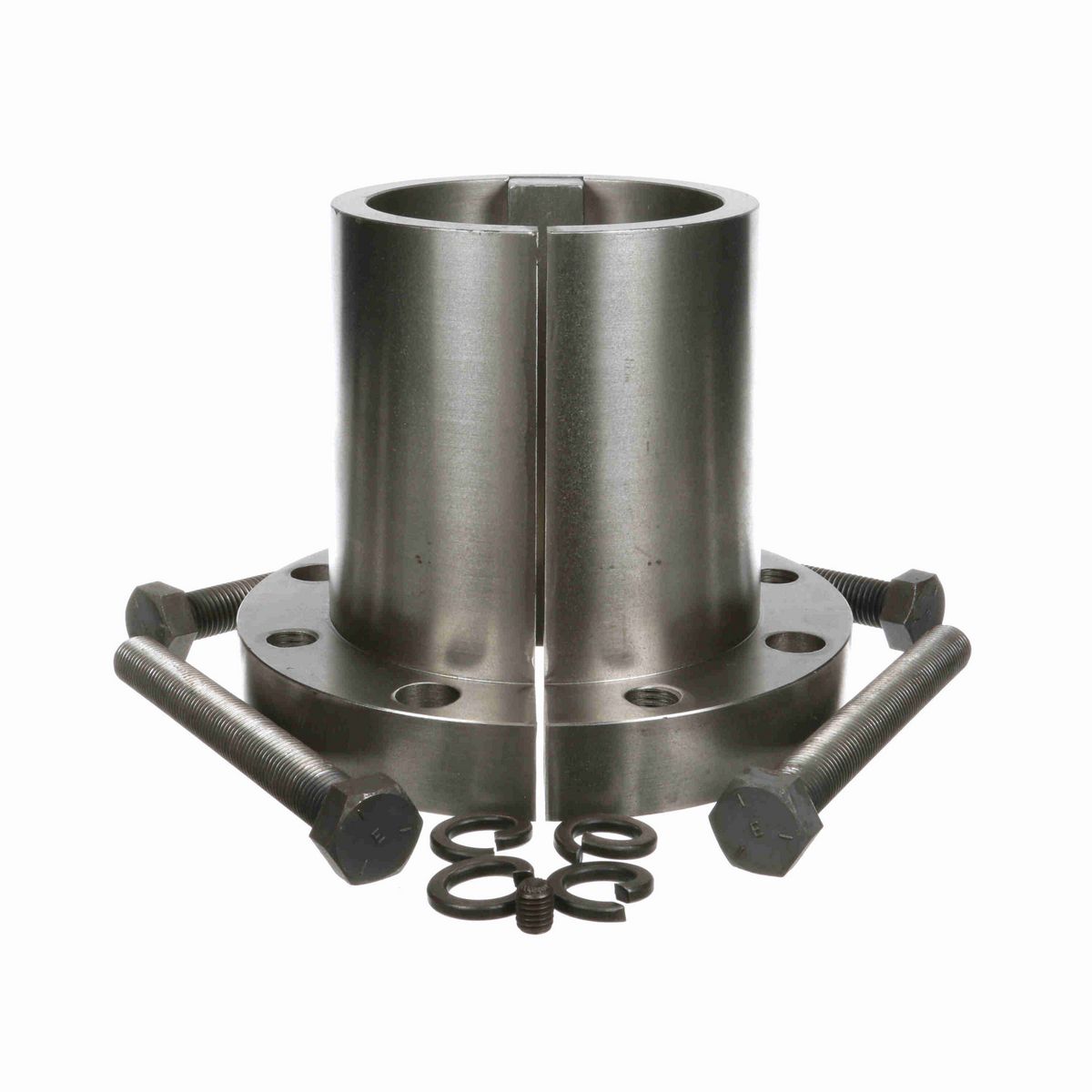

Product Type	Q-D Bushing
Keyway	1 1/4 x 5/8
Cap Screws (No.)	4
Wrench Torque (ft.-lbs.)	300
Bushing Type	N
Cap Screws (Size)	7/8-9 x 8
Length Through Bore (in)	8.14 in
Compatible Bore Size [Max] (in)	5.5 in
Torque Capacity (in-lb)	150,000
Mounting Type	Conventional
Cap Screws (Bolt Circle)	8.5
Model Name	QD-N_Bushing_Master
Bore Size (in)	5.5 in
Material	Gray Iron - G3033
Barrel Length	6.64 in
Flange Thickness	1.5 in
Barrel Diameter	7 in

General Specifications

UPC	662289381760
Weight	49.33 LB
Packaged Length	12.10 IN
Packaged Width	10.60 IN
Packaged Height	10.00 IN
HTC	8483.90.8080
Country of Origin	Mexico
