• Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
• 3/4"/ft. Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.

Technical Specifications

Length Through Bore (in)	0.89 in
Bore Type	Inch
Torque Capacity (in-lb)	1,000
Cap Screws (Bolt Circle)	1.65625
Total Length (in)	0.89 in
Cap Screws (No.)	3
Mounting Type	Conventional
Cap Screws (Size)	10-24 x 1
Compatible Bore Size [Max] (in)	1 in
Bushing Type	JA

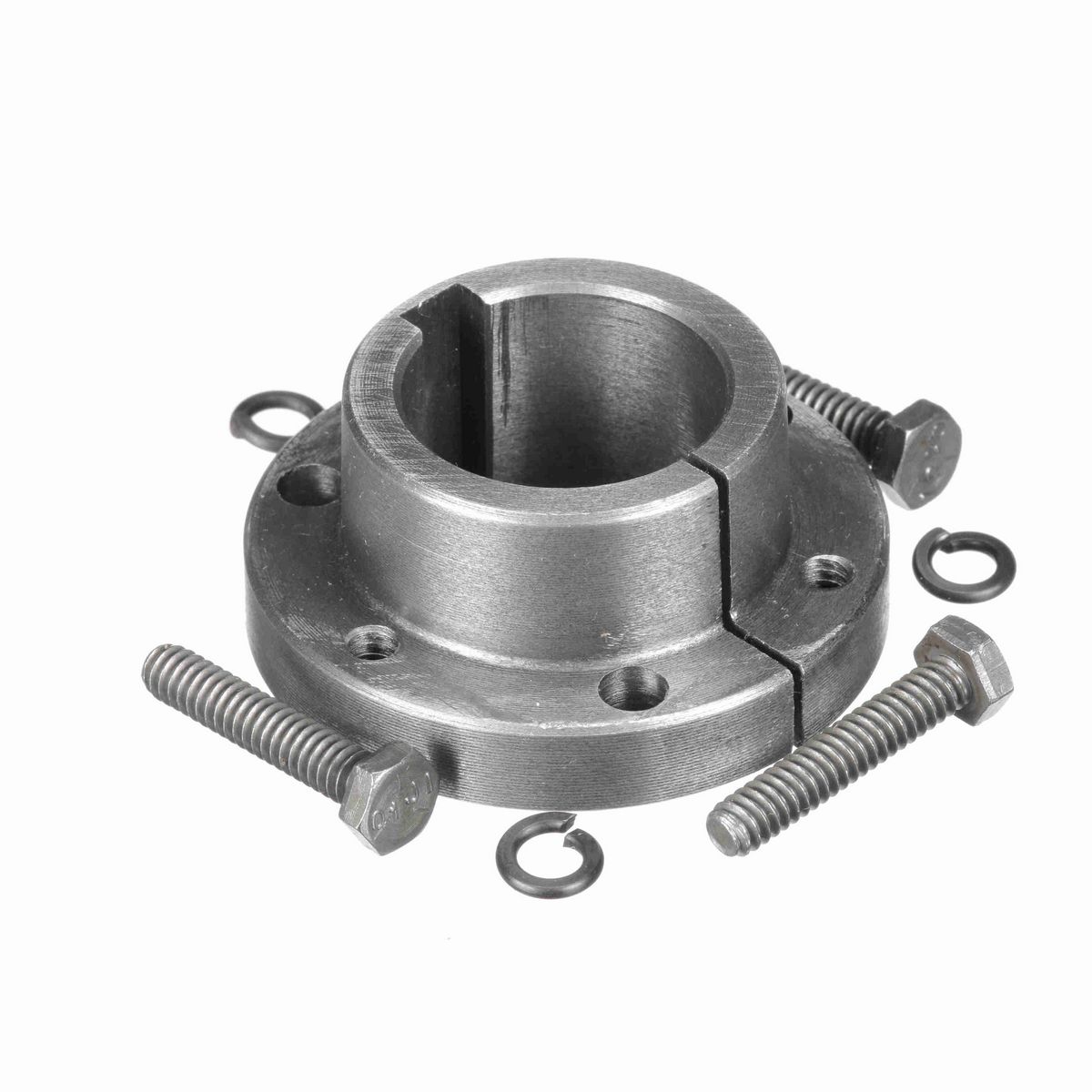

Product Type	Q-D Bushing
Model Name	QD-JA_Bushing_Master
Wrench Torque (ft.-lbs.)	6
Outside Diameter (in)	2 in
Keyway	1/4 x 1/8
Bore Size (in)	1 in
Material	Steel
Flange Thickness	0.33 in
Barrel Length	0.56 in
Barrel Diameter	1.375 in

General Specifications

UPC	662289334513
Weight	0.34 LB
Packaged Length	3.20 IN
Packaged Width	3.30 IN
Packaged Height	1.40 IN
