• Lifetime Warranty - If this bushing ever fails Browning will replace it Free of charge.
• Solid Flange and Double Split Barrel - Assures better concentricity to the shaft.
• 3/4" per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product.

Technical Specifications

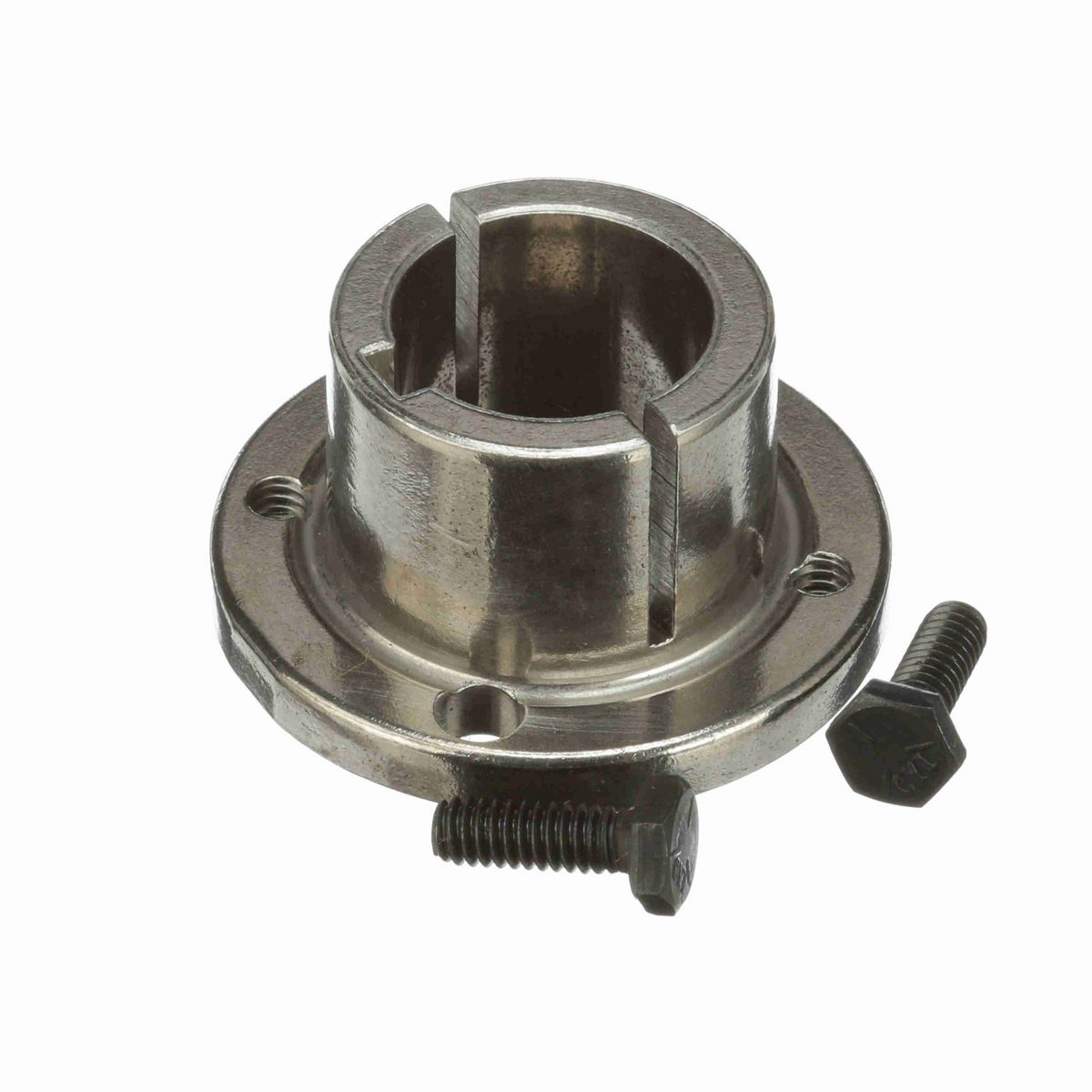

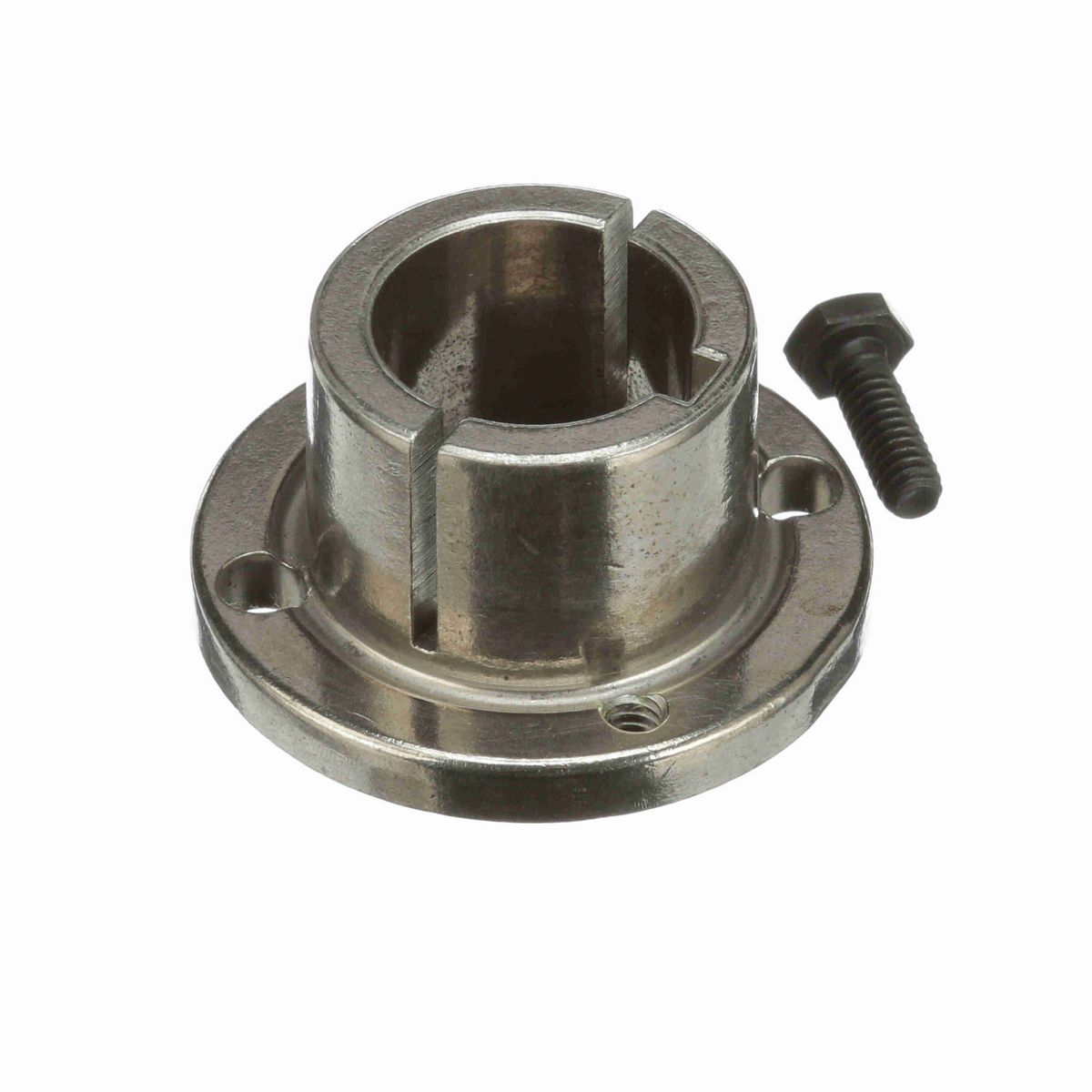

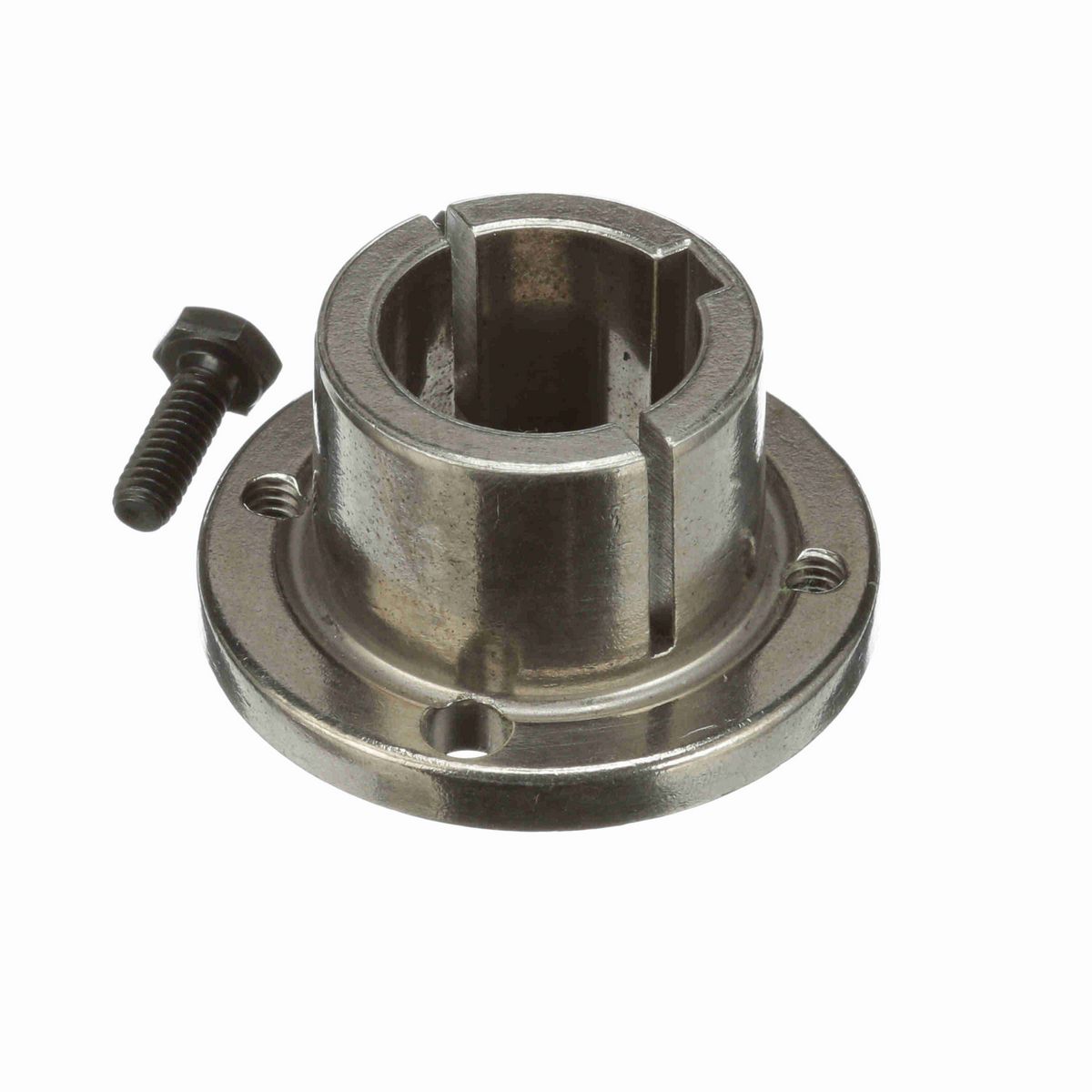

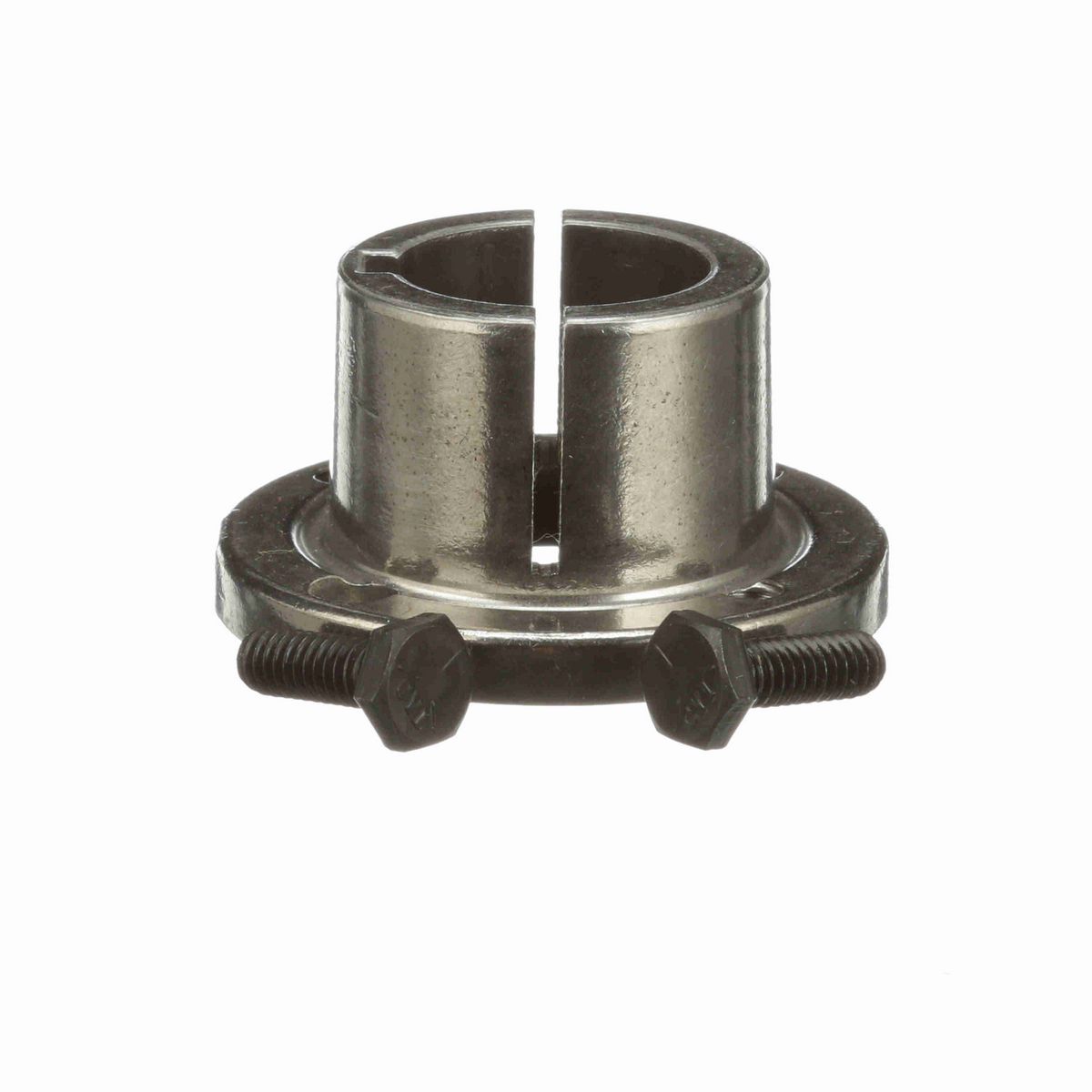

Product Type	Split Taper Bushing
Total Length (in)	1.25 in
Keyseat	1/4 x 1/8
Length Through Bore (in)	1.25 in
Compatible Bore Size [Max] (in)	1.125 in
Bore Size (in)	1.125 in
Outside Diameter (in)	2.5 in
Cap Screws (Size)	1/4 x 3/4
Wrench Torque (in-lb)	95
Bushing Type	H
Material	Sintered Steel or Ductile Iron
Model Name	H-Bushing_1_Master
Bore Type	Inch
Cap Screws (No.)	2

General Specifications

UPC	662289199082
Weight	0.54 LB
Packaged Length	2.70 IN
Packaged Width	2.70 IN
Packaged Height	1.50 IN
HTC	8483.90.8080
Country of Origin	United States of America
